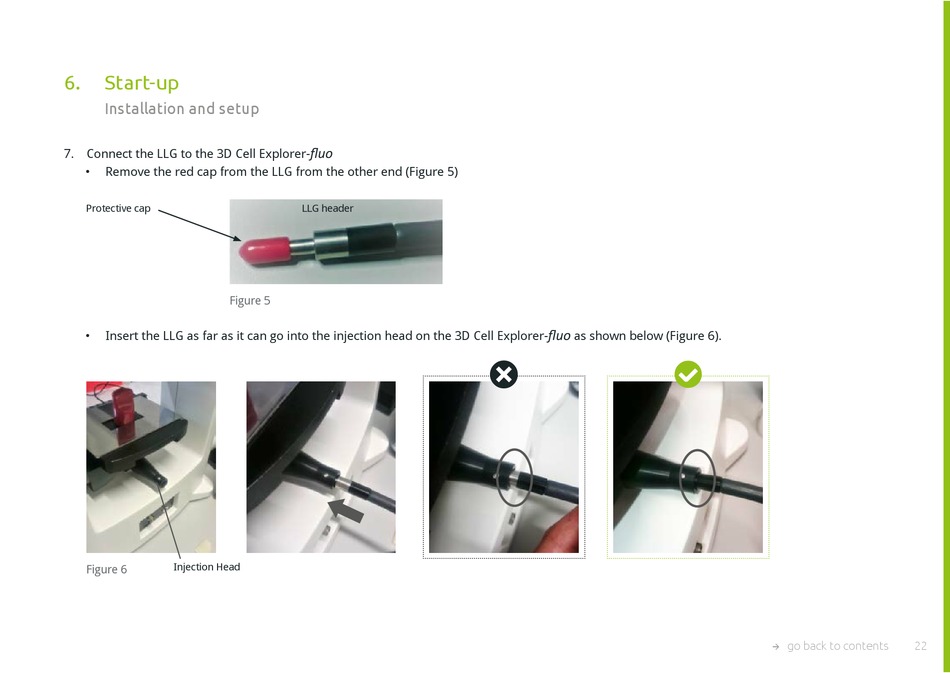

Nanolive 3D Cell Explorer-fluo User Manual page 22

6. Start-up
Installation and setup
7. Connect the LLG to the 3D Cell Explorer-
• Remove the red cap from the LLG from the other end (Figure 5)
Protective cap
Figure 5
• Insert the LLG as far as it can go into the injection head on the 3D Cell Explorer-
Injection Head
Figure 6
fluo
LLG header
fluo
as shown below (Figure 6).
✖ ✔
