Nanolive 3D Cell Explorer-fluo User Manual page 23

6. Start-up
Installation and setup
• Use an Allen key n°1.5 to secure the LLG in place.
• Bring the 3 screws first in mechanical contact without effort one after the other. Gently apply some force to keep the LLG in place one after
the other. Please be aware that any damage made to the LLG might lead to irreversible loss of coupled power brought to the sample (Figure 7).

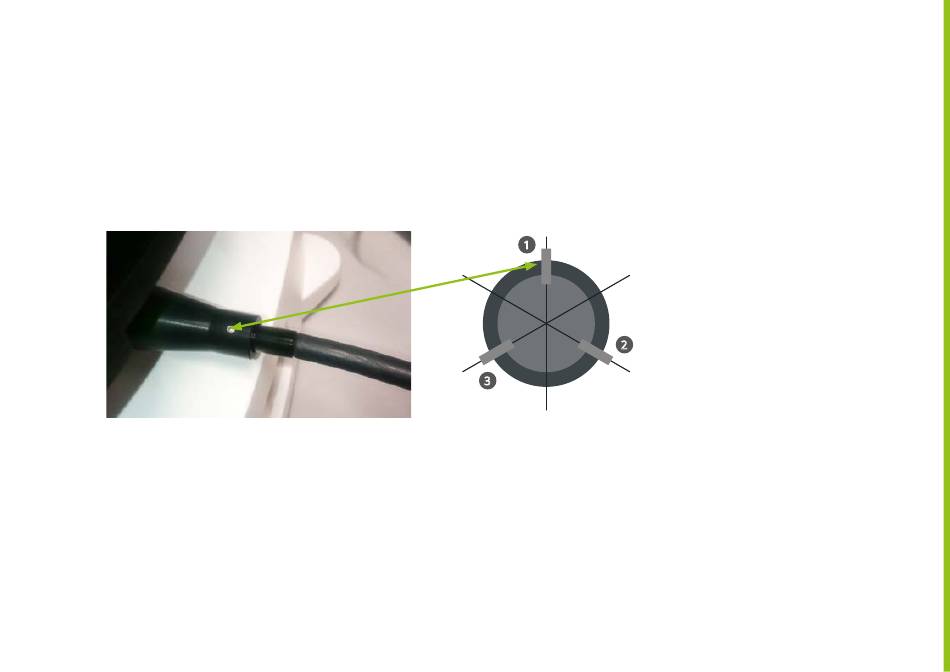

Figure 7
1
2
3
go back to contents 23
