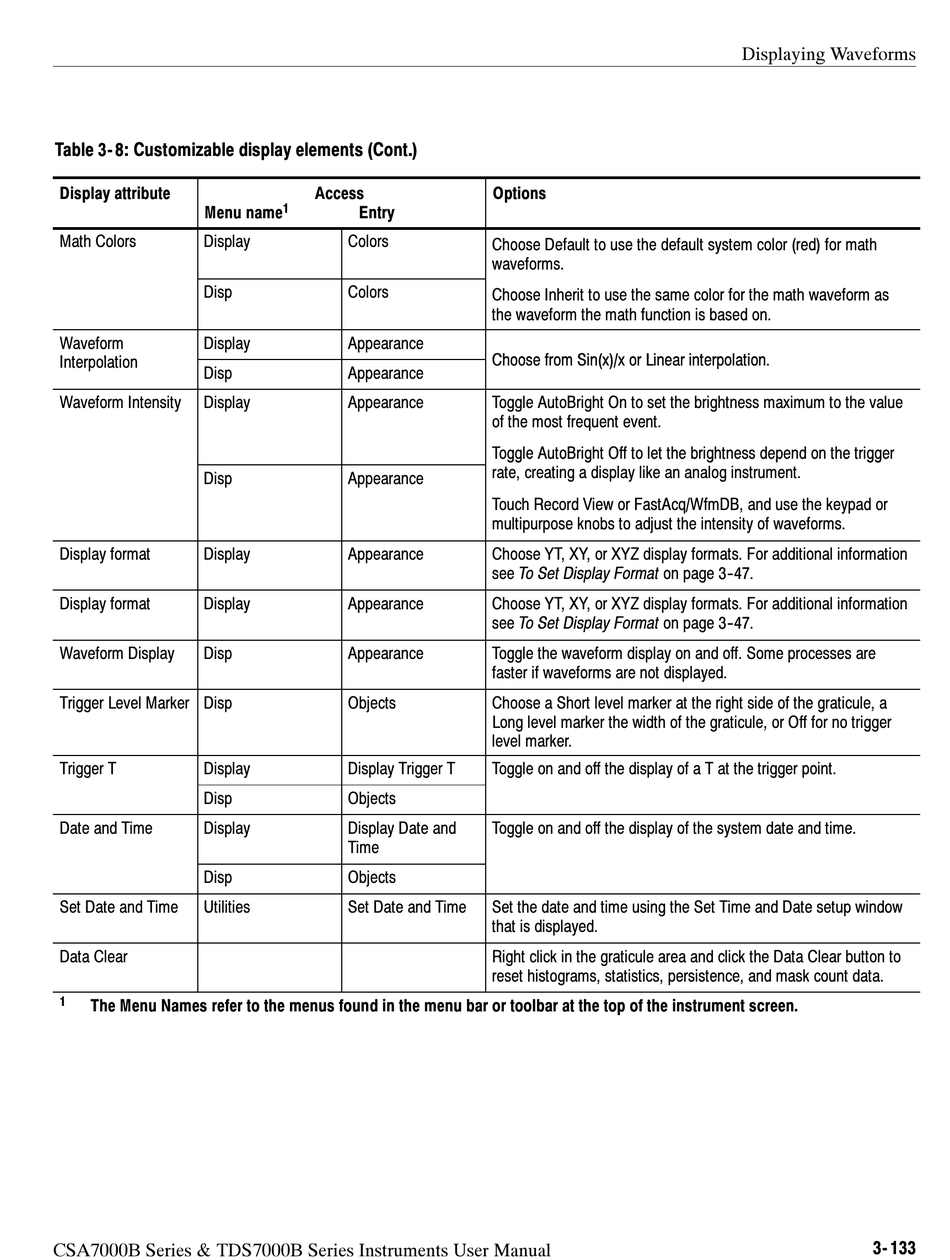

Table 3- 8: Customizable display elements (Cont.)
Display attribute
Menu name
Math Colors Display
Disp
Waveform Display
Interpolation I t l ti
Disp
Waveform Intensity Display
Disp
Display format Display
Display format Display
Waveform Display Disp
Trigger Level Marker Disp
Trigger T Display
Disp
Date and Time Display
Disp
Set Date and Time Utilities
Data Clear
1
The Menu Names refer to the menus found in the menu bar or toolbar at the top of the instrument screen.
CSA7000B Series & TDS7000B Series Instruments User Manual
Access
1
Entry
Colors
Colors
Appearance
Appearance
Appearance
Appearance
Appearance
Appearance
Appearance
Objects
Display Trigger T
Objects
Display Date and
Time
Objects
Set Date and Time
Options
Choose Default to use the default system color (red) for math
waveforms.
Choose Inherit to use the same color for the math waveform as
the waveform the math function is based on.
Choose from Sin(x)/x or Linear interpolation. Choose from Sin(x)/x or Linear interpolation
Toggle AutoBright On to set the brightness maximum to the value
of the most frequent event.
Toggle AutoBright Off to let the brightness depend on the trigger Toggle AutoBright Off to let the brightness depend on the trigger
rate, creating a display like an analog instrument.
Touch Record View or FastAcq/WfmDB, and use the keypad or
multipurpose knobs to adjust the intensity of waveforms.
Choose YT, XY, or XYZ display formats. For additional information
see To Set Display Format on page 3- - 47.
Choose YT, XY, or XYZ display formats. For additional information
see To Set Display Format on page 3- - 47.
Toggle the waveform display on and off. Some processes are
faster if waveforms are not displayed.
Choose a Short level marker at the right side of the graticule, a
Long level marker the width of the graticule, or Off for no trigger
level marker.
Toggle on and off the display of a T at the trigger point.
Toggle on and off the display of the system date and time.
Set the date and time using the Set Time and Date setup window
that is displayed.
Right click in the graticule area and click the Data Clear button to
reset histograms, statistics, persistence, and mask count data.
Displaying Waveforms
3- 133
