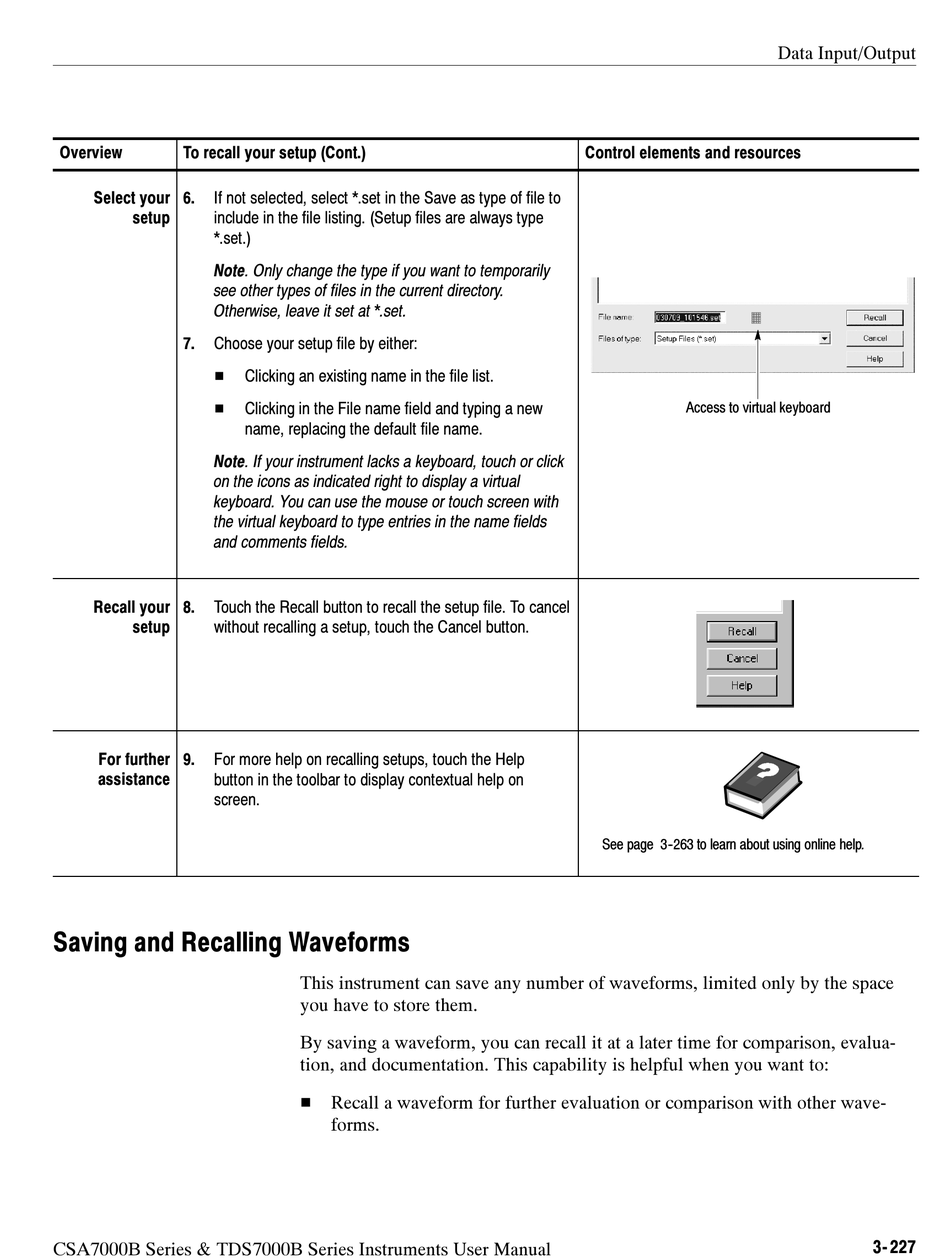

Overview To recall your setup (Cont.)
Select your 6. If not selected, select *.set in the Save as type of file to
setup include in the file listing. (Setup files are always type
*.set.)
Note. Only change the type if you want to temporarily
see other types of files in the current directory.
Otherwise, leave it set at *.set.
7. Choose your setup file by either:
H
H
Note. If your instrument lacks a keyboard, touch or click
on the icons as indicated right to display a virtual
keyboard. You can use the mouse or touch screen with
the virtual keyboard to type entries in the name fields
and comments fields.
Recall your 8. Touch the Recall button to recall the setup file. To cancel
setup
without recalling a setup, touch the Cancel button.
For further 9. For more help on recalling setups, touch the Help
assistance
button in the toolbar to display contextual help on
screen.

Saving and Recalling Waveforms

CSA7000B Series & TDS7000B Series Instruments User Manual
Clicking an existing name in the file list.
Clicking in the File name field and typing a new
name, replacing the default file name.
This instrument can save any number of waveforms, limited only by the space
you have to store them.
By saving a waveform, you can recall it at a later time for comparison, evalua-
tion, and documentation. This capability is helpful when you want to:
H Recall a waveform for further evaluation or comparison with other wave-
forms.
Control elements and resources
Access to virtual keyboard
See page 3- - 263 to learn about using online help.
Data Input/Output
3- 227
