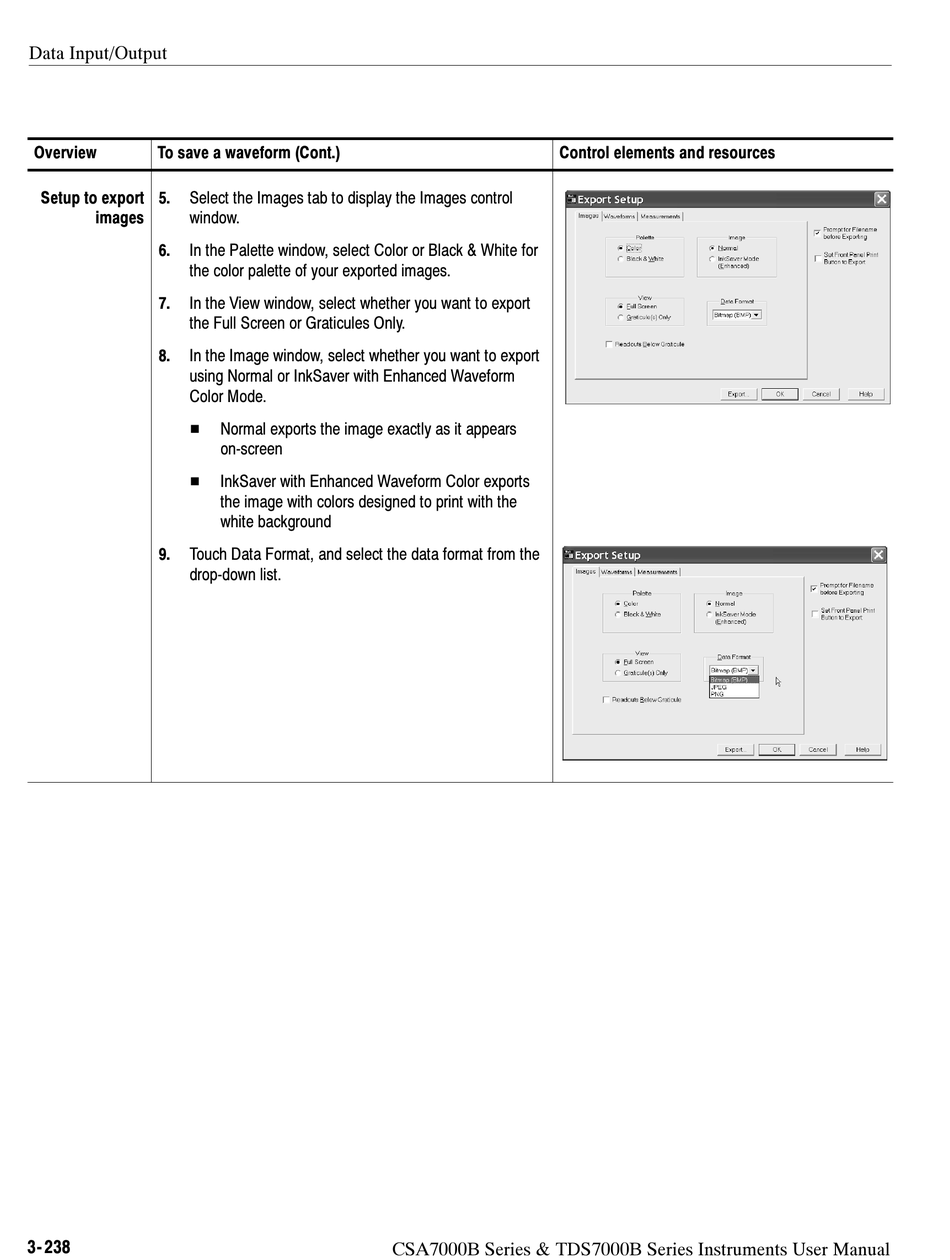

Data Input/Output
Overview
To save a waveform (Cont.)
Setup to export
5.
Select the Images tab to display the Images control
images
window.
6.
In the Palette window, select Color or Black & White for
the color palette of your exported images.
7.
In the View window, select whether you want to export
the Full Screen or Graticules Only.
8.
In the Image window, select whether you want to export
using Normal or InkSaver with Enhanced Waveform
Color Mode.
H
H
9.
Touch Data Format, and select the data format from the
drop-down list.
3- 238
Normal exports the image exactly as it appears
on-screen
InkSaver with Enhanced Waveform Color exports
the image with colors designed to print with the
white background
CSA7000B Series & TDS7000B Series Instruments User Manual
