To Save Your Setup

Overview To save your setup
Prerequisites 1. The instrument must be powered up.
2. Setup the instrument controls as you want them saved
as part of a recallable setup.
For help in making your setup, check the references at
right and other sections in this chapter specific to the
setup you wish to make.
CSA7000B Series & TDS7000B Series Instruments User Manual

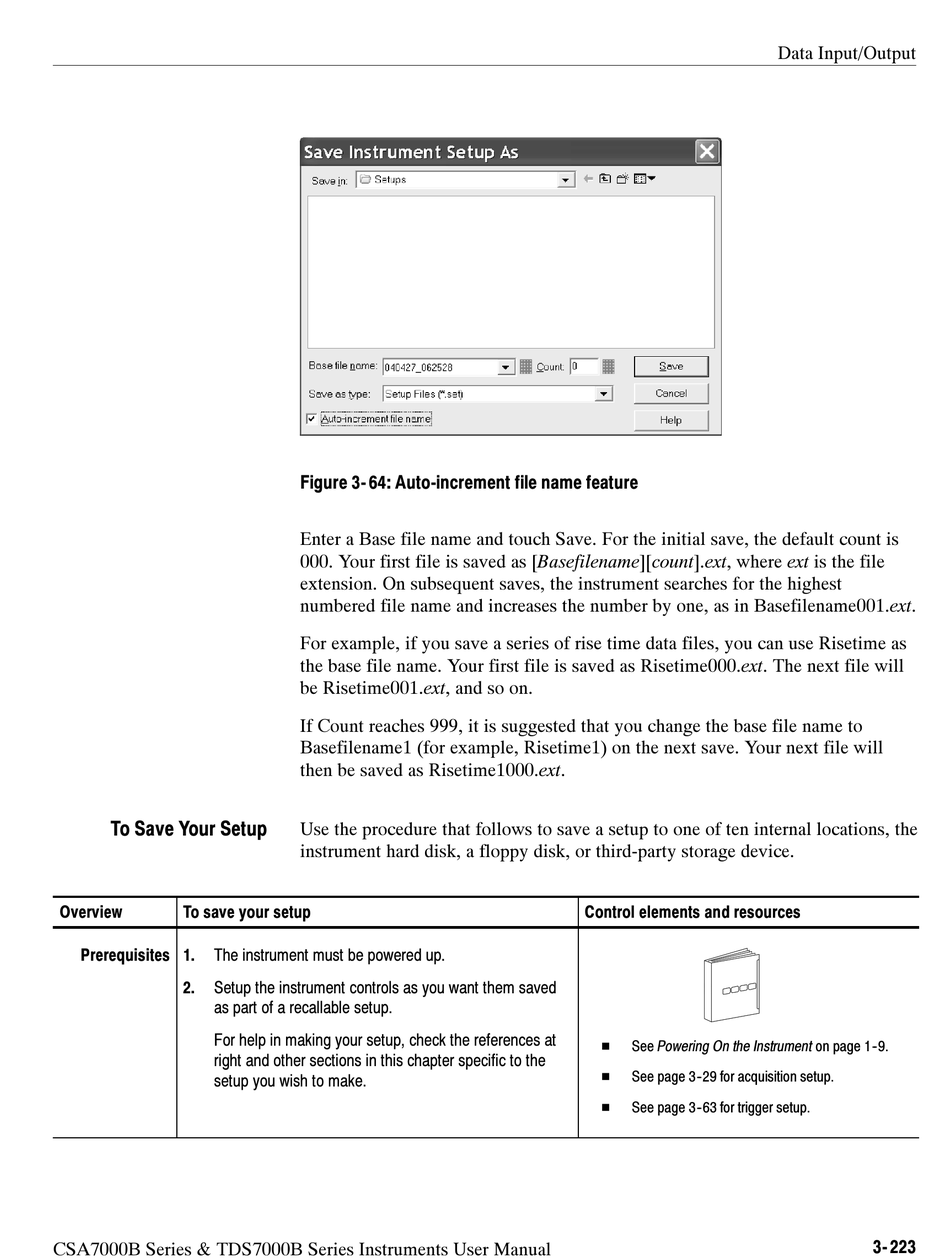

Figure 3- 64: Auto-increment file name feature
Enter a Base file name and touch Save. For the initial save, the default count is
000. Your first file is saved as [Basefilename][count].ext, where ext is the file
extension. On subsequent saves, the instrument searches for the highest
numbered file name and increases the number by one, as in Basefilename001.ext.
For example, if you save a series of rise time data files, you can use Risetime as
the base file name. Your first file is saved as Risetime000.ext. The next file will
be Risetime001.ext, and so on.
If Count reaches 999, it is suggested that you change the base file name to
Basefilename1 (for example, Risetime1) on the next save. Your next file will
then be saved as Risetime1000.ext.
Use the procedure that follows to save a setup to one of ten internal locations, the
instrument hard disk, a floppy disk, or third-party storage device.
Control elements and resources
H
See Powering On the Instrument on page 1- - 9.
H
See page 3- - 29 for acquisition setup.
H
See page 3- - 63 for trigger setup.
