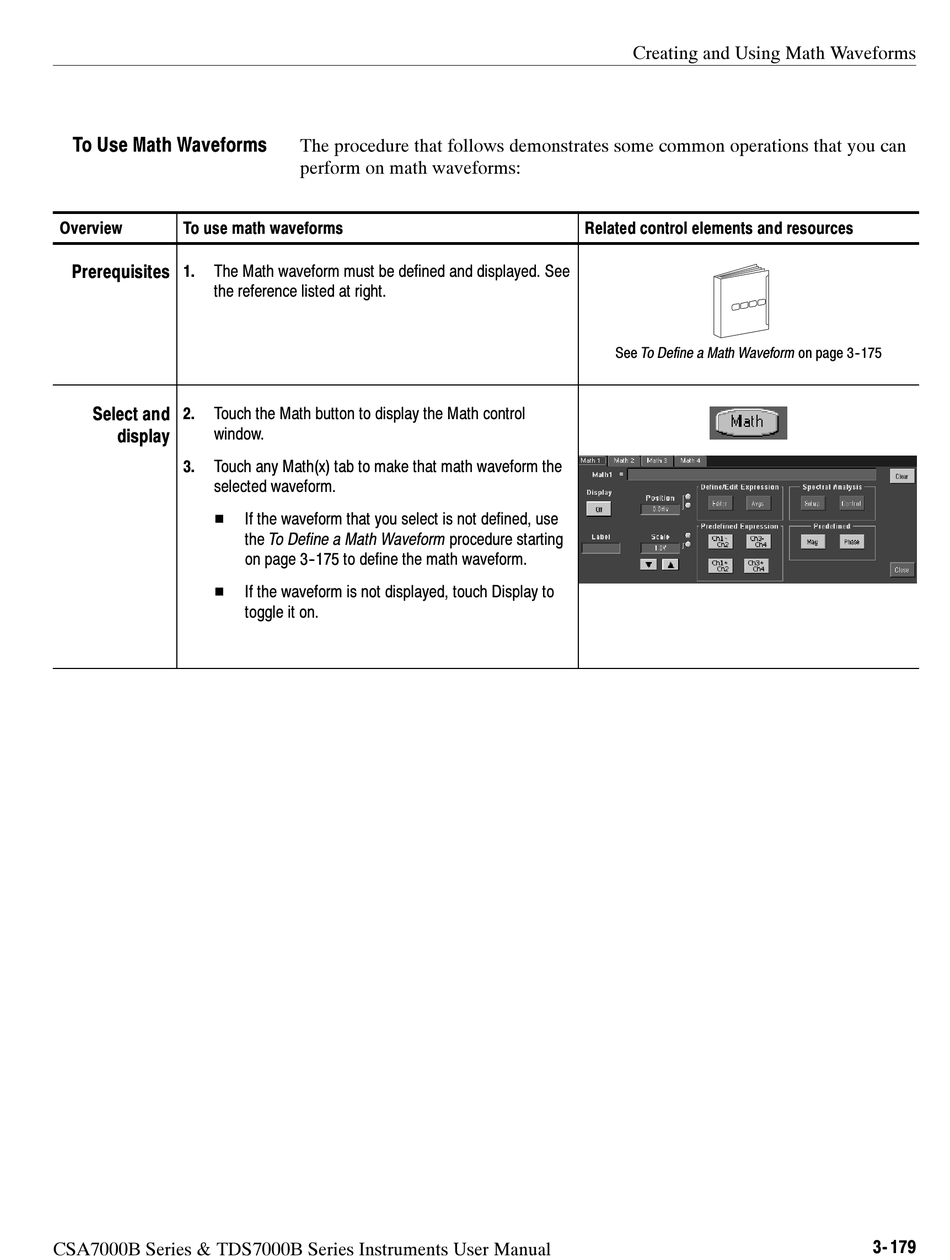

To Use Math Waveforms

Overview To use math waveforms
Prerequisites 1. The Math waveform must be defined and displayed. See
the reference listed at right.
Select and 2. Touch the Math button to display the Math control
window.
display
3. Touch any Math(x) tab to make that math waveform the
selected waveform.
H
H
CSA7000B Series & TDS7000B Series Instruments User Manual
The procedure that follows demonstrates some common operations that you can
perform on math waveforms:
If the waveform that you select is not defined, use
the To Define a Math Waveform procedure starting
on page 3- - 175 to define the math waveform.
If the waveform is not displayed, touch Display to
toggle it on.
Creating and Using Math Waveforms
Related control elements and resources
See To Define a Math Waveform on page 3- - 175
3- 179
