Triggering

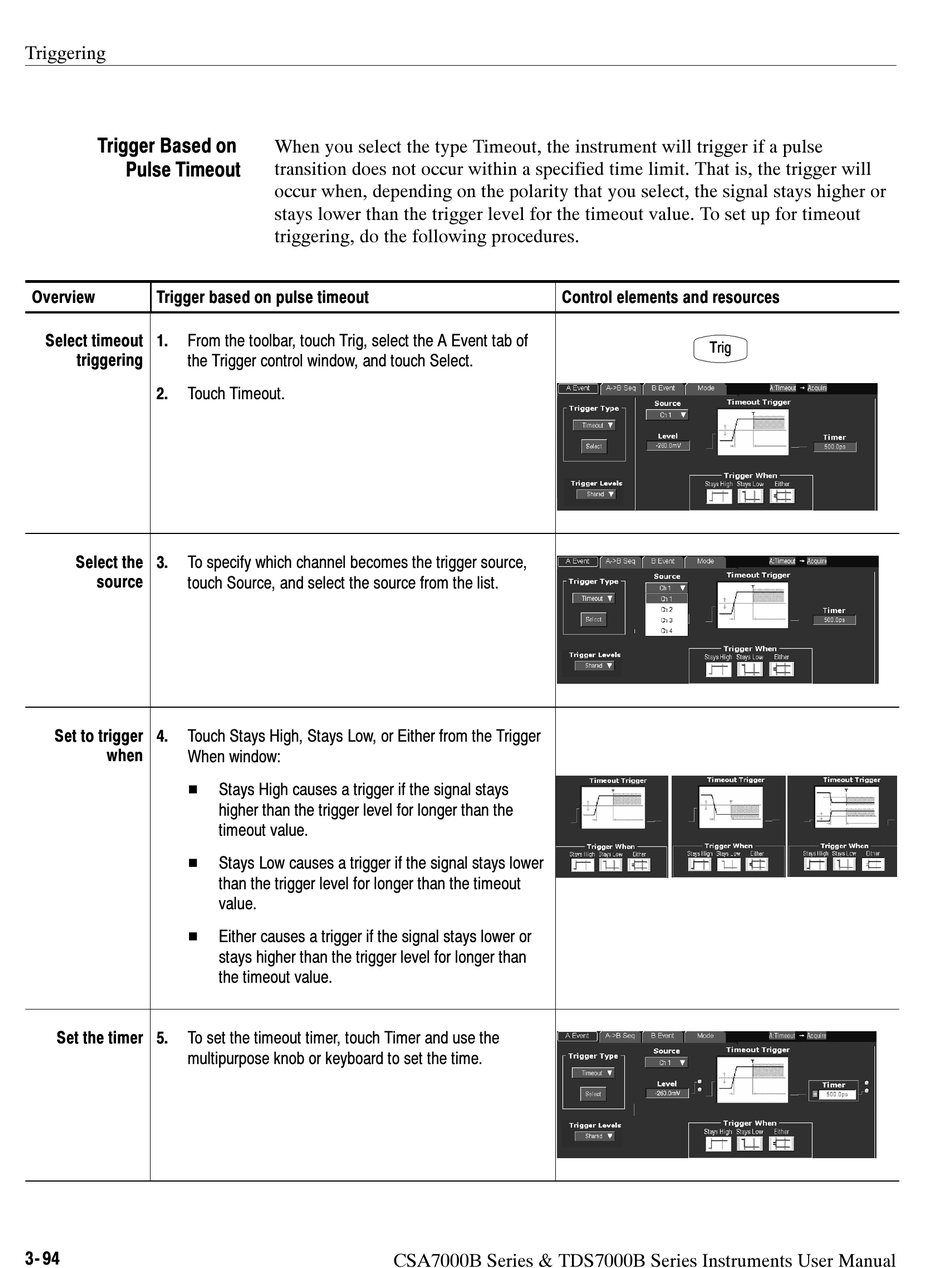

Trigger Based on

Pulse Timeout

Overview Trigger based on pulse timeout
Select timeout 1. From the toolbar, touch Trig, select the A Event tab of
triggering
the Trigger control window, and touch Select.
2. Touch Timeout.
Select the 3. To specify which channel becomes the trigger source,
source
touch Source, and select the source from the list.
Set to trigger 4. Touch Stays High, Stays Low, or Either from the Trigger
when
When window:
H
H
H
Set the timer 5. To set the timeout timer, touch Timer and use the
multipurpose knob or keyboard to set the time.
3- 94
When you select the type Timeout, the instrument will trigger if a pulse
transition does not occur within a specified time limit. That is, the trigger will
occur when, depending on the polarity that you select, the signal stays higher or
stays lower than the trigger level for the timeout value. To set up for timeout
triggering, do the following procedures.
Stays High causes a trigger if the signal stays
higher than the trigger level for longer than the
timeout value.
Stays Low causes a trigger if the signal stays lower
than the trigger level for longer than the timeout
value.
Either causes a trigger if the signal stays lower or
stays higher than the trigger level for longer than
the timeout value.
CSA7000B Series & TDS7000B Series Instruments User Manual
Control elements and resources
