Framing and Clearances

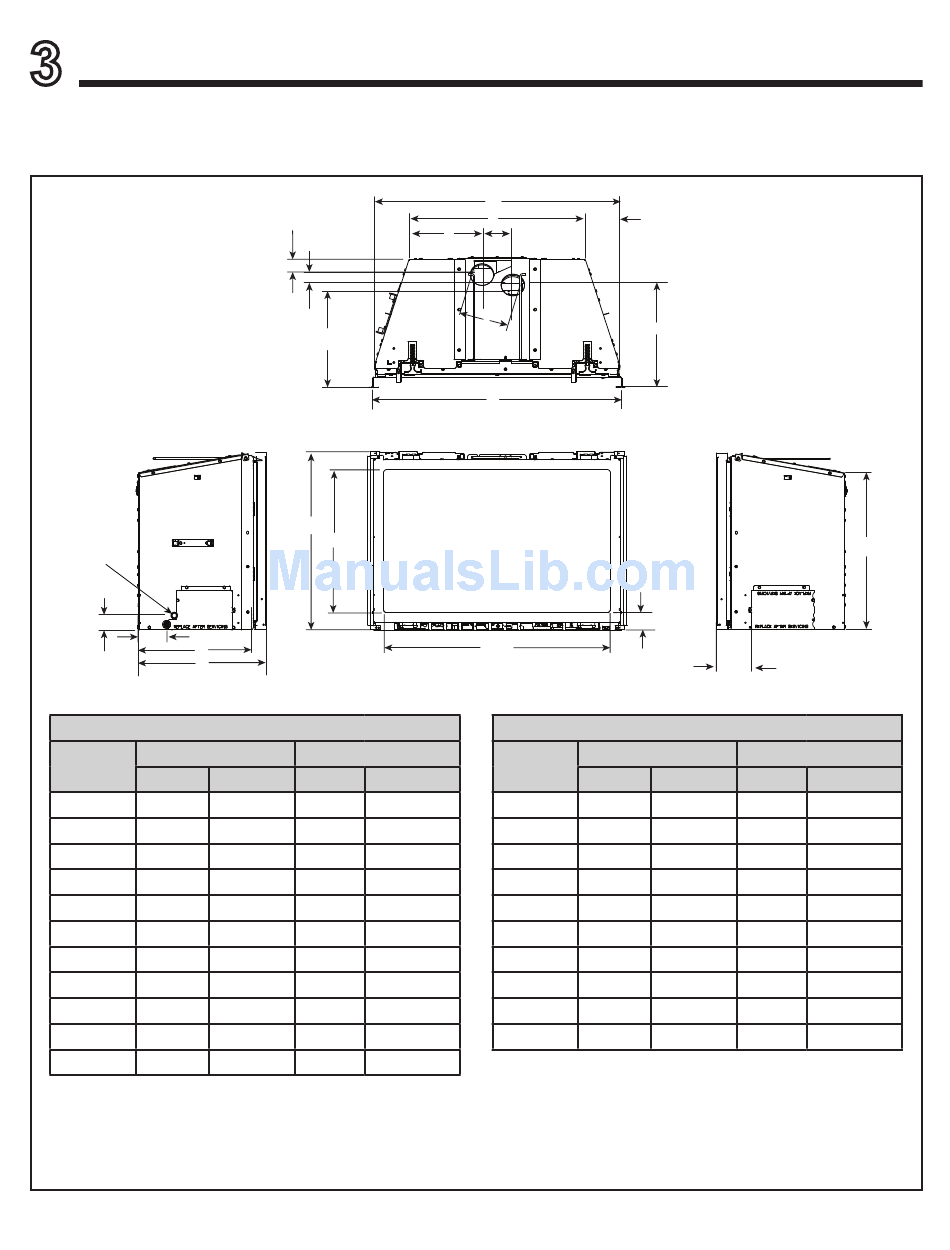

A. Appliance/Decorative Front Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 4.
GAS
ACCESS
L
M
N
O
MODEL DIMENSIONS
QFI35FB-IFT
Location
Inches
A 33-13/16
B 25
C 10-11/16
D 3-11/16
E 4-3/8
F* 14-3/4
G 6-3/4
H* 34-5/8
I* 13-3/8
J 1-7/8
K 1-5/16
*Dimensions H, O, F and I are measured to the surround brackets.
Note: Location N on Figure 4.1 is measuring the appliance depth, for installation depth reference Location O. See
also Figure 4.2.
Figure 3.1 Appliance Dimensions
6
J
K
I
P
Q
QFI30FB-IFT
Millimeters Inches Millimeters
859 29-3/8
635 21
271 8-11/16
94 3-11/16
111 4-1/4
375 13-1/4
172 6-3/4
880 30
340 11-7/8
48 1-7/8
33 1-5/16
Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18
