Quadra-Fire QFI30FB-IFT Homeowner And Installation Manual page 30

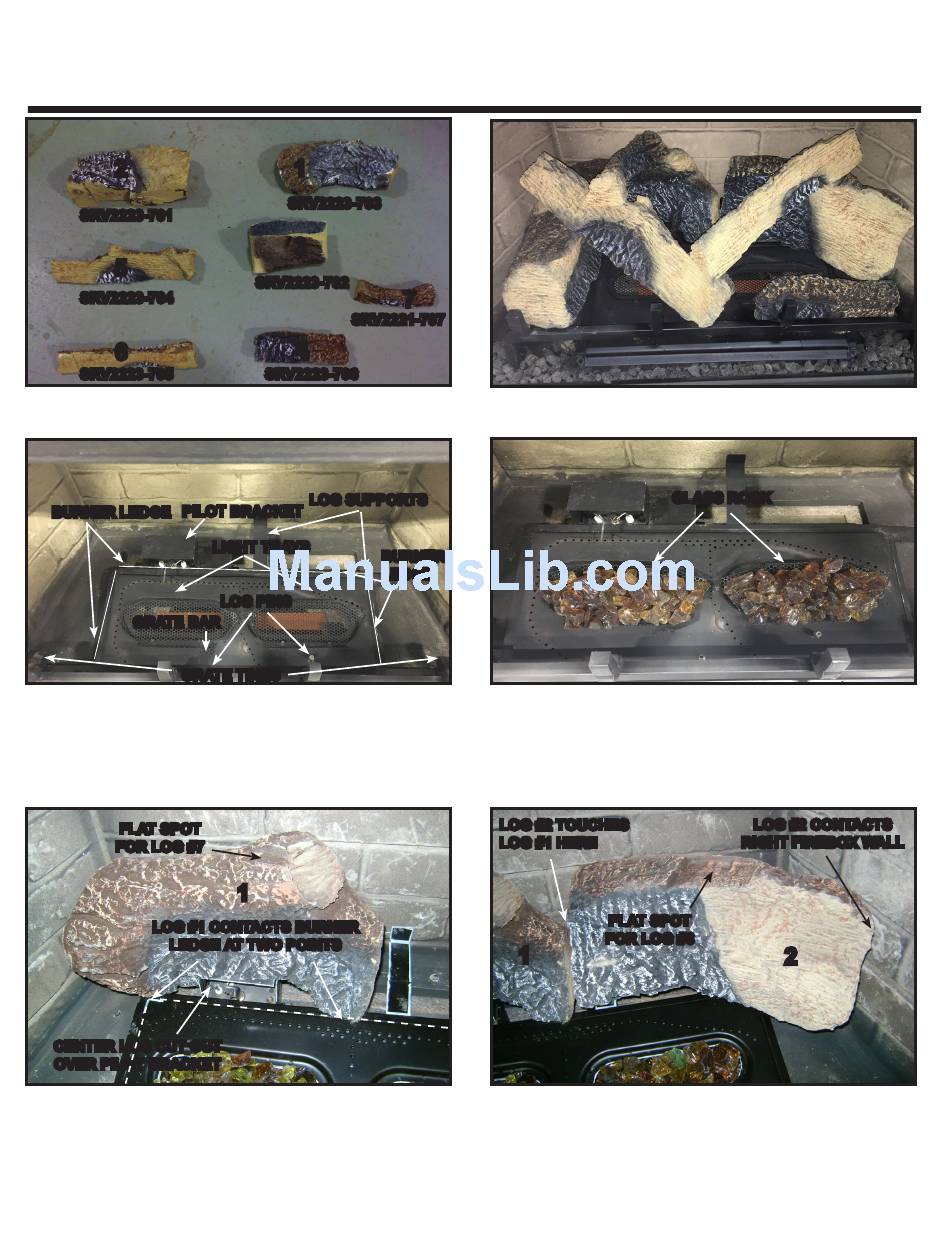

H. Install the Log Assembly
Log Set Assembly: LOGS-QFI35FB
Models: QFI35FB, QFI35FB-C, QFI35FB-IFT
2
SRV2223-701
5
SRV2223-704
6
SRV2223-705
PILOT BRACKET
BURNER LEDGE
GRATE BAR
GRATE TINES
Figure 2. Reference Points for Log Placement
CAUTION: Logs are fragile, handle with care.
Glass Rock (2201-853): Fill each light tray evenly with the glass rock.
WARNING! Risk of Explosion! DO NOT place glass rock on the burner surface. DO NOT place glass rock directly over
burner ports. Improperly placed glass rock interferes with proper burner operation.
FLAT SPOT
FOR LOG #7
LOG #1 CONTACTS BURNER
LEDGE AT TWO POINTS
CENTER LOG CUT OUT
OVER PILOT BRACKET
Figure 4. Place Log #1
Log #1 (SRV2223-703): Position Log #1 as shown in Figure 4. See Figure 2 for additional points of reference. Center the
log over the pilot bracket. The log should rest on the burner ledge as shown in Figure 4.
Log #2 (SRV2223-701): Position Log #2 as shown in Figure 5. See Figure 2 for additional points of reference. Place the
left end of the log on the rear log support. Slide the log back until it rest against the back of the log support. The left end of
the log should touch Log #1. Swing the right end of the log counterclockwise until it contacts the right refractory wall.
30
1
SRV2223-703
3
SRV2223-702
SRV2221-707
4
SRV2223-706
LOG SUPPORTS
LIGHT TRAYS
BURNER
LEDGE
LOG PINS
1
Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18
7
Figure 1. Logs Installed
Figure 3. Install Glass Rock
LOG #2 TOUCHES
LOG #1 HERE
1
Figure 5. Place Log #2
GLASS ROCK
LOG #2 CONTACTS
RIGHT FIREBOX WALL
FLAT SPOT
FOR LOG #6
2
