PLACE END OF LOG
ON FLAT SPOT
7

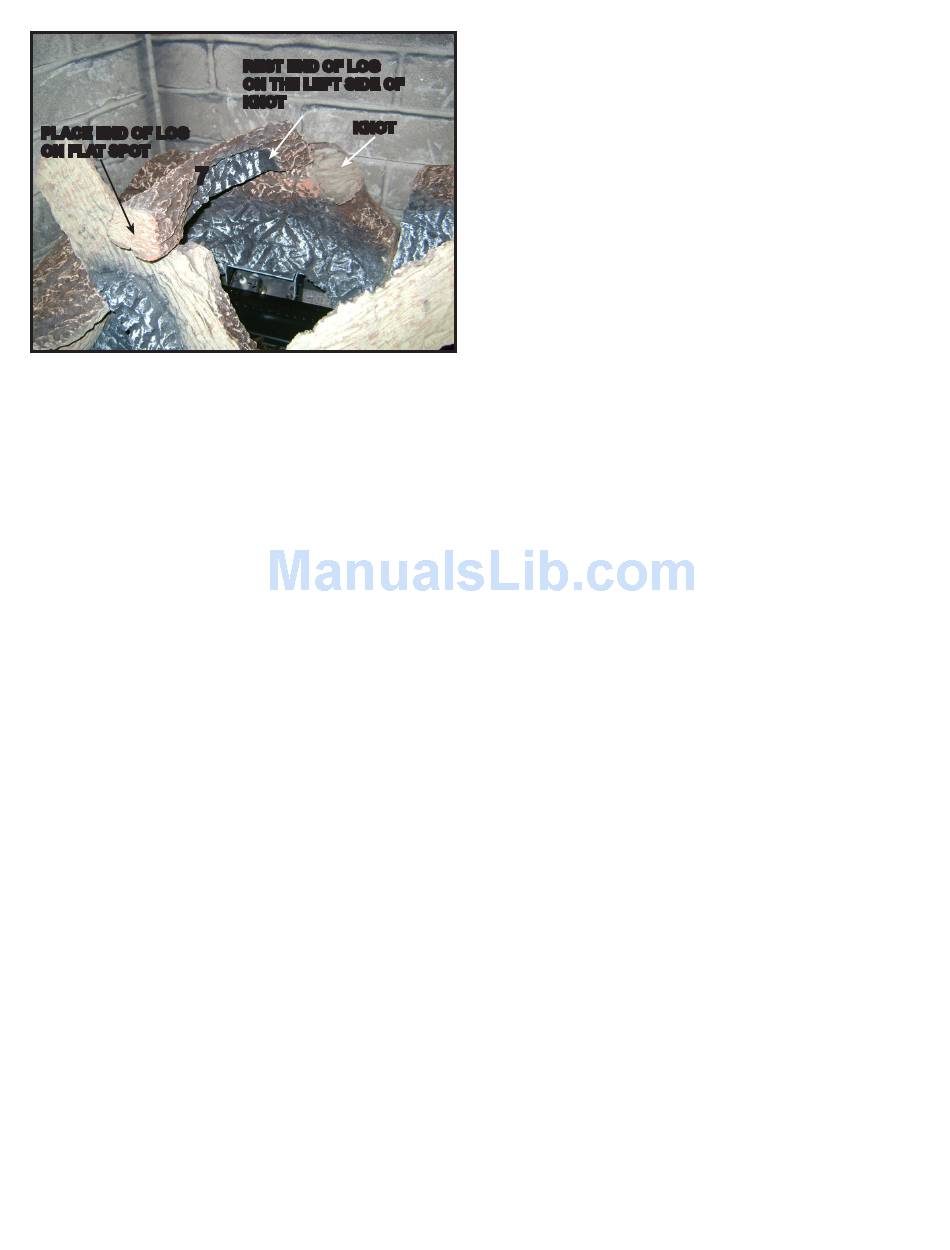

Figure 12. Place Log #7
Log #7 (SRV2221-707): Position Log #7 as shown in Figure 12. See Figure 2 and 10 for additional reference points. Place
the front and back ends of the log on the flat spots as shown in Figure 12.
32
REST END OF LOG
ON THE LEFT SIDE OF
KNOT
KNOT
Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18
2223-935D
