Terminal Legend Function/Description
AC/AC
Low voltage AC input (Voltage Output/Transformer Selection Table, pg.1).
+ DC –
6VDC or 12VDC @ 1.2A continuous supply current.
– BAT +
Stand-by battery connections. Maximum charge rate 300mA.

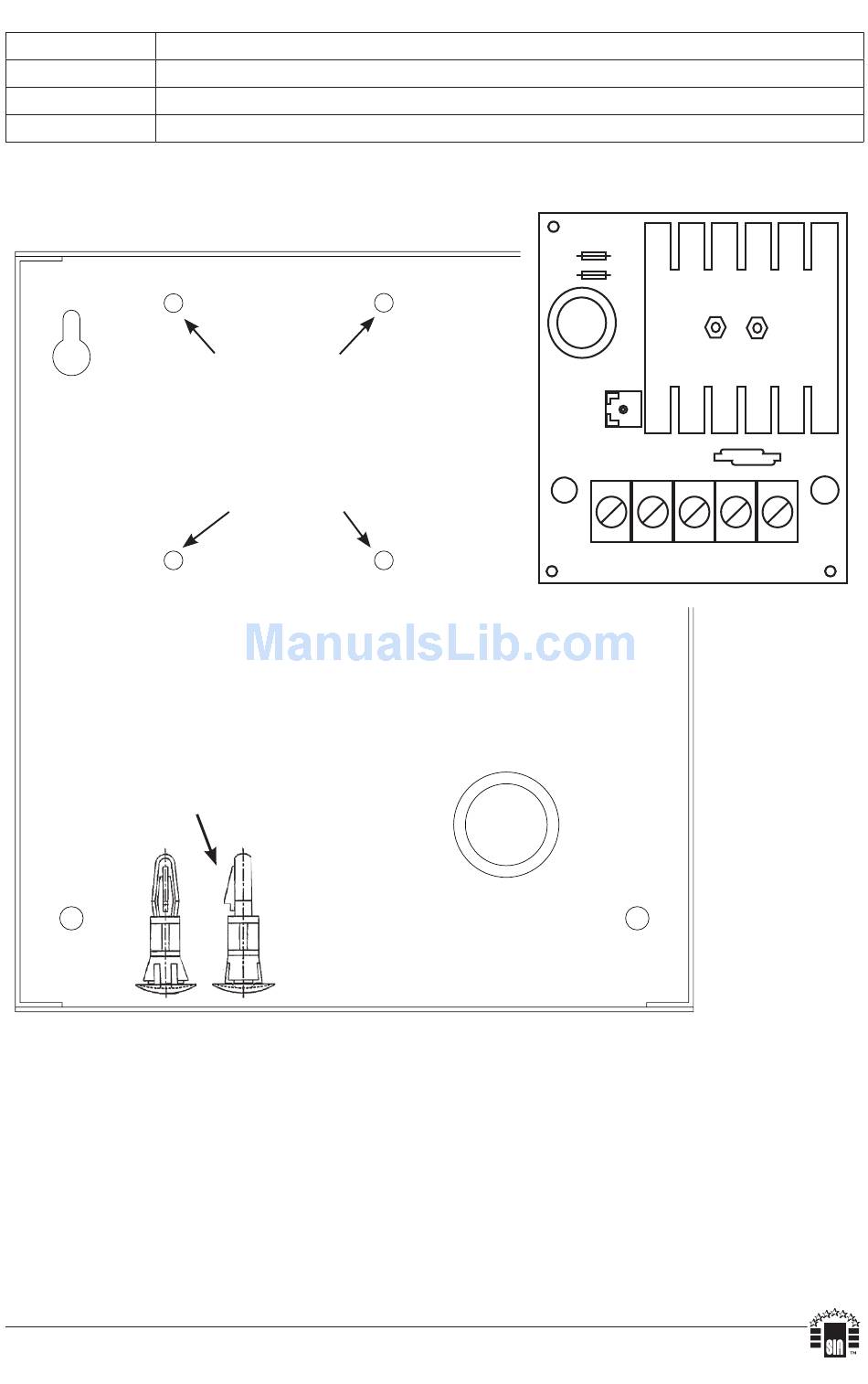

Fig. 1
STEP 1:
STEP 2:
Mount AL624 circuit board to nylon fasteners
by pressing down circuit board onto nylon fasteners.
Note: Springlock on fasteners is used to remove AL624 circuit board.
Note: Four (4) fasteners are provided in the AL624 carton.
Springlock
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IIAL624E - Rev. 091211
Terminal Identification:
Use these holes to mount
AL624 by pushing the nylon
circuit board fasteners (Fig. 1a)
through the back of the enclosure.
Nylon fasteners will snap into place.
Fig. 1a
Nylon Fastener
FACTORY SET AT 12V
CUT J1 FOR 24V
CUT J2 FOR 6V
J1
J2
AC
C23R
AC AC
+DC - BAT +
DC
MEMBER
