Quick Start Guide
00825-0400-4101, Rev AD
October 2016
™
Rosemount
2051 Pressure Transmitter
and Rosemount 2051CF Series Flowmeter
®
with PROFIBUS
PA Protocol

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount 2051 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount 2051

Summary of Contents for Emerson Rosemount 2051

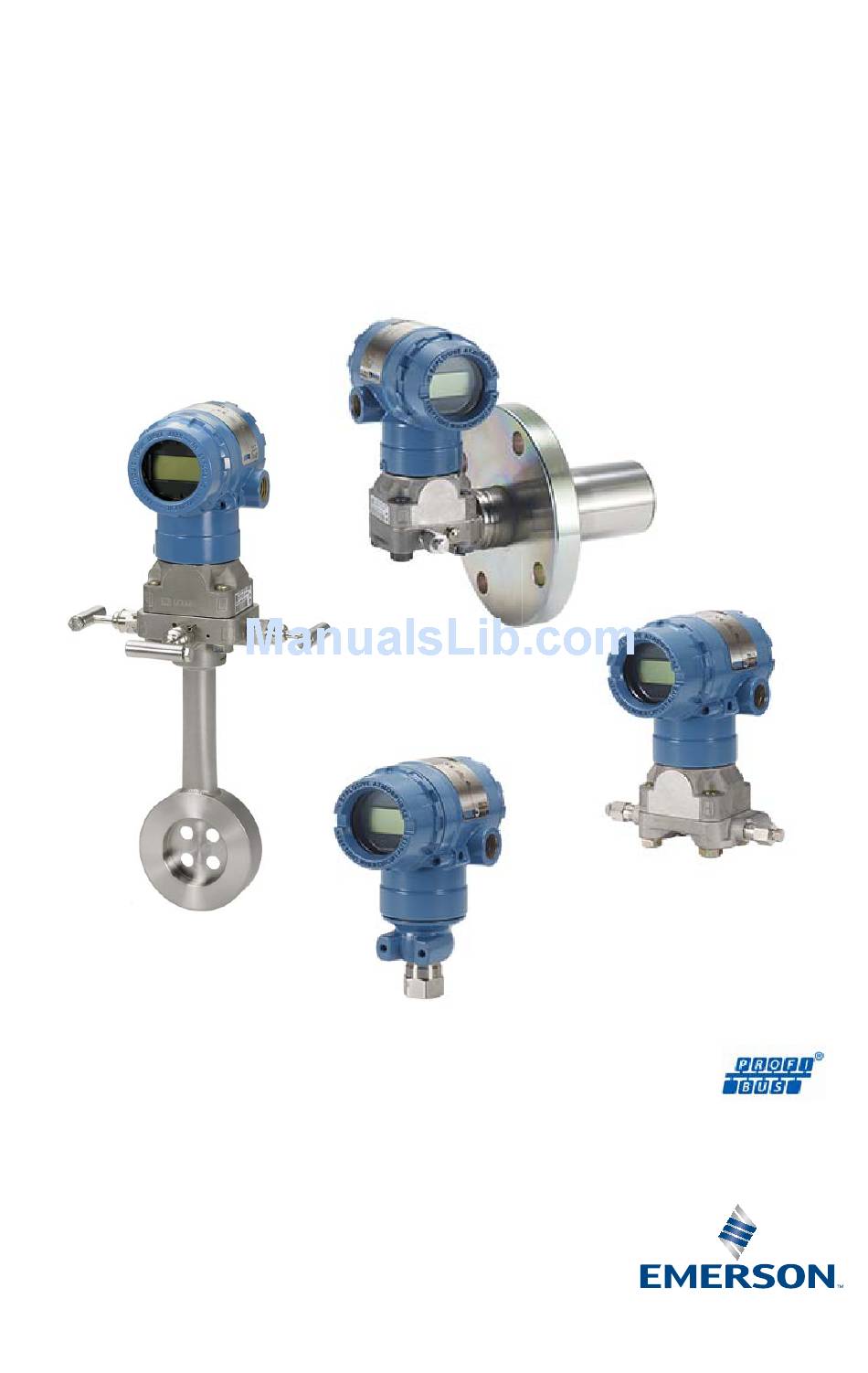

  • Page 1 Quick Start Guide 00825-0400-4101, Rev AD October 2016 ™ Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter ® with PROFIBUS PA Protocol...

  • Page 2: Table Of Contents

    Quick Start Guide NOTICE This installation guide provides basic guidelines for Rosemount 2051 Transmitters. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof, Flame proof, or intrinsically safe (I.S.) installations. Refer to the Rosemount 2051 PROFIBUS PA Reference Manual for more instruction.

  • Page 3: Mount The Transmitter

    Quick Start Guide October 2016 1.0 Mount the transmitter 1.1 Liquid applications 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so the Flow drain/vent valves are oriented upward. 1.2 Gas applications 1.
  • Page 4 October 2016 Quick Start Guide Figure 1. Mounting Options Rosemount 2051C Panel mount Pipe mount Coplanar flange Traditional flange Rosemount 2051T 1. Panel bolts are customer supplied.
  • Page 5 If the transmitter installation requires assembly of the process flanges, manifolds, or flange adapters, follow these assembly guidelines to ensure a tight seal for optimal performance characteristics of the transmitters. Use only bolts supplied ™ with the transmitter or sold by Emerson as spare parts. Figure 2 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 6 October 2016 Quick Start Guide Table 1. Torque Values for the Flange and Flange Adapter Bolts Bolt material Head markings Initial torque Final torque Carbon Steel (CS) 300 in-lb 650 in-lb Stainless Steel (SST) 150 in-lb 300 in-lb 1.5 O-rings with flange adapters Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury.

  • Page 7: Consider Housing Rotation

    Quick Start Guide October 2016 1.6 Environmental seal for housing Thread sealing (PTFE) tape or paste on male threads of conduit is required to provide a water/dust tight conduit seal and meets requirements of NEMA Type 4X, IP66, and IP68. Consult factory if other Ingress Protection ratings are required.

  • Page 8: Set Jumpers And Switches

    ON position after power is applied. This feature prevents the transmitter from being accidentally left in simulate mode. Figure 5. Transmitter Jumper Locations ROSEMOUNT 2051 PROFIBUS PA OUTPUT 4.0 Connect wiring and power up Use the following steps to wire the transmitter: 1.

  • Page 9: October

    Quick Start Guide October 2016 4. Ensure proper grounding. It is important that the instrument cable shield: Be trimmed close and insulated from touching the transmitter housing  Be connected to the next shield if cable is routed through a junction box ...
  • Page 10 October 2016 Quick Start Guide Figure 7. Wiring A. 6234 ft (1900 m) max F. Trunk (depending on cable characteristics) G. DP network B. Integrated power conditioner and filter H. Signal wiring C. Terminators I. Spur D. Power supply J. PROFIBUS PA device E.

  • Page 11: Basic Configuration

    Quick Start Guide October 2016 Figure 8. Wiring A. Trim shield and insulate B. Insulate shield C. Connect shield back to the power supply ground 3. Replace the housing cover. It is recommended that the cover be tightened until there is no gap between the cover and the housing. 4.
  • Page 12 This mode allows the transmitter to communicate with any PROFIBUS PA control host with either the generic Profile GSD (9700) or Rosemount 2051 specific GSD (3333) loaded on the host; therefore, it is not required to change the transmitter identification number at startup.
  • Page 13 Quick Start Guide October 2016 5.2 Configuration tools Local operator interface (LOI) When ordered, the LOI can be used for commissioning the device. To activate the LOI, push either configuration button located under the top tag of the transmitter. See Table 2 Figure 9 for operation and menu information.
  • Page 14 Profile 3.02 specification and NE 107. See manual for condensed status bit assignment information. The appropriate GSD file must be loaded on the control host - Rosemount 2051 specific (rmt3333.gsd) or Profile 3.02 Generic (pa139700.gsd). These files can be found on EmersonProcess.com/Rosemount...

  • Page 15: Trim The Transmitter

    Quick Start Guide October 2016 6.0 Trim the transmitter Devices are calibrated by the factory. Once installed, it is recommended to perform a zero trim on the sensor to eliminate error due to mounting position or static pressure effects. This can be done by performing a zero trim via: LOI –...

  • Page 16: Product Certifications

    October 2016 Quick Start Guide 7.0 Product Certifications Rev 1.4 7.1 European Directive Information A copy of the EC Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EC Declaration of Conformity can be found at EmersonProcess.com/Rosemount.
  • Page 17 Quick Start Guide October 2016 E6 Canada Explosion-Proof, Dust Ignition Proof Certificate: 2041384 Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, CSA Std C22.2 No. 30-M1986, CAN/CSA-C22.2 No. 94-M91, CSA Std C22.2 No.142-M1987, CAN/CSA-C22.2 No.157-92, CSA Std C22.2 No. 213-M1987, CAN/CSA-E60079-0:07, CAN/CSA-E60079-1:07, CAN/CSA-E60079-11-02, CAN/CSA-C22.2 No.
  • Page 18 October 2016 Quick Start Guide Special Conditions for Safe Use (X): 1. If the equipment is fitted with an optional 90 V transient suppressor, it is incapable of withstanding the 500 V isolation from earth test and this must be taken into account during installation.
  • Page 19 Quick Start Guide October 2016 Markings: Ex d IIC T6/T5 IP66, T6(–50 °C ≤ T ≤ +65 °C), T5(–50 °C ≤ T ≤ +80 °C) Table 6. Process Temperature Temperature class Process temperature –50 °C to +65 °C –50 °C to +80 °C Special Conditions for Safe Use (X): 1.
  • Page 20 October 2016 Quick Start Guide Table 8. Input Parameters Parameter FISCO Inductance L 0 mH Special Conditions for Safe Use (X): 1. If the equipment is fitted with an optional 90 V transient suppressor, it is incapable of withstanding the 500 V isolation from earth test and this must be taken into account during installation.
  • Page 21 Quick Start Guide October 2016 Table 9. Input Parameters Parameter HART Fieldbus/PROFIBUS Inductance L Special Conditions for Safe Use (X): 1. If the equipment is fitted with an optional 90 V transient suppressor, it is incapable of withstanding the 500 V insulation from earth test and this must be taken into account during installation.
  • Page 22 October 2016 Quick Start Guide 2. The relation between T code and ambient temperature range is: Temperature class –50 °C ≤ T ≤ +80 °C –50 °C ≤ T ≤ +65 °C 3. The earth connection facility in the enclosure should be connected reliably. 4.
  • Page 23 Quick Start Guide October 2016 should be shielded cables (the cables must have insulated shield). The shielded cable has to be grounded reliably in a non-hazardous area. 4. The product should be used with Ex-certified associated apparatus to establish explosion protection system that can be used in explosive gas atmospheres. Wiring and terminals should comply with the instruction manual of the product and associated apparatus.
  • Page 24 October 2016 Quick Start Guide KB Combination of K5 and K6 KC Combination of E1, I1, and K5 KD Combination of K1, K5, and K6 KM Combination of EM and IM 7.11 Additional Certifications SBS American Bureau of Shipping (ABS) Type Approval Certificate: 09-HS446883B-3-PDA Intended Use: Marine &...
  • Page 25 Quick Start Guide October 2016 Figure 10. Rosemount 2051 EC Declaration of Conformity...
  • Page 26 October 2016 Quick Start Guide...
  • Page 27 Quick Start Guide October 2016...
  • Page 28 October 2016 Quick Start Guide...
  • Page 29 Quick Start Guide October 2016 Rosemount 2051 China RoHS List of Rosemount 2051 Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6)
