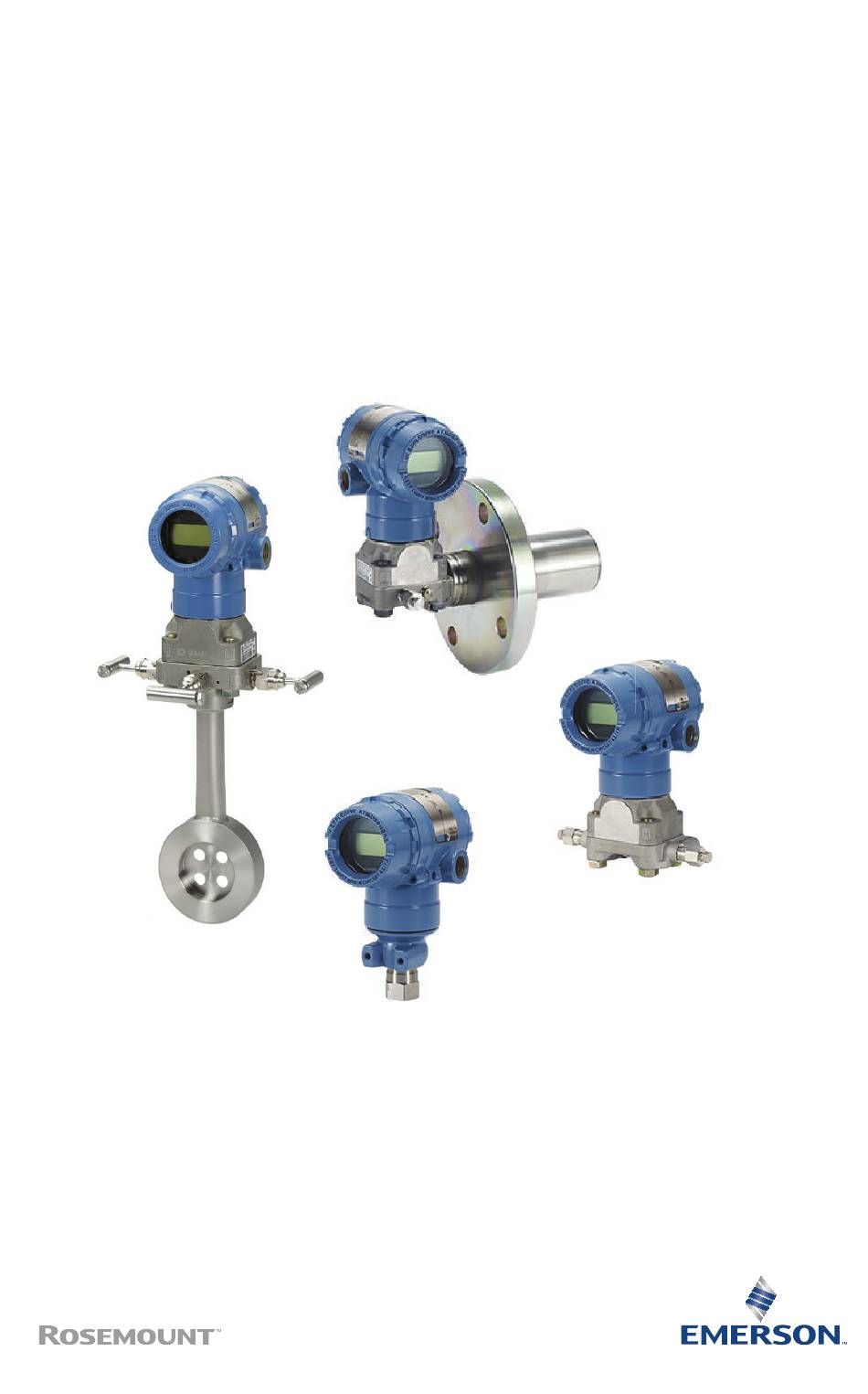

Quick Start Guide
00825-0100-4102, Rev EE
January 2025
Rosemount
2051 Pressure
Transmitter and Rosemount 2051CF
DP Flow Meter
®
with WirelessHART
Protocol

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 2051 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Emerson Rosemount 2051

  • Page 1 Quick Start Guide 00825-0100-4102, Rev EE January 2025 Rosemount ™ 2051 Pressure Transmitter and Rosemount 2051CF DP Flow Meter ® with WirelessHART Protocol...
  • Page 2 Emerson.com/Global. Shipping considerations for wireless products: Emerson shipped the transmitter to you without the power module installed. Remove the power module prior to shipping the transmitter. Each power module contains one D size primary lithium-thionyl chloride battery. Primary...
  • Page 3: Table Of Contents

    European Directive information....................21 Ordinary location certification....................22 Hazardous location certification....................23 North America..........................24 Europe............................28 International..........................31 Brazil............................34 China............................37 Korea............................38 Japan............................39 EAC............................... 40 Combinations..........................41 Y3 ATEX/IECEx RFID tag approvals...................42 Declaration of Conformity......................43 China RoHS..........................45 www.Emerson.com...
  • Page 4 January 2025 Quick Start Guide www.Emerson.com...
  • Page 5: Wireless Considerations

    Power up sequence Do not install the power module on any wireless device until the Emerson Wireless Gateway is installed and functioning properly. This transmitter uses the green power module (order model number 701PGNKF). Power up wireless devices in order of proximity from the Gateway, beginning with the closest.
  • Page 6: Mounting The Transmitter

    2. Mount the transmitter beside or below the taps. Mount the transmitter so the drain/vent valves are oriented upward. 2.2  Mount the transmitter in gas applications Procedure 1. Place taps on the top or side of the line. 2. Mount the transmitter beside or above the taps. www.Emerson.com...
  • Page 7 Quick Start Guide January 2025 2.3  Mount the transmitter in steam applications Procedure 1. Place taps to the side of the line. 2. Mount the transmitter beside or below the taps. 3. Fill impulse lines with water. www.Emerson.com...
  • Page 8 Panel mount Pipe mount Coplanar flange ™ Traditional flange   Rosemount 2051T 5/16 × 1½ panel bolts are customer supplied. 2.5  Install bolts If the transmitter installation requires assembly of the process flanges, manifolds, or flange adapters, follow the assembly www.Emerson.com...
  • Page 9 Quick Start Guide January 2025 guidelines to ensure a tight seal for optimal performance characteristics of the transmitter. Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 2-2 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 10 The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring that is designed for its specific flange adapter, as shown in Figure 2-3. When compressed, PTFE O-rings tend to cold flow, which aids in their sealing capabilities. www.Emerson.com...
  • Page 11 The vent path is 360° around the transmitter between the housing and sensor. See Figure 2-4. NOTICE Keep the vent path free of any obstruction, including but not limited to paint, dust, and lubrication by mounting the transmitter so fluids can drain away. www.Emerson.com...
  • Page 12 January 2025 Quick Start Guide Figure 2-4: In-line Gauge Low Side Pressure Port A. Pressure port location www.Emerson.com...
  • Page 13: Rotate Housing

    3. If the desired location cannot be achieved due to thread limitation, rotate the housing counterclockwise to the desired location (up to 360° from thread limit). 4. Retighten the housing rotation set screw to no more than 7 in- lb when desired location is reached. www.Emerson.com...
  • Page 14: Connect The Power Module

    January 2025 Quick Start Guide 4  Connect the power module Procedure 1. Remove the power module cover. 2. Connect the green power module. See Figure 4-1. Figure 4-1: Power module A. Power module www.Emerson.com...
  • Page 15: Trimming The Transmitter

    Quick Start Guide January 2025 5  Trimming the transmitter The factory calibrates the transmitters. Once installed, Emerson recommends performing a zero trim on gauge and differential pressure transmitters to eliminate error due to mounting position or static pressure effects. You can perform a zero trim either a Field Communicator or configuration buttons.
  • Page 16 (no O-ring visible). Figure 5-1: Digital Zero button A. Digital Zero button Note You can also use AMS Wireless Configurator to perform a zero trim once the device has joined the network. www.Emerson.com...
  • Page 17: Verifying Transmitter Configuration

    You can verify configuration in four locations: • At the device via the local display (LCD display) • By using the Field Communicator • Via the Emerson Wireless Gateway’s integrated web interface • Via AMS Wireless Configurator 6.1  Verifying transmitter configuration using LCD display The LCD display will show the output values at the same rate as the wireless update rate.
  • Page 18 Status. This page will show whether the device has joined the network and if it is communicating properly. Note It may take several minutes for the device to join the network. See the Emerson Wireless 1420 Gateway Quick Start Guide for more information. www.Emerson.com...
  • Page 19 Figure 6-1: Gateway Network Settings 6.4  Verifying transmitter configuration using AMS Wireless Configurator When the transmitter has joined the network, it will appear in the AMS Wireless Configurator as shown in Figure 6-2. Figure 6-2: AMS Wireless Configurator Network Setup www.Emerson.com...
  • Page 20: Troubleshooting

    ID and join key in the wireless transmitter by using the following Fast Key sequence. See the Rosemount 2051 Wireless Pressure Transmitters Reference Manual for further troubleshooting. From the Home screen, enter the Fast Key sequence: Device Dashboard Fast Keys 3, 5 www.Emerson.com...
  • Page 21: European Directive Information

    January 2025 8  European Directive information A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at www.Emerson.com. www.Emerson.com...
  • Page 22: Ordinary Location Certification

    Health Administration (OSHA). 9.1  Functional specifications Pollution degree 16,404.2 ft. (5000 m) maximum Altitude All models: 0 to 100 percent relative humidity Humidity 4-20 mA (HART ): 42.4 Vdc Supply voltage ® (VMAX) Fieldbus, PROFIBUS PA: 32 Vdc ™ ™ OUNDATION www.Emerson.com...
  • Page 23: Hazardous Location Certification

    Quick Start Guide January 2025 10  Hazardous location certification NOTICE Device ambient temperature ratings and electrical parameters may be limited to the levels dictated by the hazardous location certificate parameters. www.Emerson.com...
  • Page 24: North America

    Type 4X, IP 68 Optional: single seal Specific Conditions of Use: 1. The Rosemount 2051 transmitter housing may contain aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken during installation and use to prevent impact and friction.
  • Page 25 Care must be taken during installation and use to prevent impact and friction. 2. Equipment evaluated for atmospheric pressure range between 80 kPa (0.8 bar) to 110 kPa (1.1 bar). 3. Maximum process temperature limits shall be in accordance with 03031-1053. www.Emerson.com...
  • Page 26 CL II GP E, F, G, CL III T4; Ex ia IIC T4 Ga; NI: CL I DIV 2 GP A, B, C, D -50 °C ≤ Ta ≤ +70 °C Install per 02051-1008 Single seal - temp limits per 03031-1053 Type 4X, IP 68 www.Emerson.com...
  • Page 27 Care must be taken during installation and use to prevent impact and friction. 2. Equipment evaluated for atmospheric pressure range between 80 kPa (0.8 bar) to 110 kPa (1.1 bar). www.Emerson.com...
  • Page 28: Europe

    ½-14 NPT form. Only use plugs, adapters, glands, or conduit with a compatible thread form when closing these entries. Entries marked M20 are M20 x 1.5 thread form. On devices with multiple conduit entries, all entries will have the same thread form. www.Emerson.com...
  • Page 29 II 1 G Ex ia IIC T4 Ga (–60 °C ≤ Ta ≤ +60 °C) Markings Table 12-3: Input Parameters FISCO Voltage U 17.5 V Current l 380 mA Power P 5.32 W Capacitance C 0 μF Inductance L 0 mH www.Emerson.com...
  • Page 30 3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. www.Emerson.com...
  • Page 31: International

    ½-14 NPT form. Only use plugs, adapters, glands, or conduit with a compatible thread form when closing these entries. Entries marked M20 are M20 x 1.5 thread form. On devices with multiple conduit entries, all entries will have the same thread form. www.Emerson.com...
  • Page 32 IG IECEx FISCO IECEx BAS 08.0045X Certificate IEC 60079-0: 2017, IEC60079-11: 2011 Standards Ex ia IIC T4 Ga (–60 °C ≤ Ta ≤ +60 °C) Markings www.Emerson.com...
  • Page 33 Special Conditions for Safe Use (X): 1. If fitted with a 90 V transient suppressor, the equipment is not capable of withstanding the 500 V electrical strength test as defined in clause 6.5.1 of IEC60079-15: 2010. This must be taken into account during installation. www.Emerson.com...
  • Page 34: Brazil

    I2 Brazil Intrinsic Safety UL-BR 14.0759X Certificate ABNT NBR IEC 60079-0: 2013; ABNT NBR IEC Standards 60079-11: 2013 Ex ia IIC T4 Ga (–60 °C ≤ Ta ≤ +70 °C) Markings www.Emerson.com...
  • Page 35 Special Conditions for Safe Use (X): 1. If the equipment is fitted with an optional 90 V transient suppressor, it is incapable of withstanding the 500 V insulation from earth test, and this must be taken into account during installation. www.Emerson.com...
  • Page 36 January 2025 Quick Start Guide 2. The enclosure may be made of aluminum alloy and given a protective polyurethane finish; however, care should be taken to protect it from impact and abrasion when located in atmospheres that require EPL Ga. www.Emerson.com...
  • Page 37: China

    Pressure transmitter: Ex db IIC T6···T4 Ga/Gb Markings Flow meter: Ex d II C T6~T4 Ga/Gb I3 China Intrinsic Safety GYJ22.1834X; GYJ20.1487X [Flow meters] Certificate GB3/T 3836.1-2021, GB/T 3836.4-2021, GB3836.20-2010 Standards Ex ia IIC T4 Ga, FISCO: Ex iaⅡCT4 Ga, Ex db+ib/ibⅡCT4 Markings Ga/Gb www.Emerson.com...
  • Page 38: Korea

    Special Conditions for Safe Use (X): See certificate for special conditions. IP Korea Intrinsic Safety 12-KB4BO-0343X, 13-KB4BO-0207X, 18- Certificate KA4BO-0309X Ex ia IIC T4 (-60 °C ≤ Ta ≤ +70 °C) Markings Special Conditions for Safe Use (X): See certificate for special conditions. www.Emerson.com...
  • Page 39: Japan

    3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. www.Emerson.com...
  • Page 40: Eac

    Special Conditions for Safe Use (X): See certificate for special conditions. IM EAC Intrinsically Safe EAЭEC KZ 7500525.01.01.00647 Certificate 0Ex ia IIC T4 Ga X (-60 °C ≤ Ta ≤ +70 °C) Markings Special Conditions for Safe Use (X): See certificate for special conditions. www.Emerson.com...
  • Page 41: Combinations

    Combination of E1, I1, and K6 Combination of K5 and K6 Combination of E1, I1, and K5 Combination of K1, K5, and K6 Combination of EP and IP Combination of EM and IM www.Emerson.com...
  • Page 42: Y3 Atex/Iecex Rfid Tag Approvals

     WARNING Additional warnings The plastic enclosure may present a potential electrostatic ignition hazard. RFID tag has limitations in ambient temperature and zone installation areas (Zones 1 & 21) as compared to the gauge. www.Emerson.com...
  • Page 43: Declaration Of Conformity

    Quick Start Guide January 2025 21  Declaration of Conformity www.Emerson.com...
  • Page 44 January 2025 Quick Start Guide www.Emerson.com...
  • Page 45: China Rohs

    Quick Start Guide January 2025 22  China RoHS www.Emerson.com...
  • Page 46 January 2025 Quick Start Guide www.Emerson.com...
  • Page 47 Quick Start Guide January 2025 www.Emerson.com...
  • Page 48 2025 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
