Quick Installation Guide
00825-0100-4101, Rev CA
August 2009
Rosemount 2051 Pressure Transmitter
with 4-20 mA HART and 1-5 Vdc HART Low Power Protocol
www.rosemount.com
¢00825-0100-4101¤
Step 1: Mount the Transmitter
Step 2: Consider Housing Rotation
Step 3: Set the Jumpers
Step 4: Connect the Wiring and Power
Step 5: Verify Configuration
Step 6: Trim the Transmitter
Safety Instrumented Systems
Product Certifications
Start
End
Rosemount 2051

Advertisement

Table of Contents
loading

Summary of Contents for Emerson Rosemount 2051

  • Page 1 Quick Installation Guide 00825-0100-4101, Rev CA Rosemount 2051 August 2009 Rosemount 2051 Pressure Transmitter with 4-20 mA HART and 1-5 Vdc HART Low Power Protocol Start Step 1: Mount the Transmitter Step 2: Consider Housing Rotation Step 3: Set the Jumpers...
  • Page 2: Important Notice

    © 2009 Rosemount Inc. All rights reserved. All marks property of owner. Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc. Rosemount Inc. Emerson Process Management GmbH & Co. 8200 Market Boulevard Chanhassen, MN USA 55317 Argelsrieder Feld 3...
  • Page 3: Step 1: Mount The Transmitter

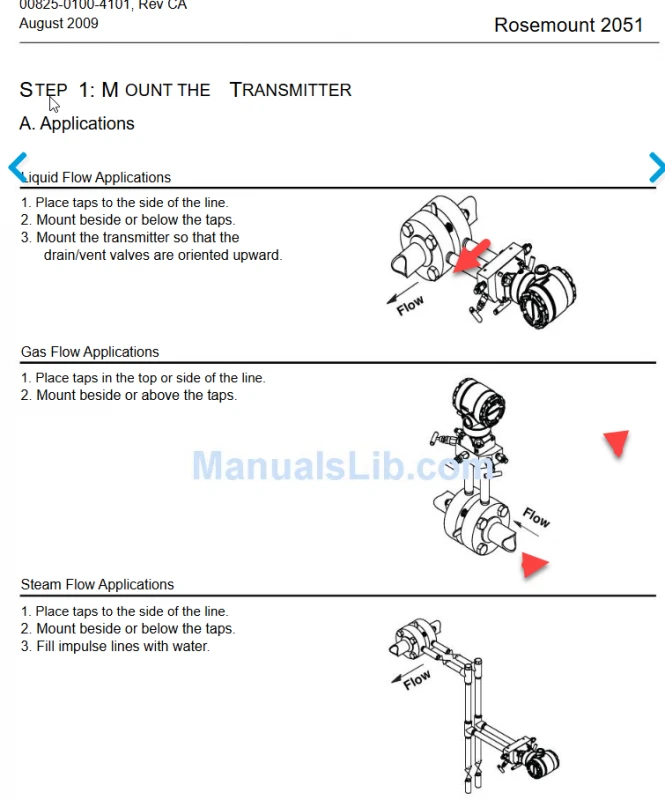

    Quick Installation Guide 00825-0100-4101, Rev CA Rosemount 2051 August 2009 1: M OUNT THE RANSMITTER A. Applications Liquid Flow Applications 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward.
