Support of IPv6 tunnel technologies, including the SATAP runnel, IPv6 manually-configured tunnel,
IPv4-compatible automatic tunnel, IPv6 to IPv4 tunnel, IPv6 over IPv4 GRE tunnel, and IPv6 over IPv4 tunnel.

IPv6 over IPv4 tunnel technologies, including IPv6 manually-configured tunnel and IPv4-compatible automatic
tunnel.

Support of multicast routing protocols, including IGMPv1, IGMPv2, IGMPv3, DVMRP, and PIM DM/SM.

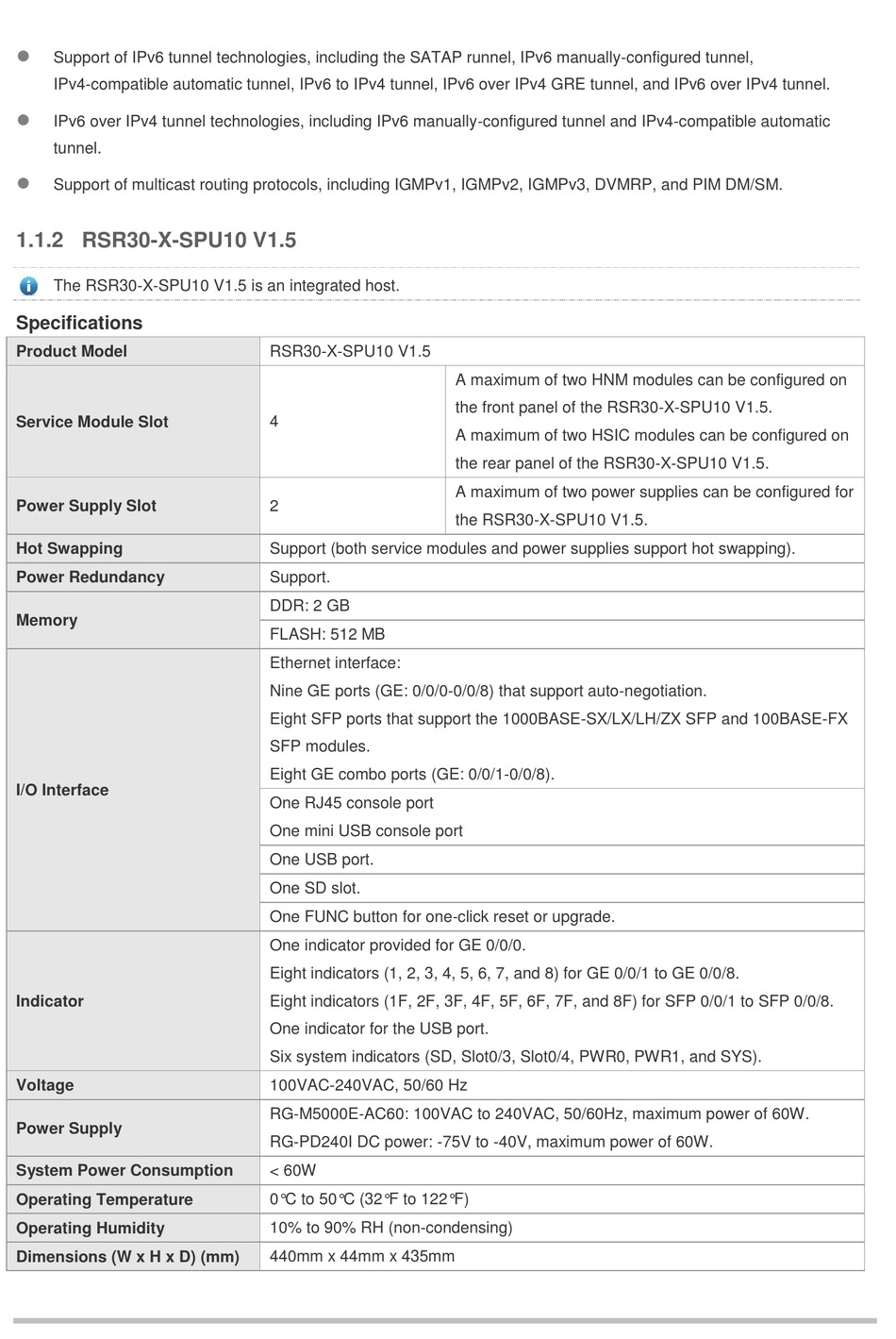

1.1.2 RSR30-X-SPU10 V1.5
The RSR30-X-SPU10 V1.5 is an integrated host.

Specifications

Product Model
Service Module Slot
Power Supply Slot
Hot Swapping
Power Redundancy
Memory
I/O Interface
Indicator
Voltage
Power Supply
System Power Consumption
Operating Temperature
Operating Humidity
Dimensions (W x H x D) (mm)
RSR30-X-SPU10 V1.5
4
2
Support (both service modules and power supplies support hot swapping).
Support.
DDR: 2 GB
FLASH: 512 MB
Ethernet interface:
Nine GE ports (GE: 0/0/0-0/0/8) that support auto-negotiation.
Eight SFP ports that support the 1000BASE-SX/LX/LH/ZX SFP and 100BASE-FX
SFP modules.
Eight GE combo ports (GE: 0/0/1-0/0/8).
One RJ45 console port
One mini USB console port
One USB port.
One SD slot.
One FUNC button for one-click reset or upgrade.
One indicator provided for GE 0/0/0.
Eight indicators (1, 2, 3, 4, 5, 6, 7, and 8) for GE 0/0/1 to GE 0/0/8.
Eight indicators (1F, 2F, 3F, 4F, 5F, 6F, 7F, and 8F) for SFP 0/0/1 to SFP 0/0/8.
One indicator for the USB port.
Six system indicators (SD, Slot0/3, Slot0/4, PWR0, PWR1, and SYS).
100VAC-240VAC, 50/60 Hz
RG-M5000E-AC60: 100VAC to 240VAC, 50/60Hz, maximum power of 60W.
RG-PD240I DC power: -75V to -40V, maximum power of 60W.
< 60W
0° C to 50° C (32° F to 122° F)
10% to 90% RH (non-condensing)
440mm x 44mm x 435mm
A maximum of two HNM modules can be configured on
the front panel of the RSR30-X-SPU10 V1.5.
A maximum of two HSIC modules can be configured on
the rear panel of the RSR30-X-SPU10 V1.5.
A maximum of two power supplies can be configured for
the RSR30-X-SPU10 V1.5.
·
