ADZS-U4050LF-EZKIT
WIRELESS TRANCEIVERS INTERFACE (P1, P2,
AND P3)
The wireless transceiver daughterboard interface supports the
ADF7023, ADF7024, ADF7242, ADF7030, and
wireless transceivers. These are low power, high performance,
integrated radio transceivers supporting a wide range of mod-
ulation schemes and channel widths in the sub GHz and
2.4 GHz frequency ranges.
User Guide
ADF7030-1

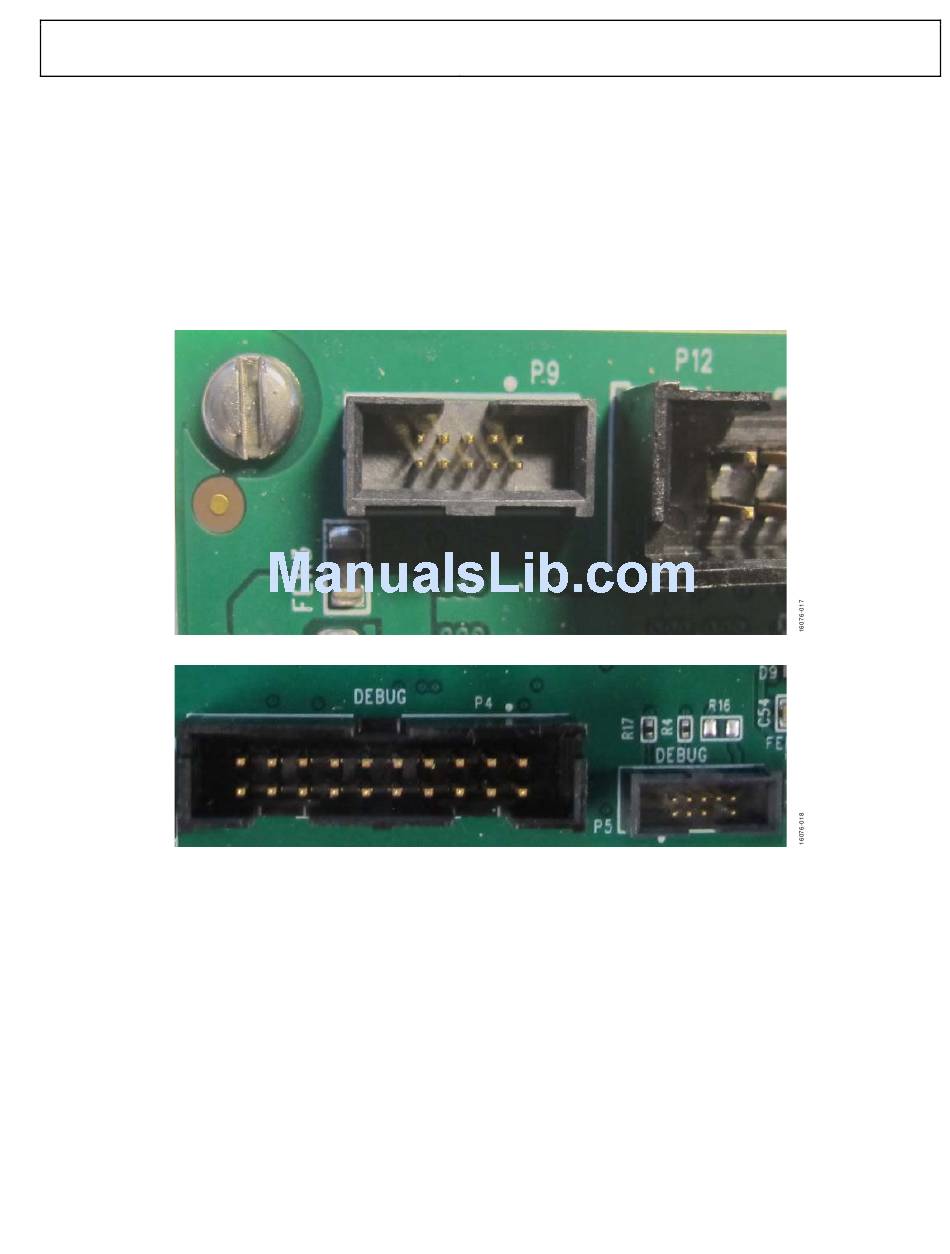

Figure 16. P9 Debug Connector
Figure 17. P4 and P5 Debug Connectors
Rev. 0 | Page 15 of 31
EMULATION AND SERIAL INTERFACE CONNECTOR
(P4, P5, AND P9)
The P4, P5, and P9 connectors provide a connection from the
ADZS-U4050LF-EZKIT board to the emulator board. P4 is a
20-pin standard JTAG connector compatible with the J-Link
LITE emulator.
P5 and P9 are 10-pin debug/emulator connectors with serial
wire, power source, and UART signal lines for debugging
purposes.
UG-1163
