ADZS-U4050LF-EZKIT

ADZS-U4050LF-EZKIT BOARD CONNECTORS

The ADZS-U4050LF-EZKIT board has a number of connectors
used to connect different boards and kits for evaluation. The
locations of these connectors are shown in Figure 10.

ARDUINO UNO CONNECTORS (J4, J5, J6, AND J7)

The ADZS-U4050LF-EZKIT board has an Arduino Uno
compatible form factor interface that can accept Arduino
shields and daughter boards. The pinout of the Arduino
interface is described in Table 5 through Table 8.
User Guide

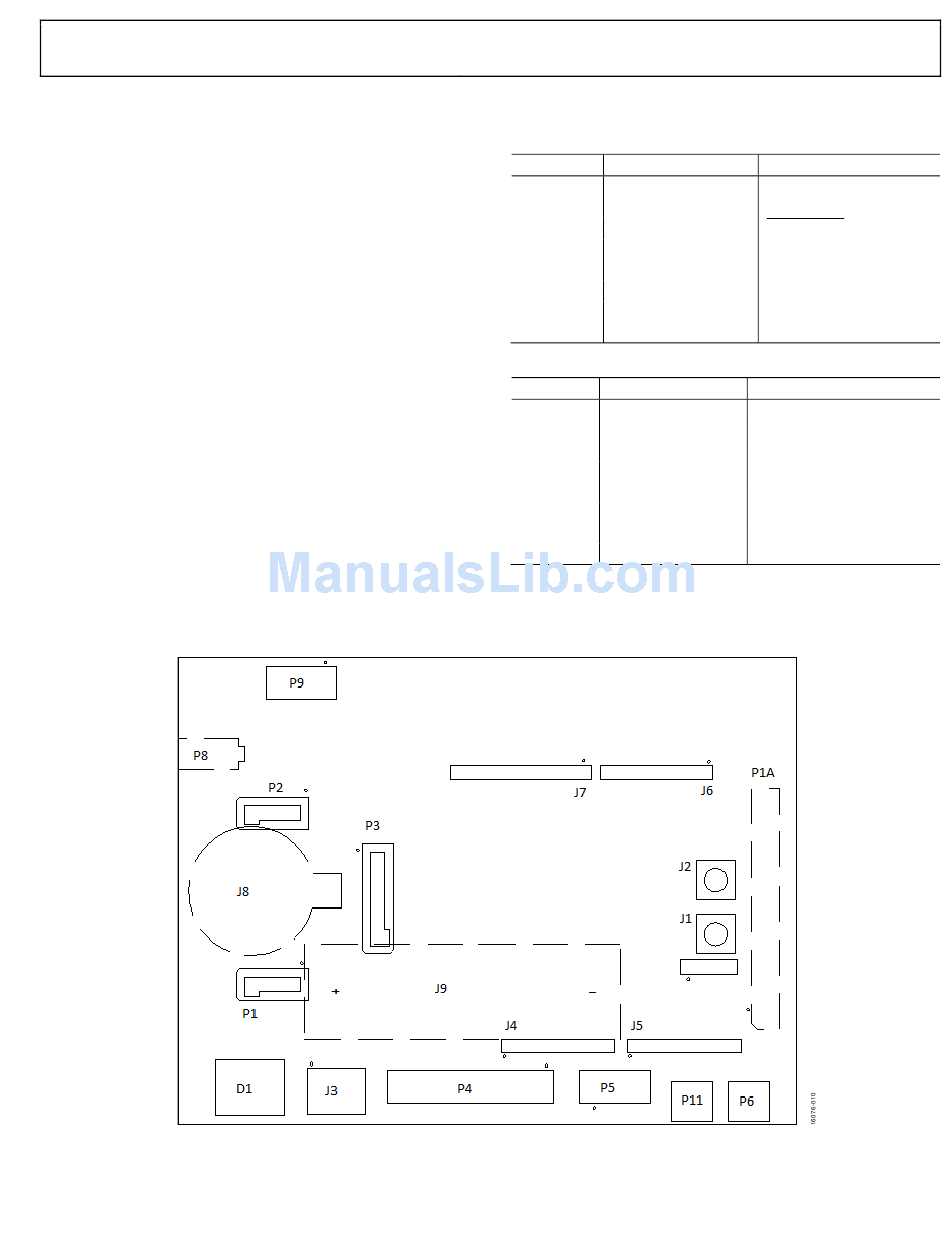

Figure 10. Connector Locations
Rev. 0 | Page 11 of 31
Table 5. Arduino Interface J4 Connector Pinout
J4 Pin No. Arduino Pin Name
1 No connect
2 3V
3 RST
4 3V
5 5V
6 GND
7 GND
8 VIN
Table 6. Arduino Interface J5 Connector Pinout
J5 Pin No. Arduino Pin Name
1 A0
2 A1
3 A2
4 A3
5 A4
6 A5
7 Not applicable
8 Not applicable
UG-1163
ADuCM4050 Pin Name
Not applicable
Not applicable
SYS_HWRST
Not applicable
Not applicable
Not applicable
Not applicable
Not applicable
ADuCM4050 Pin Name
ADC0_VIN0 (P2_03)
ADC0_VIN1 (P2_04)
ADC0_VIN2 (P2_05)
ADC0_VIN3 (P2_06)
ADC0_VIN4 (P2_07)
ADC0_VIN5 (P2_08)
P1_03/GPIO19/SPI2_MOSI
P1_04/GPIO20/SPI2_MISO
