- Page 1 User Manual PT-HDBT-200 User Manual HDBaseT Extender, 4K (60Hz 4:4:4) HDR with VLC Model PT-HDBT-200 Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-HDBT-200 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. In the constant effort to improve our product, we reserve the right to make changes in functions or parameters without prior notice or obligation. - Page 3 PT-HDBT-200 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-200 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-200 complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-HDBT-200 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ... -
Page 5: Package List

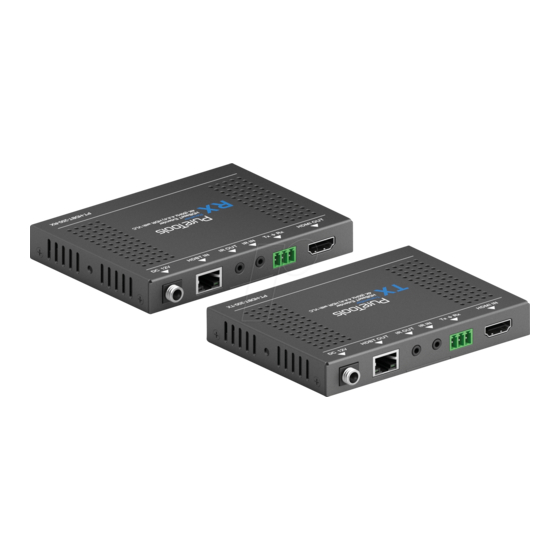

User Manual PT-HDBT-200 Introduction to PT-HDBT-200 The PT-HDBT-200 is an ultra-thin HDMI2.0 Extender consist of PT-HDBT-200-TX transmitter and PT-HDBT-200-RX receiver. It extends 1080p/4K HDMI signal over CAT5e/CAT6a cable up to 70m /40m (PoC), and enables IR and RS232 pass-through to control source or display device remotely. - Page 6 User Manual PT-HDBT-200 Receiver HDBT IN DC 12V UPDATE B UPDATE A CTRL Name Description CTRL: RS232 pass-through control mode. UPDATE A: Update Valens IC program, connect a PC to the RS232 port, and then double-click the ① MODE Switcher update file (.bat).
-
Page 7: Specification
User Manual PT-HDBT-200 Specification PT-HDBT-200-TX Transmitter Input HDMI IN Output HDBT OUT Control Ports IR IN, IR OUT, RS232 PT-HDBT-200-RX Receiver Input HDBT IN Output HDMI OUT Control Ports IR IN, IR OUT, RS232 General Transmission Mode & HDBaseT; 1080p ≤ 70m; 4K×2K ≤ 40m Distance Resolution Up to 4K×2K@60Hz 4:4:4... -
Page 8: System Diagram
User Manual PT-HDBT-200 System Diagram 4K 40m,1080P 70m CATx: HDMI: RS232: Power: Transmitter Receiver IR Emitter IR Receiver IR Receiver IR Emitter TV Remote Blu-Ray Remote 4K Blu-Ray Laptop HDTV... -
Page 9: After Sales Service
User Manual PT-HDBT-200 After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 10 User Manual PT-HDBT-200...
- Page 11 User Manual PT-HDBT-200...
-
Page 12: Asking For Assistance
Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de info@purelink.de...
