PM Series CATx Extenders
PM Series CATx Standalone and Wall-plate type Extender
TM
PureLink
535 East Crescent Ave
Ramsey, NJ 07446
Tel: 201.488.3232
Fax: 201.621.6118
Owner's Manual
Website :
www.purelinkav.com
E-mail :
info@purelinkav.com
For Technical Support, contact us at
:
support@purelinkav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PureLink PM series

Summary of Contents for PureLink PM series

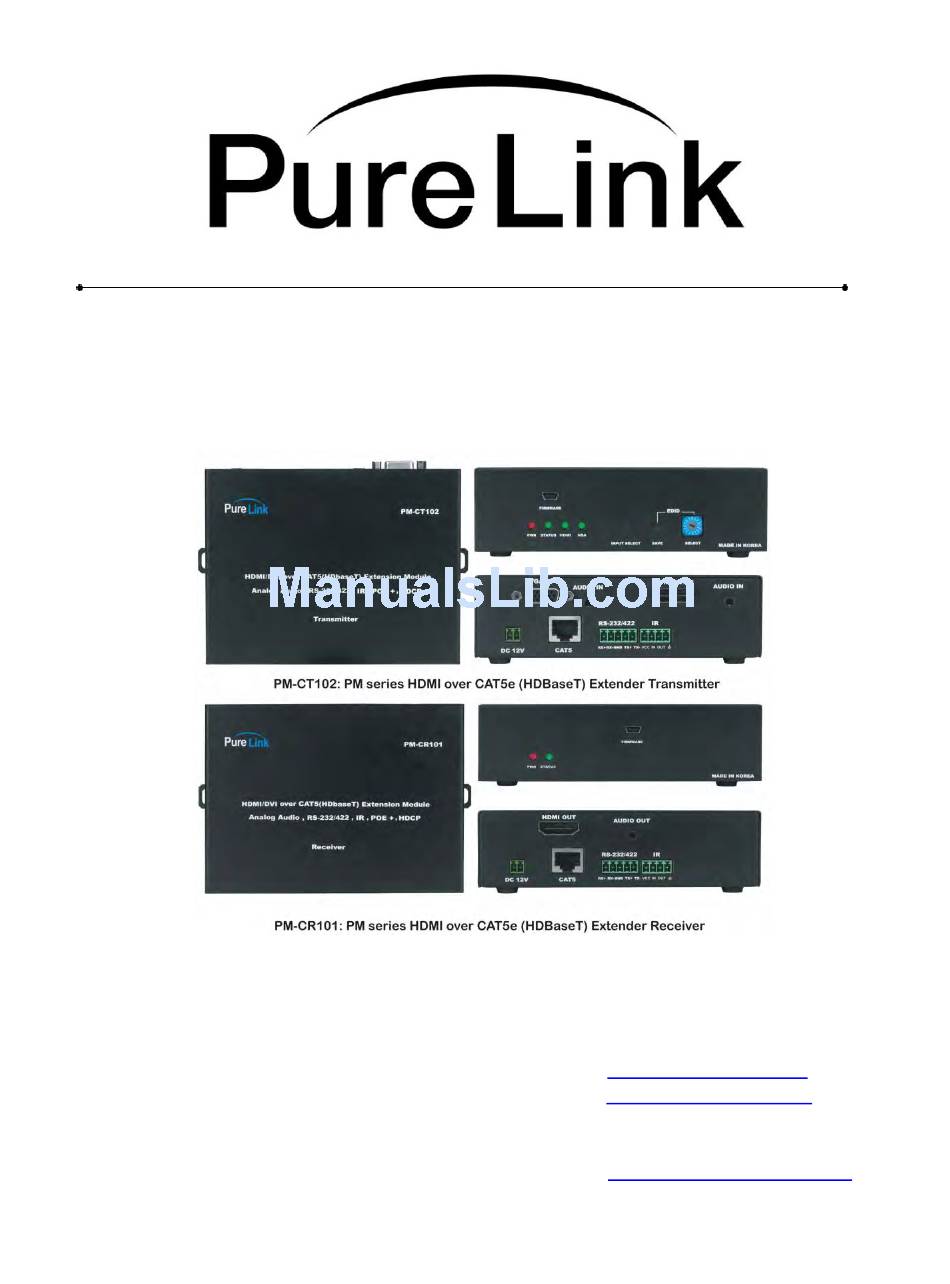

  • Page 1 PM Series CATx Extenders Owner’s Manual PM Series CATx Standalone and Wall-plate type Extender Website : www.purelinkav.com PureLink E-mail : info@purelinkav.com 535 East Crescent Ave Ramsey, NJ 07446 For Technical Support, contact us at Tel: 201.488.3232 Fax: 201.621.6118 support@purelinkav.com...

  • Page 2: Table Of Contents

    PureLink by Dtrovision ABLE OF ONTENTS Chapter 1. Introduction 1.1 Safety Precautions --------------------------------------------------------------------------- 1.2 Product Introduction -------------------------------------------------------------------------- 4 1.3 Package Contents ----------------------------------------------------------------------------- 4 Chapter 2. Features and Specifications 2.1 Features ----------------------------------------------------------------------------------------- 5 2.2 Transmitter Specifications ------------------------------------------------------------------ 6 PM-CT101(-D) ---------------------------------------------------------------------------------- 6...

  • Page 3: Chapter 1. Introduction

    PureLink by Dtrovision Chapter 1. Introduction 1.1 Safety Precautions When using and installing Dtrovision PureLink product, adhere to the following basic safety precautions.  Read and understand all instructions before using and installing this product.  The safety and operating instructions should be retained for future reference.

  • Page 4: Product Introduction

    1.2 Product Introduction Single CATx (HDBaseT) cable for video, audio, and control signal with POE PM series CATx (HDBaseT) extension system is designed to transmit video (DVI, HDMI or VGA), audio (Embedded or analog stereo audio), control (RS232/422 and IR), and power over a single CATx cable for long distance up to 330ft.

  • Page 5: Chapter 2. Features And Specifications

    2.1 Features ▶ Transmitters directly compatible with PM CATx (HDBaseT) Input Board PM CATx (HDBaseT) Transmitters can send signal directly to PM series Matrix Router's CATx (HDBaseT) Input Board, eliminating the need of matching Receiver. ▶ Receivers directly compatible with PM CATx (HDBaseT) Output Board PM CATx (HDBaseT) Receivers can receive signal directly from PM series Matrix Router's CATx (HDBaseT) Output Board, eliminating the need of matching Transmitter.

  • Page 6: Transmitter Specifications

    Ports to prevent any damage caused by Electrical Noise. ▶ POE Only one power supply is necessary to power both devices. When PM CATx (HDBaseT) extenders are used with PM series Matrix Router CATx Input and Output board, they can receive power from the Matrix Router. 2.2 Specifications...
  • Page 7 PureLink by Dtrovision Front Connection Ports: Power S/W: Power On/Off switch Power LED: Power status indicator Status LED: Video signal presence indicator HDMI/DVI LED: HDMI/DVI signal indicator EDID save S/W: EDID save button EDID select S/W: EDID library function selection rotary switch...

  • Page 8: Pm-Ct102(-D)

    PureLink by Dtrovision HDBaseT 0,1,2,3+/- Output Signal DVI / HDMI (Loop-thru) Data Transmission 3.4 Gbps/ch, Total 10.2 Gbps Max Speed PC: VGA ~ WUXGA Supporting Display (up to 1920 x 1200 @60Hz) Resolutions HDTV: 480i ~ 1080p, 2K4K Max. Distance...
  • Page 9 PureLink by Dtrovision PM-CT102-D : Standalone type (2x1 switch) Input: Selectable DVI or VGA + 3.5mm stereo audio (x2) + RS-232/422 + IR Output: CATx (HDBaseT) POE, 330ft, Compatible with PM-CIS4 input board Front Connection Ports: Power S/W: Power On/Off switch...
  • Page 10 PureLink by Dtrovision Back Connection Ports: HDMI/DVI In: HDMI/DVI input port VGA In: VGA (or component) input port Audio In: Stereo audio input port CAT5: HDBaseT output port RS-232/422: RS-232/422 communication port IR: IR communication port IR voltage: IR voltage selection switch (12V or 5V)

  • Page 11: Pm-Ct103

    PureLink by Dtrovision PM-CT103 : Wall plate type (2x1 switch), 2 Gang Decora style, white finish. Input: Selectable HDMI or VGA + 3.5mm stereo audio (x1) + RS-232 Output: CATx (HDBaseT) POE, 330ft, Compatible with PM-CIS4 input board Front Connection Ports:...
  • Page 12 PureLink by Dtrovision Model Name PM-CT103 DVI / HDMI (TMDS), VGA (supports YPbPr component) Input Signal 3.5mm stereo audio Output Signal HDBaseT0,1,2,3+/- Data Transmission 3.4 Gbps/ch, Total 10.2 Gbps Max Speed PC: VGA ~ WUXGA Supporting Display (up to 1920 x 1200 @60Hz)

  • Page 13: Transmitters Compatibility Chart

    PureLink by Dtrovision Transmitter Output Signal Characteristics Output Signal Description Unit Typical Input Signal Remarks Differential HDBaseT CAT5/e/6 LINK mVp-p AVcc Interface Output Analog Video Signal Supported Resolution - 640*480 60Hz - 1024*768 60Hz - 720*480p 60Hz - 640*480 72Hz...

  • Page 14: Receiver Specifications

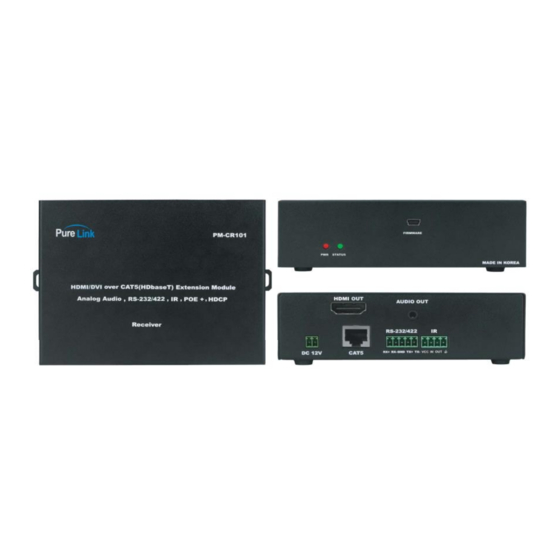

    PureLink by Dtrovision PM-CR101-RF6(-D) PM-CR101-RF6(-D) PM-CR101-RF6(-D) RF6 Compatibility PM-CR102-RF6(-D) PM-CR102-RF6(-D) PM-CR102-RF6(-D) PM Matrix Board PM-CIS4 PM-CIS4 PM-CIS4 Compatibility Receivers : PM-CR101 : Standalone type. Input: CATx (HDBaseT) Output: HDMI + 3.5mm stereo audio + RS-232/422 + IR POE, 330ft, Compatible with PM-COS4 output board PM-CR101-D : Standalone type.
  • Page 15 PureLink by Dtrovision Front Connection Ports: Power S/W: Power On/Off switch Power LED: Power status indicator Status LED: Video signal presence indicator Firmware: USB firmware update port Back Connection Ports: HDMI/DVI Out: HDMI/DVI output port Audio Out: Stereo audio output port...

  • Page 16: Pm-Cr102(-D)

    PureLink by Dtrovision Max. Distance 1920 x 1200 @ 60Hz or at 1080p : 330 ft (100m) DVI 29P/HDMI 19P Female 3.5mm Stereo Jack RJ-45 Jack Connector Type 2P /3.5MM Terminal Block (for Power) 4P /3.5MM Terminal Block (for RS-232/422) 5P /3.5MM Terminal Block (for IR)
  • Page 17 PureLink by Dtrovision Front Connection Ports: Power S/W: Power On/Off switch LCD Display: 16*2 LCD display Menu navigation button ▲▼◀▶: MENU: Menu and Enter button EXIT: Cancel and Exit button Back Connection Ports: HDMI/DVI Out: HDMI/DVI output port Audio Out: Stereo audio output port...

  • Page 18: Pm-Cr103

    PureLink by Dtrovision Conformations DVI 1.0 , HDMI 1.4, HDBaseT Image Scaler Sigma Design GF9452A HDCP Compliance Power Rating DC +12V, 15 Watts Max Dimension 6.3' x 5.7' x 1.7' (160 x 145 x 42 mm) Weight 1.77 lbs (0.80 Kg)
  • Page 19 PureLink by Dtrovision Model Name PM-CR103 Input Signal HDBaseT 0,1,2,3+/- DVI / HDMI (TMDS) Output Signal 3.5mm stereo audio Data Transmission 3.4 Gbps/ch, Total 10.2 Gbps Max Speed PC: VGA ~ WUXGA Supporting Display (up to 1920 x 1200 @60Hz)
  • Page 20 - 1280*1024 60Hz Scaling Receiver's Output resolution can be set via front panel control button or serial command from PM Series Matrix Router. OE: Output Extender Scaler Timing Select The "OE" is an initiation command for Output Extender Scaler timing selection. The characters and numbers that follow the "OE"...

  • Page 21: Receivers Compatibility Chart

    PureLink by Dtrovision 720p (59Hz) SVGA (800x600@75Hz) 1366x768@60Hz 720p (60Hz) XGA (1024x768@60Hz) 1440x900@60Hz 1080i (50Hz) XGA (1024x768@75Hz) 1920x1200@60Hz 1080i (59Hz) XGA (1024x768@85Hz) 1080i (60Hz) SXGA (1280x1024@60Hz) Example: Command Codes Action *255OEO01T00!  Set Output 1 Extender Scaler timing to Auto...

  • Page 22: Operation And Reliability Specification

    PureLink by Dtrovision Operation and Reliability Specification 1. Operating Environment Temperature : 50F ~ 104F (10℃~ 40℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max.

  • Page 23: Chapter 3. Installation And Operating Instruction

    6. Turn on source Operating Instruction EDID PM series Extenders provide Auto EDID management system; easy and fail safe way to handle EDID, via EDID library system and EDID emulation. What's EDID? Extended Display Identification Data (EDID) is an information set that digital display provides to describe its capabilities to a Video source.

  • Page 24: Cable Termination

    Extender will work out of the box without any additional configuration. Emulation The user can easily save an EDID data from any display devices directly onto the PM series Transmitter. By saving display device's EDID information on the Transmitter, it will act as a display to the Video source.
  • Page 25 PureLink by Dtrovision CATx Cable Termination (for CATx Input/Output Boards) PM series CATx (HDBaseT) extenders are designed TIA/EIA-566-B Standard. Please ensure that each PIN layout of the cable is corresponding with the picture below before connecting the cable. Please note that CATx or above level cable enables to deliver better quality and longer distance.

  • Page 26: Connector Pin Assignment

    PureLink by Dtrovision IR Cable Termination PM series CATx (HDBaseT) standalone type extenders supports both 5V and 12V and it can be selected by IR voltage switch on the side of the unit. Please choose the voltage that IR cable requires. (Factory default is 5V) * Please note that wall plate type extenders do not support IR signal transmission.
  • Page 27 PureLink by Dtrovision Part Number Pin No. Description Remark ECH350R-04 CAT5 LINK Part Number Pin No. Description Remark TIA/EIA-568B(Wire color) HDBT0+ Orange/ White Orange HDBT0- Green/ White HDBT1+ Blue HDBT2- RJ-45 Blue/ White HDBT2+ Green HDBT1- Brown/ White HDBT3+ Brown HDBT3- DVI-D Input &...
  • Page 28 PureLink by Dtrovision TMDS DATA 0/5 Shield TMDS DATA 5M(N.C) TMDS DATA 5P(N.C) TMDS DATA Clock Shield TMDS Clock P TMDS Clock M Input & Output HDMI Part Number Pin No. Description Remark TMDS DATA 2P TMDS DATA 2 Shield...

  • Page 29: Chapter 4. Additional Information

    PureLink shall not be liable for any damages whatsoever caused by Product or the failure of Product to perform, including incidental or consequential damages. PureLink shall not be liable for any claim made by a third party or made by the purchaser for a third party.

  • Page 30: Fcc/Ce Statement

    PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
