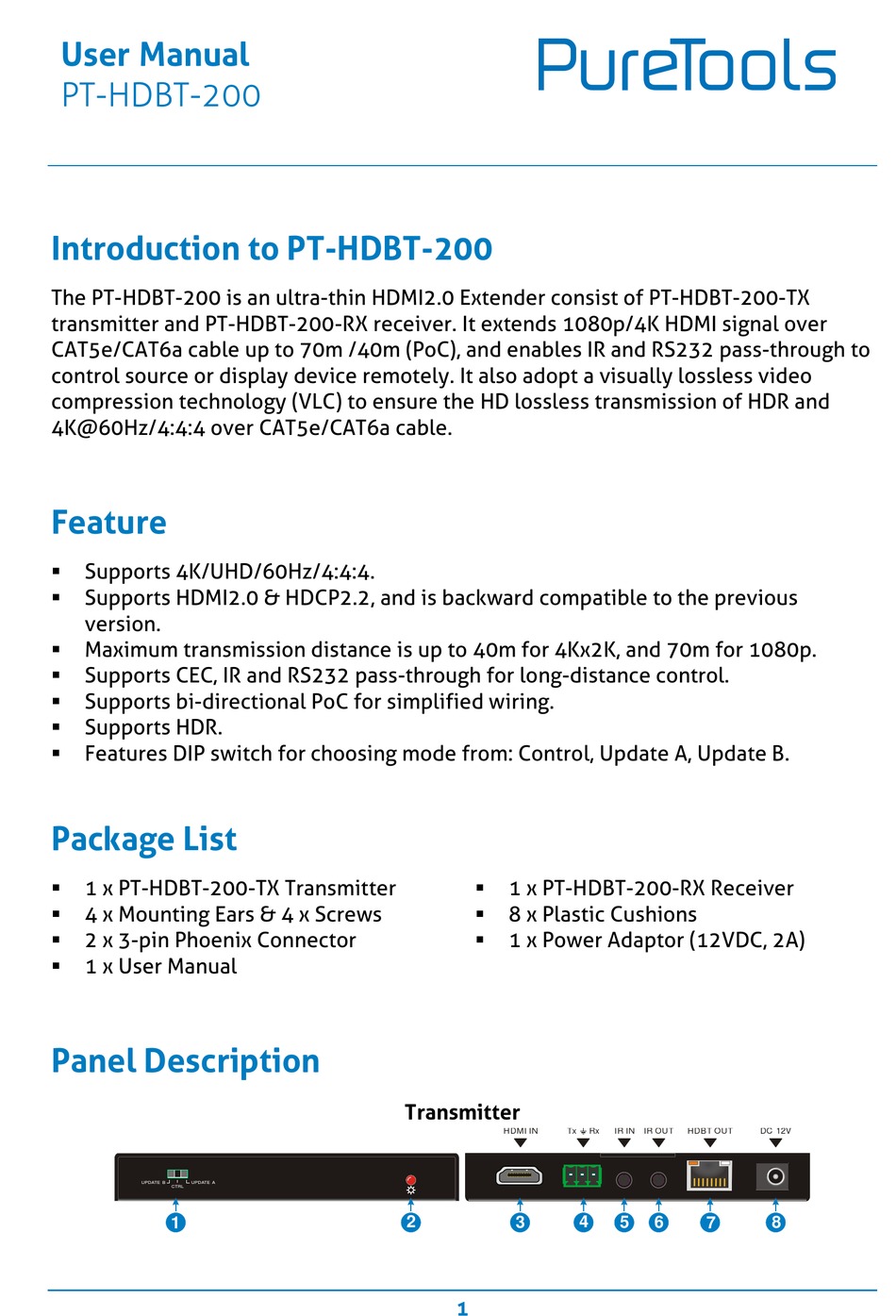

User Manual
PT-HDBT-200
Introduction to PT-HDBT-200
The PT-HDBT-200 is an ultra-thin HDMI2.0 Extender consist of PT-HDBT-200-TX
transmitter and PT-HDBT-200-RX receiver. It extends 1080p/4K HDMI signal over
CAT5e/CAT6a cable up to 70m /40m (PoC), and enables IR and RS232 pass-through to
control source or display device remotely. It also adopt a visually lossless video
compression technology (VLC) to ensure the HD lossless transmission of HDR and
4K@60Hz/4:4:4 over CAT5e/CAT6a cable.
Feature
Supports 4K/UHD/60Hz/4:4:4.

Supports HDMI2.0 & HDCP2.2, and is backward compatible to the previous

version.
Maximum transmission distance is up to 40m for 4Kx2K, and 70m for 1080p.

Supports CEC, IR and RS232 pass-through for long-distance control.

Supports bi-directional PoC for simplified wiring.

 Supports HDR.
Features DIP switch for choosing mode from: Control, Update A, Update B.


Package List

1 x PT-HDBT-200-TX Transmitter

 4 x Mounting Ears & 4 x Screws
2 x 3-pin Phoenix Connector

1 x User Manual


Panel Description

UPDATE B UPDATE A
CTRL
1
1 x PT-HDBT-200-RX Receiver

 8 x Plastic Cushions
1 x Power Adaptor (12VDC, 2A)

Transmitter
Tx
2
3
1
Rx HDBT OUT
4
5 6 7
DC 12V
8
