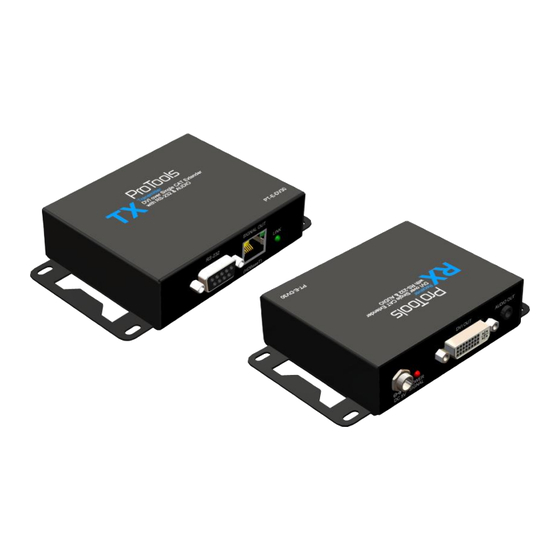

- Page 1 DVI Extender over Single Cat.X with RS-232 & Audio (HDBaseT Interface) User’s Guide Model no. PT-E-DV30 Designed in Germany Made in Taiwan © 2010 PureLink GmbH. All rights reserved. www.purelink.de...
-
Page 2: Table Of Contents
Section 1: Getting Started ....................3 Safety and Notice ....................3 Introduction ......................3 Package Contents ....................4 Panel Descriptions ....................4 Installation ......................6 Section 2: Specifications ....................6 Section 3: Notice ........................ 7 Section 4: Performance Guide ................... 7 www.purelink.de... -
Page 3: Section 1: Getting Started
The transmission distance between the sending (PT-E-DV30-TX) and receiving units (PT-E-DV30-RX) can be up to 100m (330ft) at XGA (1024x768@60Hz) and at UXGA (1600x1200@60Hz). With compact size, PT-E-DV30 is the most cost effective choice for bringing your impressive digital video to the remote display. -
Page 4: Package Contents
— 5V Power supply unit — User’s Guide Panel Descriptions FRONT PANEL — PT-E-DV30, transmitting unit (TX) +5V DC: Connect to 5V DC power supply. LED: Power indicator DVI-D INPUT: Connect to a DVI source with a DVI female-male cable here Audio Input www.purelink.de... - Page 5 REAR PANEL — PT-E-DV30, transmitting unit (TX) RS-232 to Host: Connect to PC serial port with a DSUB-9 female-male cable here SIGNAL OUT: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit PT-E-DV30-RX LED: TX/RX link indica FRONT PANEL —...
-
Page 6: Installation
5. Make sure your CAT-5/5e/6 cable is tightly connected and not loose. 6. Enjoy your high quality PC video on the screen. Section 2: Specifications Item Description Units Transmitting unit of PT-E-DV30 Receiving unit of PT-E-DV30 Unit Description Transmitter Receiver HDMI compliance DVI 1.1... -
Page 7: Section 3: Notice
Type of CAT5/6 cable Shielding Wiring CAT5 CAT5e CAT6 Unshielded (UTP) Solid Shielded (STP) Unshielded (UTP) Stranded Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at any time www.purelink.de... - Page 8 www.purelink.de...
