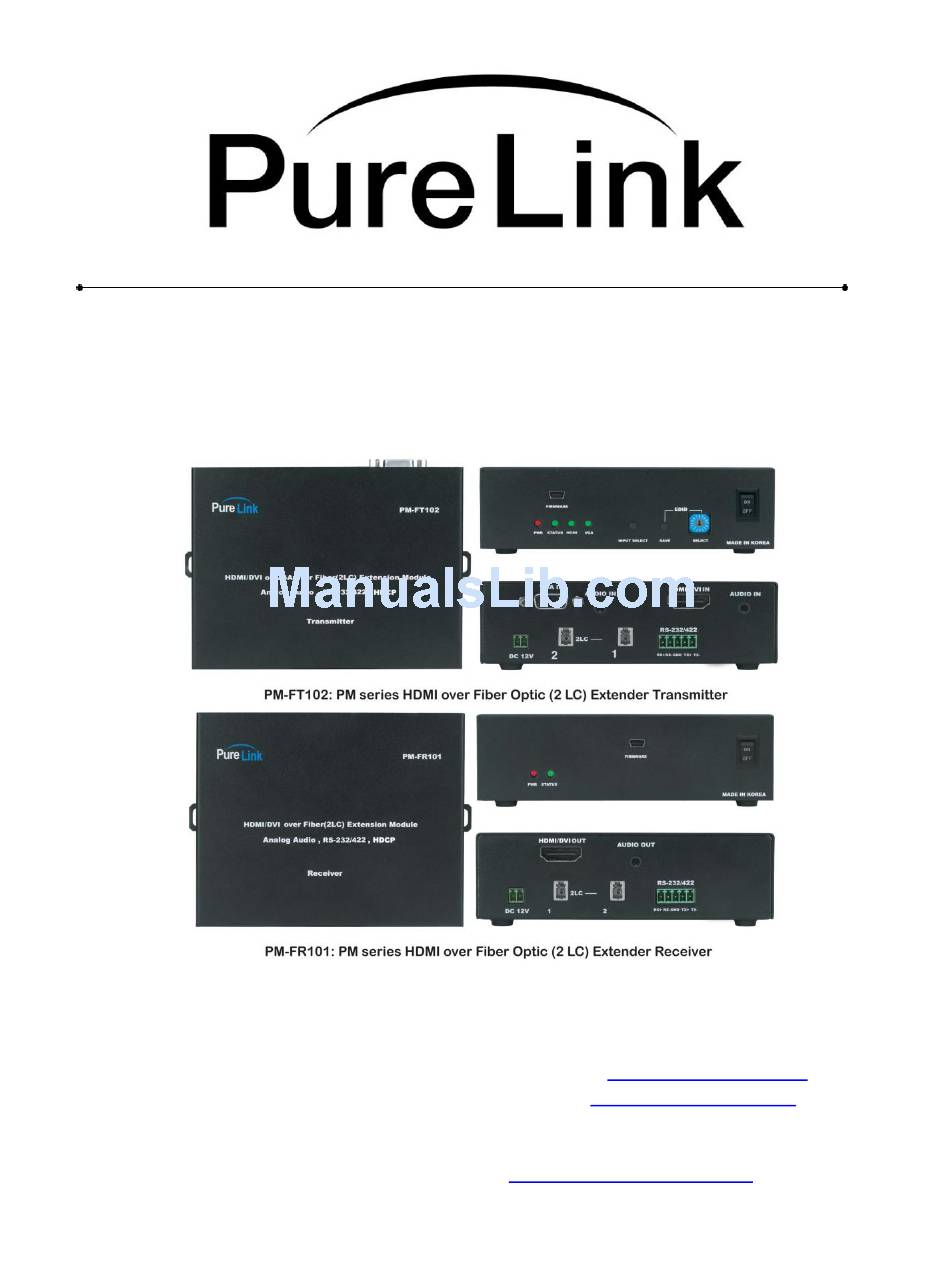

Page 1 PM Series Fiber Optic Extenders Owner’s Manual PM Series Fiber Optic Standalone and Wall-plate type Extender Website : www.purelinkav.com PureLink E-mail : info@purelinkav.com 535 East Crescent Ave Ramsey NJ 07446, USA For Technical Support, contact us at Tel: 201.488.3232 support@purelinkav.com...
Page 2: Table Of Contents
PureLink by Dtrovision ABLE OF ONTENTS Chapter 1. Introduction 1.1 Safety Precautions --------------------------------------------------------------------------- 1.2 Product Introduction -------------------------------------------------------------------------- 1.3 Package Contents ----------------------------------------------------------------------------- Chapter 2. Features and Specifications 2.1 Features ----------------------------------------------------------------------------------------- 2.2 Transmitter Specifications ------------------------------------------------------------------ PM-FT101 --------------------------------------------------------------------------------------- PM-FT102 --------------------------------------------------------------------------------------- PM-FT103 --------------------------------------------------------------------------------------- Transmitters Compatibility Chart ----------------------------------------------------------- 12 2.3 Receiver Specifications ---------------------------------------------------------------------- 13...
Page 3: Chapter 1. Introduction
PureLink by Dtrovision Chapter 1. Introduction 1.1 Safety Precautions When using and installing Dtrovision PureLink product, adhere to the following basic safety precautions.  Read and understand all instructions before using and installing this product.  The safety and operating instructions should be retained for future reference.
Page 4: Product Introduction
1.2 Product Introduction Pure fiber optic cable for video, audio, and control signal PM series Fiber Optic (2 LC) extension system is designed to transmit video (DVI, HDMI or VGA), audio (Embedded or analog stereo audio), control (RS232/422 and IR) over a pure LC to LC fiber optic cable for long distance up to 6,600ft.
Page 5: Chapter 2. Features And Specifications
2.1 Features ▶ Transmitters directly compatible with PM Fiber Optic Input Board PM Fiber Optic (2 LC) Transmitters can send signal directly to PM series Matrix Router's Fiber Optic Input Board, eliminating the need of matching Receiver. ▶ Receivers directly compatible with PM Fiber Optic Output Board PM Fiber Optic (2 LC) Receivers can receive signal directly from PM series Matrix Router's Fiber Optic Output Board, eliminating the need of matching Transmitter.
Page 6: Transmitter Specifications
PureLink by Dtrovision ▶ Plug-N-Play ▶ Resolutions up to WUXGA 1920x1200, HD 1080p @ 60Hz, and 4K2K ▶ Integrated Noise-cancellation and Error-correct Logic for both Input and Output Ports to prevent any damage caused by Electrical Noise. 2.2 Specifications Transmitters : PM-FT101 : Standalone type (Loop Through) Input: HDMI + 3.5mm stereo audio (x1) + RS-232/422...
Page 7 PureLink by Dtrovision Back Connection Ports: HDMI/DVI In: HDMI/DVI input port HDMI/DVI Out: HDMI/DVI Loop-thru output port Audio In: Stereo audio input port 2 LC: Fiber Optic output port RS-232/422: RS-232/422 communication port DC In: DC 12V Power port Model Name...
Page 8: Pm-Ft102
PureLink by Dtrovision PM-FT102 : Standalone type (2x1 switch) Input: Selectable HDMI/DVI or VGA + 3.5mm stereo audio (x2) + RS-232/422 Output: Fiber Optic (2 LC) 6,600ft, Compatible with PM-FIS4 input board Front Connection Ports: Power S/W: Power On/Off switch...
Page 9: Pm-Ft103
PureLink by Dtrovision Model Name PM-FT102 (HDMI version), PM-FT102-D (DVI version) DVI / HDMI (TMDS), VGA (supports YPbPr component) Input Signal 3.5mm stereo audio Output Signal Fiber Optical Output ( > -10dbm (after 6,600ft (2km) transmission)) Extinction Ratio > 4db (after 6,600ft (2km) transmission) Data Transmission 3.4 Gbps/ch, Total 10.2 Gbps Max...
Page 10 PureLink by Dtrovision Front Connection Ports: Power LED: Power status indicator Status LED: Video signal presence indicator HDMI LED: HDMI signal indicator VGA LED: VGA (or component) signal indicator EDID save S/W: EDID save button EDID select S/W: EDID library function selection rotary switch...
Page 11 PureLink by Dtrovision Extinction Ratio > 4db (after 6,600ft (2km) transmission) Data Transmission 3.4 Gbps/ch, Total 10.2 Gbps Max Speed PC: VGA ~ WUXGA Supporting Display (up to 1920 x 1200 @60Hz) Resolutions HDTV: 480i ~ 1080p, 2K4K Single Mode Fiber: 1920 x 1200 @ 60Hz or at 1080p : 6,600 ft (2km) Max.
Page 12: Transmitters Compatibility Chart
PureLink by Dtrovision Transmitter Output Signal Characteristics Output Signal Symbol Unit Typical Remarks Emission Λc1 1260 1310 1360 Center 1480 1550 1580 Λc2 Wavelength Analog Video Signal Supported Resolution - 640*480 60Hz - 1024*768 60Hz - 720*480p 60Hz - 640*480 72Hz...
Page 13: Receiver Specifications
PureLink by Dtrovision PM-FR101-RF6 PM-FR101-RF6 PM-FR101-RF6 RF6 Compatibility PM-FR102-RF6 PM-FR102-RF6 PM-FR102-RF6 PM Matrix Board PM-FIS4 PM-FIS4 PM-FIS4 Compatibility Receivers : PM-FR101 : Standalone type. Input: Fiber Optic (2 LC) Output: HDMI + 3.5mm stereo audio + RS-232/422 6,600ft, Compatible with PM-FOS4 output board...
Page 14: Pm-Fr102
PureLink by Dtrovision Model Name PM-FR101 (HDMI version), PM-FR101-D (DVI version) Input Signal Fiber Optical Output ( > -10dbm (after 6,600ft (2km) transmission)) Extinction Ratio > 4db (after 6,600ft (2km) transmission) DVI / HDMI (TMDS) Output Signal 3.5mm stereo audio Data Transmission 3.4 Gbps/ch, Total 10.2 Gbps Max...
Page 15 PureLink by Dtrovision Front Connection Ports: Power S/W: Power On/Off switch LCD Display: 16*2 LCD display ▲▼◀▶: Menu navigation button MENU: Menu and Enter button EXIT: Cancel and Exit button Back Connection Ports: HDMI/DVI Out: HDMI/DVI output port Audio Out: Stereo audio output port...
Page 16: Pm-Fr103
PureLink by Dtrovision Single Mode Fiber: 1920 x 1200 @ 60Hz or at 1080p : 6,600 ft (2km) Max. Distance Multi Mode Fiber: 1920 x 1200 @ 60Hz or at 1080p : 1,650 ft (500m) DVI 29P/HDMI 19P Female 3.5mm Stereo Jack...
Page 17 PureLink by Dtrovision HDMI Out: HDMI output port Audio Out: Stereo audio output port RS-232: RS-232 communication port Back Connection Ports: 2 LC: Fiber Optic Input port DC In: DC 12V Power port Model Name PM-FR103 Input Signal Fiber Optical Output ( > -10dbm (after 6,600ft (2km) transmission)) Extinction Ratio >...
Page 18 - 1280*1024 60Hz Scaling Receiver's Output resolution can be set via front panel control button or serial command from PM Series Matrix Router. OE: Output Extender Scaler Timing Select The "OE" is an initiation command for Output Extender Scaler timing selection. The...
Page 19: Receivers Compatibility Chart
PureLink by Dtrovision timing on selected Output. The last character “!” is found at the end of a command code which tells the system to execute the command. For a complete list of command characters and their functions, see examples below.
Page 20: Operation And Reliability Specification
PureLink by Dtrovision Operation and Reliability Specification 1. Operating Environment Temperature : 50F ~ 104F (10℃~ 40℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max.
Page 21: Chapter 3. Installation And Operating Instruction
PureLink by Dtrovision Chapter 3. Installation and Operating Instruction Installation Connection Instruction 1. Turn off both the video source and the display before connecting any cables 2. Connect LC terminated fiber optic cable between transmitter and receiver according to the picture below;...
Page 22 PureLink by Dtrovision PM series Extenders provide Auto EDID management system; easy and fail safe way to handle EDID, via EDID library system and EDID emulation. What's EDID? Extended Display Identification Data (EDID) is an information set that digital display provides to describe its capabilities to a Video source.
Page 23: Cable Termination
Extender will work out of the box without any additional configuration. Emulation The user can easily save an EDID data from any display devices directly onto the PM series Transmitter. By saving display device's EDID information on the Transmitter, it will act as a display to the Video source.
Page 24: Connector Pin Assignment
PureLink by Dtrovision Connector Pin Assignment DC Input Part Number Pin No. Description Remark VCC( DC12V) ECH350R-03 RS232/422 Part Number Pin No. Description Remark ECH350R-03 DVI-D Input & Output Part Number Pin No. Description Remark TMDS DATA 2M TMDS DATA 2P TMDS DATA 2/4 Shield TMDS DATA 4M(N.C)
Page 25 PureLink by Dtrovision TMDS DATA Clock Shield TMDS Clock P TMDS Clock M Input & Output HDMI Part Number Pin No. Description Remark TMDS DATA 2P TMDS DATA 2 Shield TMDS DATA 2M TMDS DATA 1P TMDS DATA 1 Shield...
Page 26: Chapter 4. Additional Information
Chapter 4. Additional Information Manufacturer’s Warranty (2-Year) Dtrovision warrants this PM series Matrix Router to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) year from the date of purchase from Dtrovision or its authorized resellers.
Page 27: Fcc/Ce Statement
PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
