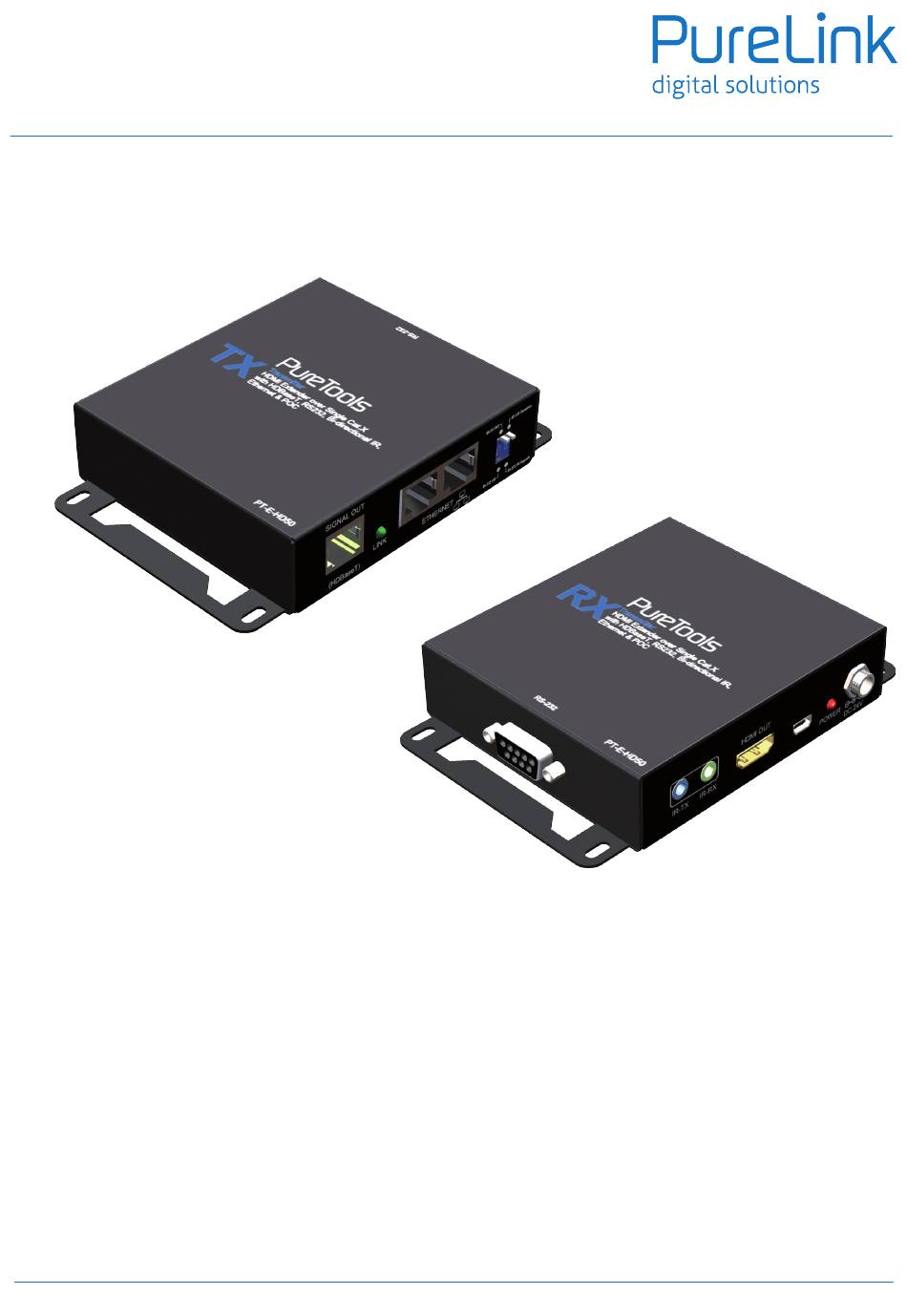

- Page 1 User Manual PT-E-HD50 To avoid EMI issue, complete STP Cat6 cable is strongly recommended! User Manual HDMI Extender over Single Cat.X with HDBaseT, RS232, Bi-directional IR, Ethernet & POC Model PT-E-HD50 Designed in Germany © 2016 PureLink GmbH All rights reserved.
-
Page 2: Table Of Contents
How- ever, like all electronic equipments, the PT-E-HD50 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction

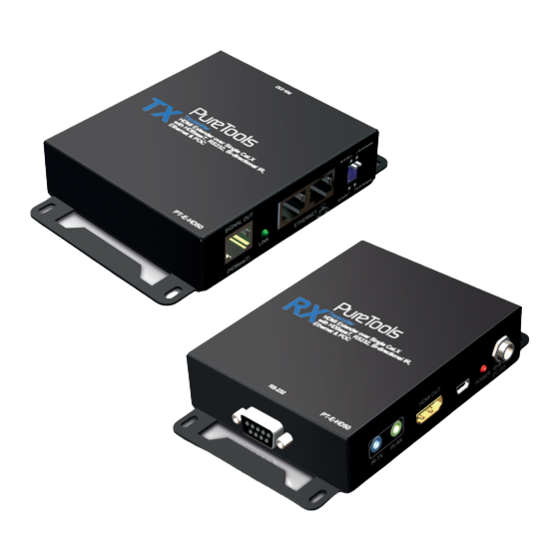

The PT-E-HD50 HDMI Extender over Single Cat.X with HDBaseT, RS232, Bi-directional IR, Ethernet & POC boosts up your video/audio transmission distance up to 100m (330ft) in HDTV 1080p with 48-bit color depth. PT-E-HD50 also supports the most advanced 3D video format complaint with HDMI specification and therefore guarantees the highest 3D video compatibility on the market. -
Page 4: Specification
User Manual PT-E-HD50 4. Specifications Technical Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI Deep Color, full 3D & 4K2K@30/40m HDCP compliance Video bandwidth Single-link 340MHz [10.2Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 HDMI over UTP... -
Page 5: Package Contents
User Manual PT-E-HD50 5. Package Contents • 1x PT-E-HD50 (TX & RX) • 1x IR blaster • 1x IR receiver • 2x DC 24V • 1x User Manual 6. Connection Diagram... -
Page 6: Panel Description
User Manual PT-E-HD50 7. Panel Description Transmitting unit PT-E-HD50 TX Front Panel 1. SIGNAL OUT: Plug in a Cat-5/5e/6 cable that needs to be linked to the transmitting unit RX. 2. LED: TX /RX link indicator 3. Ethernet port for LAN: Connect to network device 4. - Page 7 User Manual PT-E-HD50 Receiving unit PT-E-HD50 RX Front Panel 12. SIGNAL IN: Plug in a Cat-5/5e/6 cable that needs to be linked to the transmitting unit TX. 13. LED: TX /RX link indicator 14. Ethernet port for LAN: Connect to network device 15.
-
Page 8: Ir Pass-Through
User Manual PT-E-HD50 8. IR Pass-Through IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. -
Page 9: Hdmi Pin Definition
TMDS Clock+ 10. Installation 1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting unit PT-E-HD50-TX. 2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit PT-E-HD50-RX. 3. Connect IR Blaster/Receiver to both TX and RX units. -
Page 10: Software
User Manual PT-E-HD50 11. Software 1. Introduce What is HDBaseT Manager? HDBaseT Manager is the specialized software focusing on detecting the connecting environment and providing in-time investigation on the device that equipped Valens chip inside to find the potential problems in house efficiently and easily. - Page 11 User Manual PT-E-HD50 Check the current firmware version. The upper part reveals the IC type/firmware version on the TX and RX. Update the required firmware In the lower parts, we will see the information as below Whenever want to update the firmware, follow the steps as below : Step Action Select Local(TX) or Remote(RX) for firmware Update. Select the firmware file from your PC Review the file information of the selected firmware.
- Page 12 User Manual PT-E-HD50 3. Status (Connecting) *Note: the setting will affect the status page and Brun-in Test function work. Push in the corner to get all the information of connecting.
- Page 13 User Manual PT-E-HD50 4. Check the status of connecting In upper part, it will reveal the Valens Mode and Source type. If Connected successfully, you will see the shown as below : • Normal • If fail to connect, you will get the status as below : Indication radio the light to recognize the connection condition • To review the Status of connecting, HDBaseT Manager analyze in 4 directoins...
- Page 14 User Manual PT-E-HD50 • If the status is good, the light should always keep green without yellow or red. • If the status is poor, the light will turn to yellow or red.
- Page 15 User Manual PT-E-HD50 5. Burn-In Test Get the technical file to analyze the unusual situation If the connection is fine, the lines will stay straight all the time.
- Page 16 User Manual PT-E-HD50 Select the required polling period and push to get the data. Select and send the file to the engineer for analyzing.
- Page 17 User Manual PT-E-HD50 6. Fail-Safe Setting Setting & saving the setting into on board MCU to ensure the stability during transmission. Through this manual setting, the device will be able to re-set once the selected conditions are fulfilled at the same time, this will ensure the quality and stability when signals transmission. Sensitivity for fail-safe mechanism. quality in wire, please choice 48, vice versa Select the STD for video error, according to HDMI association, the tolerance of Bit Error in transmit should be less than 10-9 ,we use -9 to stand for this, so if you are in high tolerance in signals transmit error, please choice -8 for standard.
- Page 18 User Manual PT-E-HD50 Select the time interval, actually, our device will detect the factors every 0.5 second, if the above trouble (wire quality/ video error) last as long as the set time interval, the device will reset automatically to ensure the good quality in signal transmit. When you choice 30s, that means once the trouble (wire quality/ video error) last for 30s(non-stop), the machine will re-set immediately, that is, if you are in higher tolerance in the time interval of trouble, you can select 40 second or above. • The combination we suggest for standard usage is as below: Wire Quality: 64 Video Error: -8 Time: 30 seconds Push to finish the setting.
-
Page 19: Notice
User Manual PT-E-HD50 12. Notice 1. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C & VG-870B. 2. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check ca- refully before plugging in the IR extender to the respective IR sockets. -
Page 20: Warranty
PT-E-HD50 13. Limited Warranty The SELLER warrants the PT-E-HD50 HDMI Extender over Single Cat.X with HDBaseT, RS232, Bi-directional IR, Ethernet & POC free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer.
