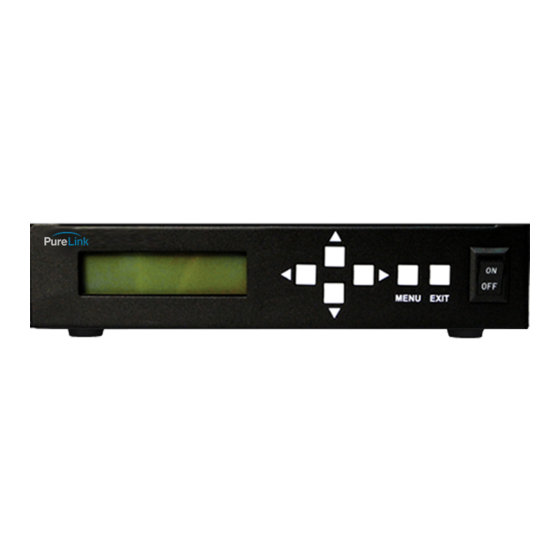

PureLink PureMedia PM-CT101-U Owner's Manual

4k catx (hdbaset) extenders
Hide thumbs
Table of Contents

Advertisement

Quick Links

PureMedia 4K CATx (HDBaseT)
Extenders Owner's Manual
PureMedia CATx (HDBaseT) Standalone and Wall-plate type Extender
PureLink
535 East Crescent Ave
Ramsey, NJ 07446
Tel: 201.488.3232
Fax: 201.621.6118
TM
Website :
www.purelinkav.com
E-mail :
info@purelinkav.com
For Technical Support, contact us at
:
support@purelinkav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PureMedia PM-CT101-U and is the answer not in the manual?

Questions and answers

Related Manuals for PureLink PureMedia PM-CT101-U

Summary of Contents for PureLink PureMedia PM-CT101-U

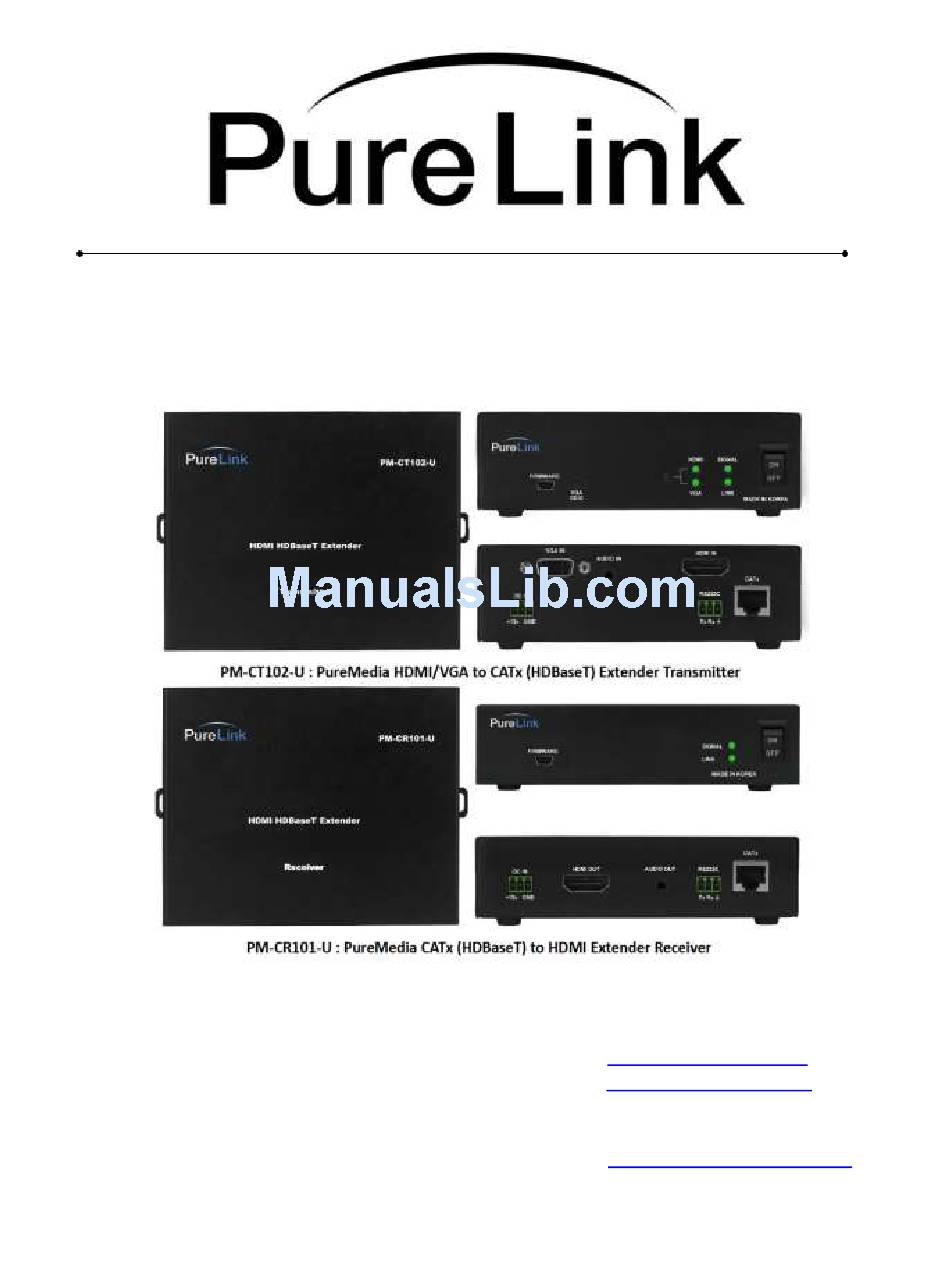

  • Page 1 PureMedia 4K CATx (HDBaseT) Extenders Owner’s Manual PureMedia CATx (HDBaseT) Standalone and Wall-plate type Extender PureLink Website : www.purelinkav.com E-mail : info@purelinkav.com 535 East Crescent Ave Ramsey, NJ 07446 For Technical Support, contact us at Tel: 201.488.3232 Fax: 201.621.6118 support@purelinkav.com...

  • Page 2: Table Of Contents

    PureLink by Dtrovision ABLE OF ONTENTS Chapter 1. Introduction 1.1 Safety Precautions --------------------------------------------------------------------------- 1.2 Product Introduction -------------------------------------------------------------------------- 4 1.3 Package Contents ----------------------------------------------------------------------------- 4 Chapter 2. Features and Specifications 2.1 Features ----------------------------------------------------------------------------------------- 5 2.2 Transmitter Specifications ------------------------------------------------------------------ 7 PM-CT101-U-------------------------------------------------------------------------------------- 7 PM-CT102-U--------------------------------------------------------------------------------------- 9...

  • Page 3: Chapter 1. Introduction

    Chapter 1. Introduction 1.1 Safety Precautions When using and installing Dtrovision PureLink product, adhere to the following basic safety precautions.  Read and understand all instructions before using and installing this product.  The safety and operating instructions should be retained for future reference.

  • Page 4: Product Introduction

    PureLink by Dtrovision Welcome! Congratulations on your purchase of the PureLink PureMedia CATx (HDBaseT) extender. This manual contains information that will assist you in installing and operating the product. 1.2 Product Introduction Single CATx (HDBaseT) cable for video, audio and control signal with POE...

  • Page 5: Chapter 2. Features And Specifications

    PureLink by Dtrovision Chapter 2. Features and Specifications 2.1 Features  Zero loss & Zero noise delivery Zero loss & zero noise delivery of digital high definition video and audio signal using UTP connection, PureMedia CATx (HDBaseT) extender delivers HD signals over CAT5/6/7-type cables without loss or digital interference maintaining the clarity and colors.
  • Page 6 7.1 Channel Dolby TruHD & DTS MasterHD  Real Time EDID PureLink's real time EDID features failsafe, constant and continuous EDID for source devices.  Various Transmitter and Receiver Choices There are three different type of transmitters and three different type of receivers to make today's sophisticated digital AV environment simple and flexible.
  • Page 7 PureLink by Dtrovision 2.2 Specifications Transmitters : PM-CT101-U : Standalone type Input : HDMI + 3.5mm stereo audio (x1) + RS-232 Output : CATx (HDBaseT) POE, 330ft, Compatible with PM-CIS4-U input board PM-CT101-U : PureMedia HDMI to CATx (HDBaseT) Extender Transmitter...

  • Page 8: Pm-Ct101-U

    PureLink by Dtrovision Model Name PM-CT101-U Input Signal DVI / HDMI (TMDS),3.5mm stereo audio Output Signal HDBaseT0,1,2,3+/- Data Transmission Speed 3.4 Gbps/ch, Total 10.2 Gbps Max PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz) HDTV: 480i ~ 1080p,...
  • Page 9 PureLink by Dtrovision PM-CT102-U : Standalone type (2x1 switch) Input : Selectable HDMI/DVI or VGA + 3.5mm stereo audio (x1) + RS-232 Output : CATx (HDBaseT) POE, 330ft, Compatible with PM-CIS4-U input board PM-CT102-U : PureMedia HDMI/VGA to CATx (HDBaseT) Extender Transmitter...

  • Page 10: Pm-Ct102-U

    PureLink by Dtrovision Model Name PM-CT102-U DVI / HDMI (TMDS), VGA (supports YPbPr component) Input Signal 3.5mm stereo audio Output Signal HDBaseT0,1,2,3+/- Data Transmission Speed 3.4 Gbps/ch, Total 10.2 Gbps Max PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz)
  • Page 11 PureLink by Dtrovision PM-CT103-U : Wall plate type (2x1 switch), 2 Gang Decora style, white finish. Input : Selectable HDMI or VGA + 3.5mm stereo audio (x1) + RS-232 Output : CATx (HDBaseT) POE, 330ft, Compatible with PM-CIS4-U input board...

  • Page 12: Pm-Ct103-U

    PureLink by Dtrovision Model Name PM-CT103-U DVI / HDMI (TMDS), VGA (supports YPbPr component) Input Signal 3.5mm stereo audio Output Signal HDBaseT0,1,2,3+/- Data Transmission Speed 3.4 Gbps/ch, Total 10.2 Gbps Max PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz)
  • Page 13 PureLink by Dtrovision PM-CT104-U : Standalone type Input : HDMI (x1) + RS-232 Output : CATx (HDBaseT) POE, 330ft, Compatible with PM-CIS4-U input board PM-CT104-U : PureMedia HDMI to CATx (HDBaseT) Extender Transmitter Front Connection Ports: Back Connection Ports: HDMI LED: Video signal presence indicator...

  • Page 14: Pm-Ct104-U

    PureLink by Dtrovision Model Name PM-CT104-U Input Signal DVI / HDMI (TMDS) Output Signal HDBaseT0,1,2,3+/- Data Transmission Speed 3.4 Gbps/ch, Total 10.2 Gbps Max PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz) HDTV: 480i ~ 1080p, Up to Ultra HD 4K...
  • Page 15 PureLink by Dtrovision Transmitter Input Signal Characteristics Input Signal Description Unit Typical Remarks DC Voltage 11.5 12.5 DC input Power Consumption Watts 13.5 13.8 14.4 DVI input TMDS Differential Output mVp-p (29Pin DVI) Interface HDMI input TMDS Differential Output mVp-p...

  • Page 16: Transmitters Compatibility Chart

    PureLink by Dtrovision Digital Video Signal Supported Resolution: - PC resolution: VGA ~ WUXGA @ 60Hz (1920 x 1200 @ 60Hz) - HDTV resolution: 480i ~ 1080p @ 60Hz, 4K2K PureMedia CATx Transmitter Compatibility Chart Transmitters PM-CT101-U PM-CT102-U PM-CT103-U PM-CT104-U...
  • Page 17 PureLink by Dtrovision Receivers : PM-CR101-U : Standalone type. Input : CATx (HDBaseT) Output : HDMI + 3.5mm stereo audio + RS-232 POE, 330ft, Compatible with PM-COS4-U output board PM-CR101-U : PureMedia CATx (HDBaseT) to HDMI Extender Receiver Front Connection Ports:...

  • Page 18: Pm-Cr101-U

    PureLink by Dtrovision Model Name PM-CR101-U Input Signal HDBaseT 0,1,2,3+/- Output Signal DVI / HDMI (TMDS), 3.5mm stereo audio Data Transmission Speed 3.4 Gbps/ch, Total 10.2 Gbps Max PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz) HDTV: 480i ~ 1080p,...

  • Page 19: Pm-Cr102-U

    PureLink by Dtrovision PM-CR102-U : Standalone type. Built-in auto scaler Input : CATx (HDBaseT) Output : HDMI + 3.5mm stereo audio + RS-232 330ft, Compatible with PM-COS4-U output board PM-CR102-U : PureMedia CATx (HDBaseT) to HDMI Extender Receiver w/Scaling Front Connection Ports:...
  • Page 20 PureLink by Dtrovision (RGB/YCbCr 4:4:4 8 bits, YCbCr 4:2:2 8/10/12 bits) 4096 x 2160 @50/60Hz (YCbCr 4:2:0 8 bits) Max. Distance 1920 x 1200 @ 60Hz or at 1080p, Ultra HD 4K : 330 ft. (100m) DVI 29P/HDMI 19P Female (x 1) 3.5mm Stereo Jack...
  • Page 21 PureLink by Dtrovision PM-CR103-U : Wall plate type, 2 Gang Decora style, white finish. Input : CATx (HDBaseT) Output : HDMI + RS-232 POE, 330ft, Compatible with PM-COS4-U output board PM-CR103-U : PureMedia CATx (HDBaseT) to HDMI Extender Receiver, Wall plate...

  • Page 22: Pm-Cr103-U

    PureLink by Dtrovision Model Name PM-CR103-U Input Signal HDBaseT 0,1,2,3+/- Output Signal DVI / HDMI (TMDS), 3.5mm stereo audio Data Transmission 3.4 Gbps/ch, Total 10.2 Gbps Max Speed PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz) HDTV: 480i ~ 1080p,...
  • Page 23 PureLink by Dtrovision PM-CR104-U : Standalone type. Input : CATx (HDBaseT) Output : HDMI + RS-232 POE, 330ft, Compatible with PM-COS4-U output board PM-CR104-U : PureMedia CATx (HDBaseT) to HDMI Extender Receiver Front Connection Ports: Back Connection Ports: Signal LED: Video signal presence indicator...

  • Page 24: Pm-Cr104-U

    PureLink by Dtrovision Model Name PM-CR104-U Input Signal HDBaseT 0,1,2,3+/- Output Signal DVI / HDMI (TMDS) Data Transmission Speed 3.4 Gbps/ch, Total 10.2 Gbps Max PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz) HDTV: 480i ~ 1080p, Up to Ultra HD 4K...

  • Page 25: Receivers Compatibility Chart

    PureLink by Dtrovision Receiver Input Signal Characteristics Input Signal Description Unit Typical Remarks DC Voltage 11.5 12.5 DC input Power Watts 13.5 13.8 14.4 Consumption Differential HDBaseT CAT5/e/6 LINK mVp-p AVcc Interface Output Receiver Output Signal Characteristics Output Signal Description...

  • Page 26: Operation And Reliability Specification

    PureLink by Dtrovision Operation and Reliability Specification 1. Operating Environment Temperature : 50F ~ 104F (10℃~ 40℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max.

  • Page 27: Chapter 3. Installation And Operating Instruction

    PureLink by Dtrovision Chapter 3. Installation and Operating Instruction 3.1 Installation Connection Instruction 1. Turn off the video source and the display before connecting any cables 2. Connect CATx cable between the PureMedia CATx (HDBaseT) transmitter and the receiver (or PM-CIS4-U, PureMedia CATx (HDBaseT) input board, and PM-COS4-U, PureMedia CATx (HDBaseT) output board).

  • Page 28: Cable Termination

    PureLink by Dtrovision EDID handshake may sound simple; however, with multiple peripheral devices within the chain, display's EDID information easily get lost or blocked while it is traveling to the source device. PureMedia Extenders provide Auto EDID management system to meet today's sophisticated digital connectivity integration environment.

  • Page 29: Connector Pin Assignment

    PureLink by Dtrovision 3.4 Connector Pin Assignment DC Input Part Number Pin No. Description Remark VCC( DC12V) ECH350R-03 RS232 Part Number Pin No. Description Remark ECH350R-03 CATx TIA/EIA-568B Part Number Pin No. Description Remark (Wire color) Orange/ White HDBT0+ RJ-45...
  • Page 30 PureLink by Dtrovision Blue HDBT2- Blue/ White HDBT2+ Green HDBT1- Brown/ White HDBT3+ Brown HDBT3- DVI-D Input & Output Part Number Pin No. Description Remark TMDS DATA 2M TMDS DATA 2P TMDS DATA 2/4 Shield TMDS DATA 4M(N.C) TMDS DATA 4P(N.C)
  • Page 31 PureLink by Dtrovision Input & Output HDMI Part Number Pin No. Description Remark TMDS DATA 2P TMDS DATA 2 Shield TMDS DATA 2M TMDS DATA 1P TMDS DATA 1 Shield TMDS DATA 1M TMDS DATA 0P TMDS DATA 0 Shield...

  • Page 32: Chapter 4. Additional Information

    (5) years parts for ,and three (3) years on labor from the date of purchase from PureLink or its authorized resellers. If the product does not operate as warranted during the applicable warranty period, PureLink shall, at its option and expense, execute one of the following as necessary: 1.

  • Page 33: Fcc/Ce Statement

    PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
