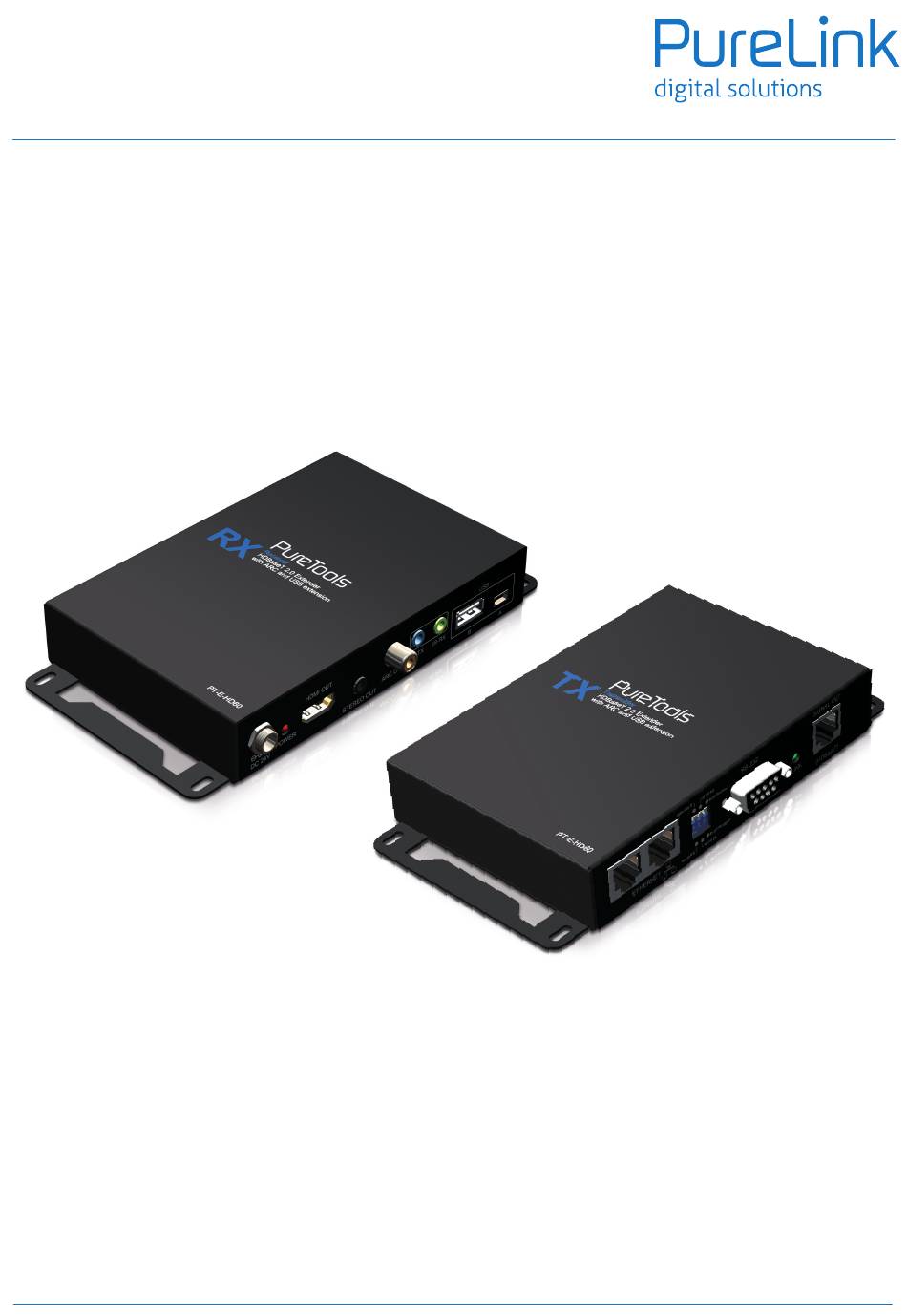

- Page 1 User Manual PT-E-HD60 User Manual HDBaseT 2.0 Extender with ARC and USB extension Model PT-E-HD60 Designed in Germany © 2016 PureLink GmbH All rights reserved.
-
Page 2: Table Of Contents
..................1. Safety and Notice The PT-E-HD60 HDBaseT 2.0 Extender with RS-232, Bi-directional IR, Ethernet, PoC & USB2.0 has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the PT-E-HD60 should be used with care. -
Page 3: Introduction

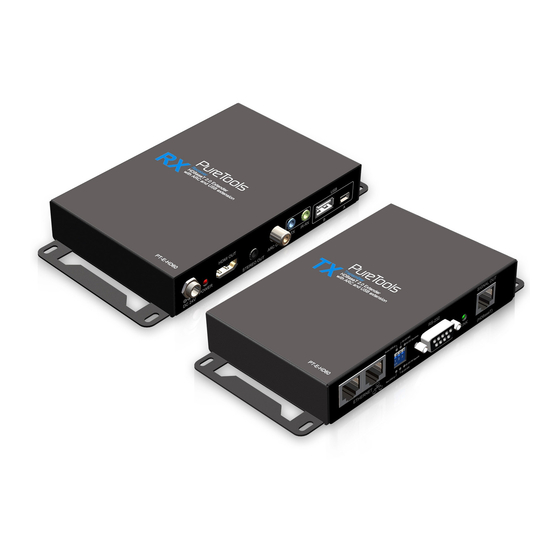

PT-E-HD60 2. Introduction The PT-E-HD60 HDBaseT 2.0 Extender with RS-232, Bi-directional IR, Ethernet, PoC & USB2.0 boosts up your vi- deo/audio transmission distance up to 100m (330ft) in HDTV 1080p with 48-bit color depth or 80m (264ft) at 4K2K@60 4:2:0 8bit. PT-E-HD60 also supports the most advanced 3D video format complaint with HDMI spe- cification and therefore guarantees the highest 3D video compatibility in the market. -
Page 4: Specification
User Manual PT-E-HD60 4. Specifications Technical Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI Deep Color, full 3D & 4K2K@60 4:2:0 8bit HDCP compliance Video bandwidth Single-link 340MHz [10.2Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 / 4K2K@60 4:2:0 8bit... -
Page 5: Package Contents
Max 12W Operation temperature 0-50°C Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 5. Package Contents • 1x PT-E-HD60 (TX & RX) • 1x IR blaster • 1x IR receiver • 1x DC 24V1A • 1x User Manual... -
Page 6: Connection Diagram
User Manual PT-E-HD60 6. Connection Diagram... -
Page 7: Panel Description
User Manual PT-E-HD60 7. Panel Description Transmitting unit PT-E-HD TX Front Panel 1. Ethernet port for LAN: Connect to network device 2. DIP Switch: PIN#1: Setup the USB communication PIN#2: Setup the RS-232 mode for serial communication channel PIN#3: For Firmware Update 3. - Page 8 User Manual PT-E-HD60 7. Panel Description Receiving unit PT-E-HD RX Front Panel 15. Ethernet port for LAN: Connect to network device 16. DIP Switch: PIN#1: Setup the USB communication PIN#2: Setup the RS-232 mode for serial communication channel PIN#3: For Firmware Update 17.
-
Page 9: Ir Pass-Through
User Manual PT-E-HD60 * DIP Switch Position (TX/RX) DIP Switch Position Description TX & RX ON [] As an USB Host (USB Type-mini-B port) PIN#1 OFF [] As an USB Device (USB Type A port) ON [] TxD: The 2nd pin of RS-232, which is in charge of sending data... -
Page 10: Hdmi Pin Definition
User Manual PT-E-HD60 Definition of IR Earphone Jack IR Blaster IR Receiver You can buy any IR extension cables in the market that are compatible to the definition of the IR sockets for the matrix if necessary for replacement use. However, IR cables longer than 2m (6-ft) may not work. -
Page 11: Hardware Installation
PT-E-HD60 10. Hardware Installation 1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting unit PT-E-HD60-TX. 2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit PT-E-HD60-RX. 3. Connect IR Blaster/Receiver to both TX and RX units. -
Page 12: Warranty
PT-E-HD60 12. Limited Warranty The SELLER warrants the PT-E-HD60 HDBaseT 2.0 Extender with RS-232, Bi-directional IR, Ethernet, PoC & USB2.0 free from defects in the material and workmanship for 1 year from the date of purchase from the SEL- LER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge. This warranty is...
