- Page 1 User Manual PT-E-USB50 User Manual USB 2.0 Extender (50M) PT- E-USB50 Model Designed in Germany VersionV1.0 © 2022 PureLink GmbH All rights reserved.
- Page 2 User Manual PT-E-USB50 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. In the constant effort to improve our product, we reserve the right to make changes in functions or parameters without prior notice or obligation.
- Page 3 PT-E-USB50 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-E-USB50 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT- E-USB50 complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-E-USB50 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and ...
-
Page 5: Table Of Contents
User Manual PT-E-USB50 Content 1. Product Introduction......................1.1 Introduction........................1.2 Features..........................1.3 Package List........................2. Panel Description........................2.1 Transmitter panel......................2.2 Receiver panel......................... 3. Specification........................... 4. System Diagram........................5. After-Sales Service....................... Asking for Assistance........................ -
Page 6: Product Introduction

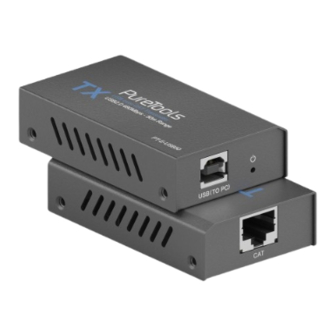

User Manual PT-E-USB50 1. Product Introduction 1.1 Introduction The USB 2.0 Extender can extend full 480Mbs bandwidth USB signals up to 50 meters via Cat 5e/6cable (The transmission distance is limited to 40 meters for some USB 2.0 Hubs). The transmitter is connected to the USB-B port of a PC or laptop. The receiver connects to up to two USB devices such as, mouse, keyboard, touch screen or camera etc. -
Page 7: Panel Description
User Manual PT-E-USB50 Note: Please contact your distributor immediately if any damage or defect in the components is found. 2. Panel Description 2.1 Transmitter Layout Name Function Description Use USB-B male head to USB-A male head line to connect a USB port PC’s USB port. -
Page 8: Receiver Panel
User Manual PT-E-USB50 2.1 Receiver Layout DEVICE USB 2.0 USB 2.0 DC 5V Name Function Description USB 2.0 port Connect to a device with USB port such as a camera or a HID device. Power LED indicator. The green LED will illuminate when the POWER LED receiver is connected power supply. -
Page 9: Specification
User Manual PT-E-USB50 3. Specification Technical USB protocol USB 2.0 Transmission rate Up to 480Mbps Transmission 50M (Note: The transmission distance can only up to 40 Distance meters for some USB 2.0 Hub) Human-body Model: ESD Protection ±8kV (Air-gap discharge) , ±4kV (Contact discharge) Connection Input port: 1×USB [USB-B, female] Transmitter... -
Page 10: System Diagram
User Manual PT-E-USB50 4. System Diagram The following diagram illustrates a typical usage scenario for this extender: Transmitter Cat 5e/6 DEVICE USB 2.0 USB 2.0 DC 5V Receiver Power Supply Camera Keyboard... - Page 11 User Manual PT-E-USB50 Usage Precaution • Make sure all components and accessories are included before installation. • System should be installed in a clean environment with proper temperature and humidity. • All of the power switches, plugs, sockets, and power cords should be insulated and safe.
-
Page 12: After-Sales Service
User Manual PT-E-USB50 5. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. Product Limited Warranty: This workmanship for three years (The Proof of purchase in the form of a bill of sale or receipted invoice which is Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the Warranty period must be presented to warranty service. -
Page 13: Asking For Assistance
Asking for Assistance Technical Support: Phone: +49 5971 800299 Fax: +49 5971 800299 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de info@purelink.de...
