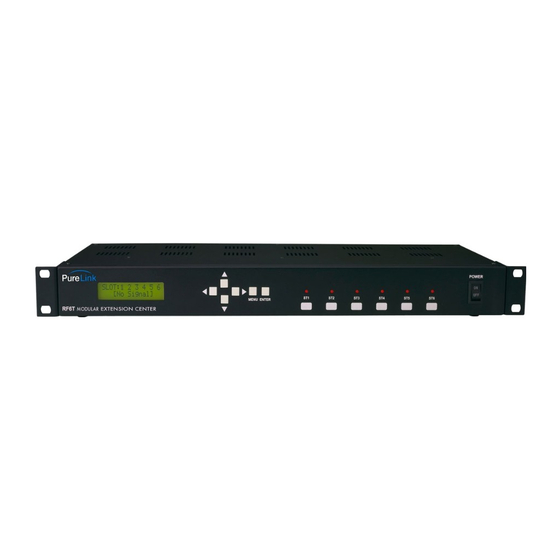

PureLink RF6 Owner's Manual

Rack mountable fiber optic/cat5 dvi/hdmi modular extension center
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RF6 Extension System
Rack Mountable Fiber Optic/CAT5 DVI/HDMI
Modular Extension Center
Owner's Manual
Dtrovision LLC
9A Bergen Turnpike
Little Ferry, NJ 07643
USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
Email: support@dtrovision.com
www.dtrovision.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@dtrovision.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF6 and is the answer not in the manual?

Questions and answers

Related Manuals for PureLink RF6

Summary of Contents for PureLink RF6

  • Page 1 RF6 Extension System Rack Mountable Fiber Optic/CAT5 DVI/HDMI Modular Extension Center Owner’s Manual Dtrovision LLC 9A Bergen Turnpike Little Ferry, NJ 07643 Tel: +1.201.488.3232 Fax: +1.201.621.6118 Email: support@dtrovision.com www.dtrovision.com For order support, please contact your local dealer. For technical support, please contact us at...
  • Page 2 RF6 Package Contents Please make sure all of the following items are included in the package; 1) RF6 Main Frame 2) Transmitter/Receiver modules (if purchased separately) 3) DC 12V Power Supply Unit with a power cord 4) Rack ears 5) User Manual...

  • Page 3: General Specification

    DVI/HDMI signals with audio. • Intuitive LCD panel on both RF6 show the status of the video and audio signals including the current signal image format and audio format. This information provides helpful diagnostic...
  • Page 4 Model RF6 Extension System DVI, HDMI, 3.5mm Analog Audio Input Signal Optional RS-232, IR DVI, HDMI, 3.5mm Analog Audio Output Signal Optional RS-232, IR Supporting Display VGA ~WUXGA(up to 1920 x 1200 @ 60Hz) , Resolutions 480i ~ 1080p CAT5 Modules:...

  • Page 5: Operation And Reliability Specification

    Operation and Reliability Specification 1. Operating Environment Temperature: 50F ~ 104F (10℃~ 40℃) Humidity: 10% ~ 80% Altitude: 3,000m Max. 2. Transit Environment Temperature: -13F ~ 140F (-25℃~ 60℃) Humidity: 5% ~ 95% Altitude: 15,000m Max. 3. Storage Environment Temperature: -4F ~ -49F (-20℃~ 45℃) Humidity: 5% ~ 95% Altitude: 3,000m Max.

  • Page 6: Main Features

    2. Both transmitter and receiver module can be installed into the same RF6 frame simultaneously. 3. Built-in signal repeater to support longer distance between the source and the RF6 and the display. This Signal Repeater logic supports up to 50ft copper based DVI/HDMI cables.

  • Page 7: Installation And Connection Instructions

    2) CAT5 Cable: RT6 was designed to conform to TIA/EIA-568-B Standard. Please ensure that each PIN layout of RF6 is corresponding with the picture below before connecting the cable. Please note that CAT5e or above level cable enables to deliver better video quality and longer distance.
  • Page 8 4. Connect the power supply unit to the RF6 extension system 5. Turn on Display 6. Turn on Video Source RF6 Extension Frame Specification Dimensions: 17.3x6.7x1.7(inches) 440x170x44(mm) Front Panel: LCD Display: 16*2 LCD ST 1 ~ 6 LED: Input Slot Check Power: Power on/off button ▲▼◀▶: Move button...
  • Page 9 Rear Panel: DVI/HDMI IN: DVI-D/HDMI Input Audio IN: 3.5mm Stereo Audio Input 1234: Fiber Optical Receptacles CAT-5 IN: RJ45 (CAT5/e/6) Receptacles DC +12V: 12V DC Power Supply Unit Input Available Input Modules - DT1000: Optical, DVI, 3.5 Stereo, up to 6 modules can fit in RF6T - HT1000: Optical, HDMI, 3.5mm Stereo, up to 6 modules can fit in RF6T - DT50: CAT5, DVI, 3.5mm Stereo, up to 6 modules can fit in RF6T - HT50: CAT5, HDMI, 3.5mm Stereo, up to 6 modules can fit in RF6T...
  • Page 10 - DR50R: CAT5, DVI, 3.5mm Stereo, RS-232, IR, up to 6 modules can fit in RF6R - HR50R: CAT5, HDMI, 3.5mm Stereo, RS-232, IR, up to 6 modules can fit in RF6R RF6 Extension system and available Standalone extender’ Compatibility Chart...
  • Page 11 Operating Instruction (RF6 / Transmitter module) 1. Initialization menu [VIDEO EXTENDER] TX - RF6 (V1.00) --> Model name and Main Firmware Version System Checking! SLOT1 Check OK --> Input Slot Status Check --> SLOT4 Check N.C: No module is connected to SLOT4 SLOT4 Check N.C...
  • Page 12 Press Menu button to go to sub-menu list. --> 1. Display each slot’s input video signal information →1. V i d e o I n f o 2. SLOT Firm Ver --> 2. Display each slot’s firmware version --> 3. Display each slot’s saved EDID information 3.
  • Page 13 * User Left/Right (◀▶) button to select slot # * Press Enter button to save EDID information from the selected slot’s display device * Press menu button to cancel and go back to the main menu Operating Instruction (RF6 / Receiver Module) 1. Initialization menu...
  • Page 14 System Checking! SLOT1 Check OK --> Input Slot Status Check --> SLOT4 Check N.C: No module is connected to SLOT4 SLOT4 Check N.C SLOT5 Check OK --> SLOT5 Check OK: Input module is connected to SLOT5 2. Main menu --> When Slot is connected and input signal is detected S L O T : 1 2 3 4 5 6 [ 1920 x 1080P/60 ] -->...

  • Page 15: Technical Specification

    --> Display input signal information * User Left/Right (◀▶) button to select slot # * User Up/down (▲▼) button to display selected slot’s information * Press menu button to cancel and go back to the main menu [ 2. Slot Firmware Version ] -->...
  • Page 16 Frequency Range: 25 ~ 165 Mhz Supporting Display Resolutions: 1080p / Up to WUXGA (1920X1200)@60Hz I/O Signal Standard: DVI 1.0, HDMI 1.3, TMDS Max Distance: CAT5 Modules: 1920x1200 @ 60Hz or at 1080p: 50M(165ft) 1280x1024 @ 60Hz or at 1080i: 60M(200ft) Fiber Modules: 1920x1200 @ 60Hz or at 1080p: 1,000M(3,300ft) 1280x1024 @ 60Hz or at 1080i: 1,530M(5,000ft)

  • Page 17: Warranty Limitation And Exclusion

    Warranty 2 (Two) Year Warranty Dtrovision warrants this fiber optical HDMI extension cable to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) year from the date of purchase from Dtrovision or its authorized resellers. If a product does not work as warranted during the applicable warranty period, Dtrovision shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the...

  • Page 18: Fcc/Ce Statement

    FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
