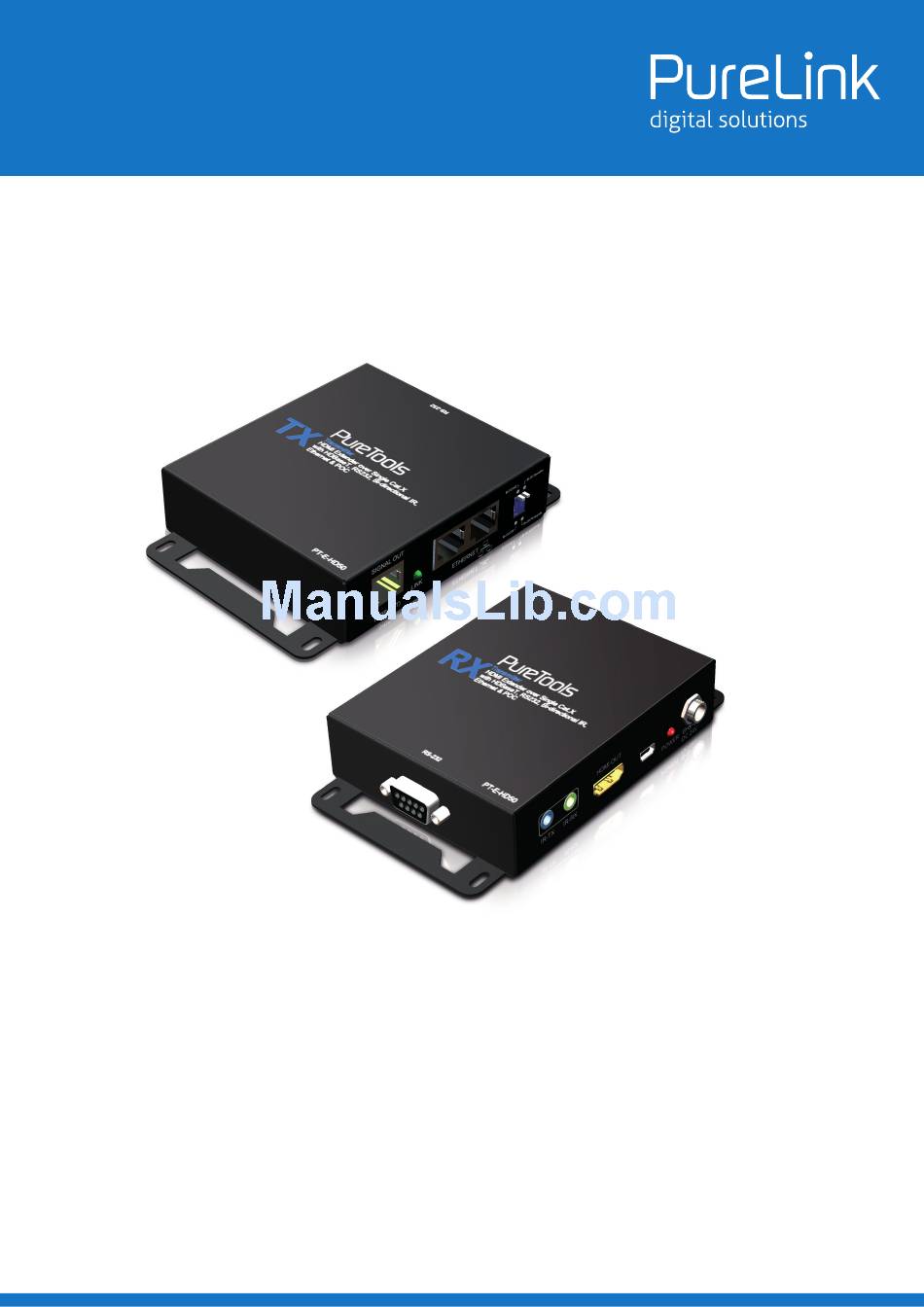

Page 1: User Manual

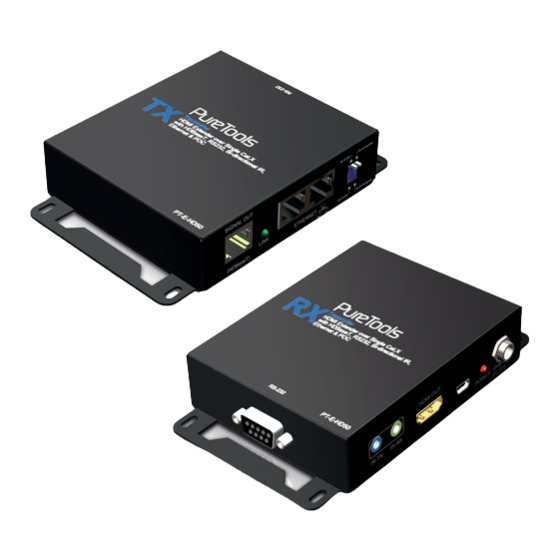

User Manual PT-E-HD50 User Manual HDMI over Single Cat.X Extender with HDBaseT, RS232, Bi-directional IR, Ethernet & POC Model PT-E-HD50 Designed in Germany © 2016 PureLink GmbH All rights reserved. Revision date 2016-03-17 Version 2... -
Page 2: Table Of Contents
However, like all electronic equipment, the PT-E-HD50 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Package Contents
PT-E-HD50 In addition, PT-E-HD50 is also equipped with a bi-directional IR pass-through path and a RS-232 serial port control. These bonus features allow users to boost their IR control distance for remote controls up to 100m (330ft) and make IR control possible through only one single Cat.5 / 5e / 6 cable, including the A/V signal. -
Page 4: Panel Descriptions
PIN#2: For firmware updates RS-232: Connect to serial port device with a DSUB-9 male-male or male-female cable PT-E-HD50 rear panel of transmitter (Tx) IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver... - Page 5 User Manual PT-E-HD50 PT-E-HD50 front panel, receiver (Rx) RJ45: Plug in a Cat.5 / 5e / 6 cable and link it to the transmitting unit LED: TX /RX link indicator 2x Ethernet ports: Connect to network devices (bi-directional) to forward the signal...
-
Page 6: Ir Pass-Through
User Manual PT-E-HD50 1.5 IR Pass-Through IR Extenders IR Blaster IR Receiver IR Sockets IR Blaster: Plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. -
Page 7: Hdmi Pin Definition
TMDS Clock+ 1.7 Installation 1. Connect an HDMI or DVI source (such as a BluRay Disc player) to the transmitting unit PT-E-HD50-TX. 2. Connect an HDMI or DVI display (such as a LCD TV) to the receiving unit PT-E-HD50-RX. 3. Connect IR Blaster/Receiver to both TX and RX units. -
Page 8: Section 2: Software
User Manual PT-E-HD50 Section 2: Software 1. Introduction What is HDBaseT Manager? HDBaseT Manager is a specialized software, focusing on detecting the connection environment and providing on-site testing possibilities to find potential problems efficiently and easily. How does HDBaseT Manager help? HDBaseT Manager offers service in 4 parts •... - Page 9 User Manual PT-E-HD50 2.1 Check the current firmware version The upper part reveals the IC type / firmware version on the TX and RX units. 2.2 Update the required firmware In the lower parts you will see the information as shown 2.3 Whenever you want to update the firmware, follow these steps: Step Action Select local (TX) or remote (RX) device for firmware update...
- Page 10 User Manual PT-E-HD50 3. Status (Connecting) Note: The setting will affect the status page and burn-in test function to work 3.1 Push „Start“ in the corner to get the connction‘s information 4. Check the connection status 4.1 In the upper part, it will show the mode and source type 4.2 If connected successfully, you will see this as below:...
- Page 11 User Manual PT-E-HD50 If it fails to connect, you will get the status prompt as below: 4.3 Indication to recognize the connection‘s condition To review the status of the connection, HDBaseT Manager analyzes in 4 ways Step Item What is this for? Hot Plug Detect when you plug in or unplug incl.
- Page 12 User Manual PT-E-HD50 If the status is poor, the light will turn to yellow or red. 5. Burn-In Test 5.1 Get all technical info to analyze any unusual situation If the connection is fine, the graphs will stay straight all the time.
- Page 13 User Manual PT-E-HD50 5.2 If there are errors detected, you will see graph-drops, as shown below 5.3 Select the required polling period and push „Start“ to get the data 5.4 Select „Save as...“ and send the file to the engineer for analyzing...
- Page 14 User Manual PT-E-HD50 6. Fail-Safe Setting Setting & saving the setting into the on-board MCU to ensure transmission stability. 6.1 Due to these manual settings, the device will be able to reset, once the selected conditions are fulfilled at the same time. This will ensure a steady quality and stability for signal transmissions. 6.2 Sensitivity for fail-safe mechanism.
- Page 15 User Manual PT-E-HD50 6.5 Select the time interval. The PT-E-HD50 will detect the factors every 0.5 second by itself. If the problems regarding wire quality and video error rate last as long as the set time interval, the device will reset automatically to ensure a good quality signal transmission. When you choose 30s, it means once the errors last for 30s non-stop, the machine will reset immediately.
-
Page 16: Section 3: Specifications
User Manual PT-E-HD50 Section 3: Specifications Item Units Transmitting unit of PT-E-HD50 Receiving unit of PT-E-HD50 Unit Description Transmitter Receiver HDMI compliance HDMI Deep Color, full 3D & 4K2K@30/40m HDCP compliance Video bandwidth Single-link 340MHz [10.2Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 / 4K@30 HDMI over UTP 1080p@60 100m (330ft) [Cat.5e] / 4K@30 40m... -
Page 17: Section 4: Notice
Section 5: Warranty The SELLER warrants the PT-E-HD50 HDMI over Single Cat.X Extender with HDBaseT, RS232, Bi-directional IR, Ethernet & POC being free from defects in the material and workmanship for 1 year from the date of purchase from an authorized dealer. - Page 18 User Manual PT-E-HD50 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 - 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write To: PureLink GmbH Von-Liebig-Straße 10...
- Page 19 User Manual PT-E-HD50...
- Page 20 User Manual PT-E-HD50 PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de info@purelink.de...
