Summary of Contents for PureLink PT-E-HD10
-
Page 1: User Manual

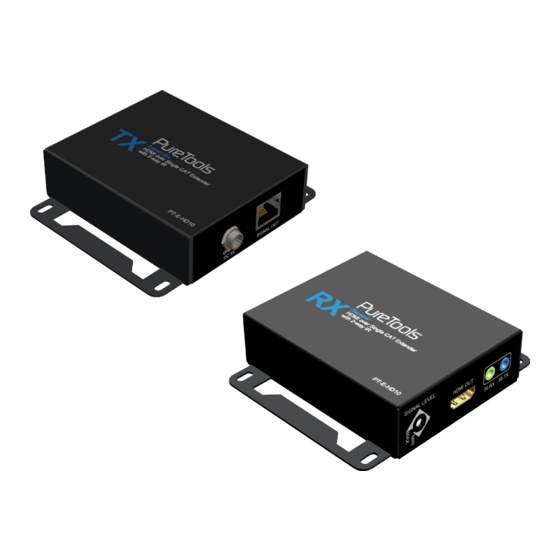

User Manual PT-E-HD10 To avoid EMI issue, complete STP Cat6 cable is strongly recommended! User Manual HDMI™ over Single Cat.X Extender with 2-way IR Model PT-E-HD10 Designed in Germany © 2016 PureLink GmbH All rights reserved. -
Page 2: Table Of Contents
..................1. Safety and Notice The PT-E-HD10 HDMI™ over Single Cat.X Extender with 2-way IR has been tested for conformance to safety re- gulations and requirements, and has been certified for international use. However, like all electronic equipments, the PT-E-HD10 should be used with care. -
Page 3: Introduction
The PT-E-HD10 HDMI™ over Single Cat.X Extender with 2-way IR boosts up your video/audio transmission dis- tance up to 50m (165ft) in HDTV 1080i format, and 40m (130ft) in HDTV 1080p format. PT-E-HD10 also supports the most advanced 3D video format complaint with HDMI specification and therefore guarantees the highest 3D video compatibility on the market. -
Page 4: Specification
User Manual PT-E-HD10 4. Specifications Technical Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI Deep Color & full 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 HDMI over UTP Full HD: (1080p) ~40meter (130feet) (Cat.X) -
Page 5: Package Contents
User Manual PT-E-HD10 5. Package Contents • 1x PT-E-HD10 (TX & RX) • 1x IR blaster • 1x IR receiver • 2x Power supply unit (+5VDC, 2A) • 1x User Manual 6. Connection Diagram... -
Page 6: Panel Description
4. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster Rear Panel 5. +5V DC: Connect to 5V DC power supply unit. 6. HDMI SIGNAL OUT: Plug in a Cat.X cable and link to the RJ-45 port of the PT-E-HD10, receiving unit [RX]... - Page 7 10. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster Rear Panel 11. +5V DC: Connect to 5V DC power supply. 12. HDMI SIGNAL IN: Plug in a Cat.X cable and link to the RJ-45 port of the PT-E-HD10, transmitting unit [TX]...
-
Page 8: Ir Pass-Through
User Manual PT-E-HD10 8. IR Pass-Through IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. -
Page 9: Hardware Installation
2. Set the MODE rotary switch on the transmitting unit to 7. 3. Use a HDMI cable to connect the transmitting unit (TX) of PT-E-HD10 and the display. The LED on the RJ-45 port of the transmitting unit (TX) of PT-E-HD10 will dim and light again, which indicates the EDID learning process is finished. -
Page 10: Notice
User Manual PT-E-HD10 11. Notice 1. When adjusting the signal level on the receiver unit, please dial the rotary control switch from MIN to MAX and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten the product life significantly! 2. -
Page 11: Warranty
12. Limited Warranty The SELLER warrants the PT-E-HD10 HDMI extender over single cat.X with bi-directional IR free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should... - Page 12 User Manual PT-E-HD10 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 - 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write To: PureLink GmbH Von-Liebig-Straße 10...
