AN232

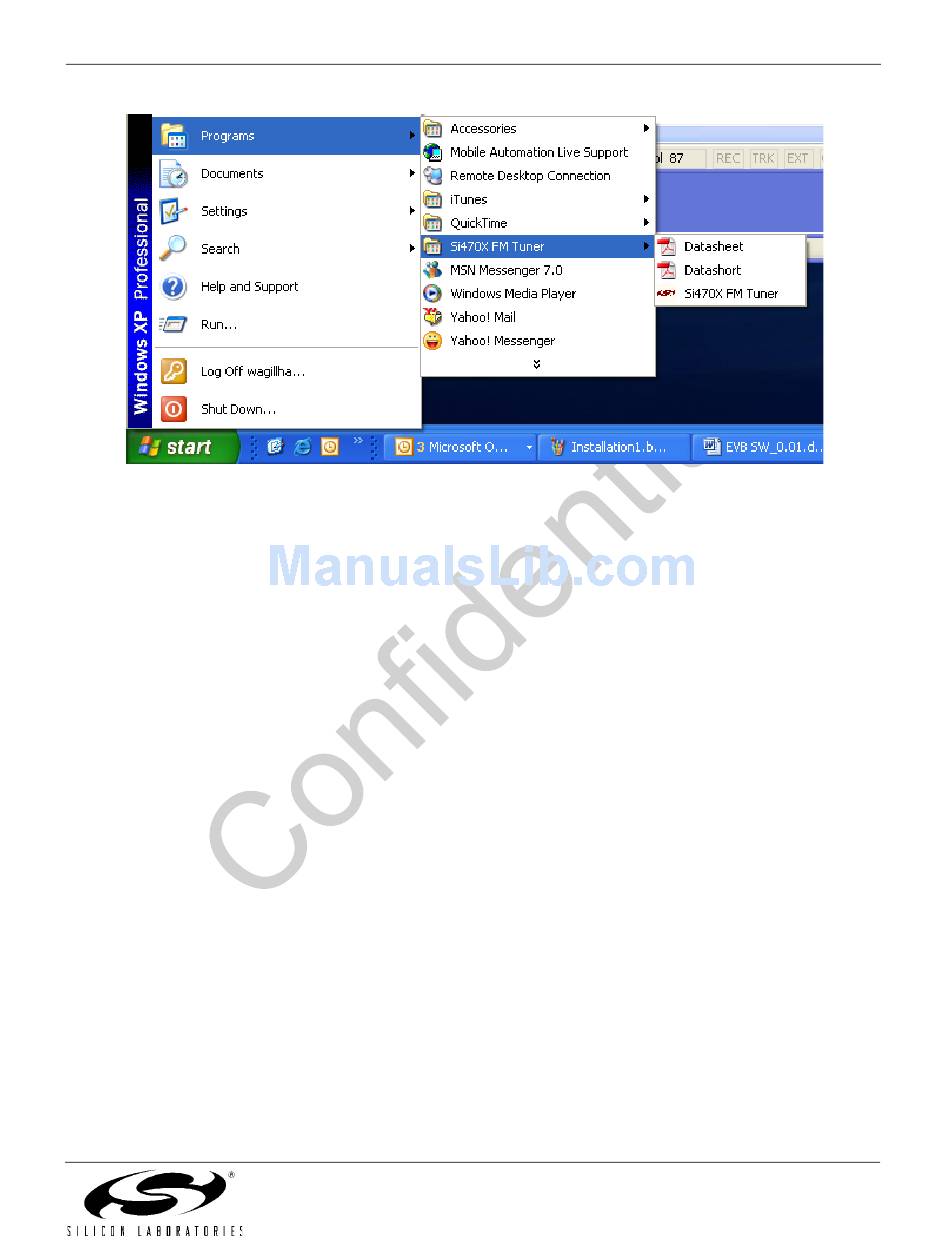

Figure 5. Launching Si470x FM Tuner Application

The first Si4700/01 window will show the application "searching for devices..." in the "Status Window" and the EVB

serial number in the "Select Device" window. Select the target device by clicking on the EVB serial number. The

progress bar on the bottom of the window will show initialization progress. When complete, the board is initialized

and development may now begin. Figures 6 and 7 show this process.

Rev. 0.2
