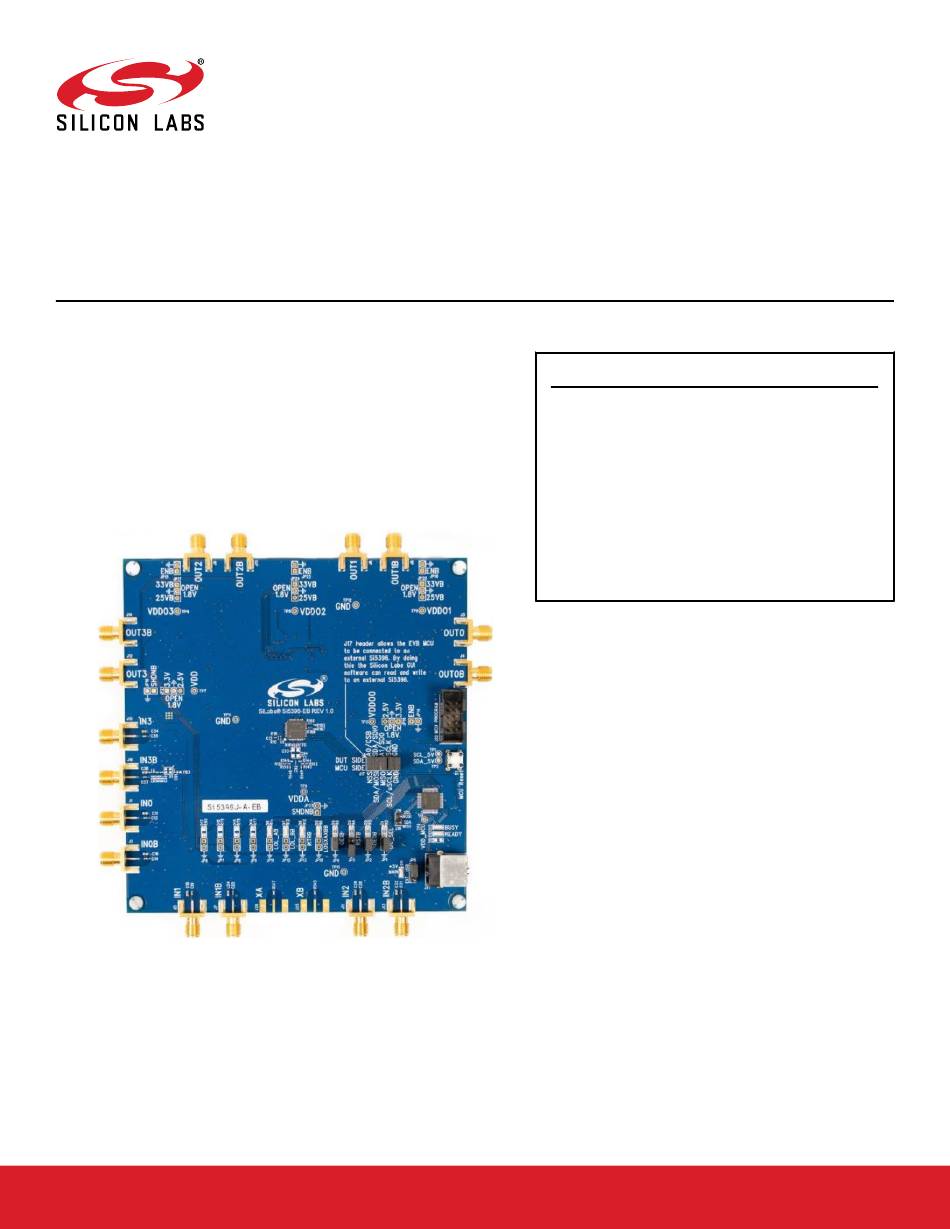

UG336: Si5396 Evaluation Board User's
Guide

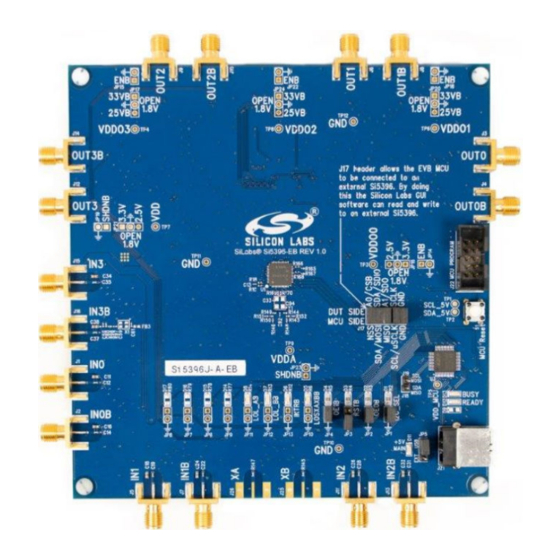

The Si5396J-A-EVB is used for evaluating the Si5396 Any-Frequency, Any-
Ouput, Jitter-Attenuating Clock Multiplier. There is only one EVB for the
Si5396, which is an embedded reference device. There is no EVB for the
external reference grade version for the Si5396-EVB. The device grade and
revision is distinguished by a white 1 inch x 0.187 inch label with the text
"Si5396J-A-EB" installed in the lower left hand corner of the board. (For or-
dering purposes only, the terms "EB" and "EVB" refer to the board and the
kit respectively. For the purpose of this document, the terms are synony-
mous in context.)
silabs.com | Building a more connected world.
KEY FEATURES OR KEY POINTS
• Si5396J-A-EVB for evaluating internal reference versions
Si5396J/K/L/M
• Powered from USB port or external power supply.
• ClockBuilder
®
Pro (CBPro) GUI programmable VDD
supply allows device to operate from 3.3, 2.5, or 1.8 V.
• CBPro GUI allows control and measurement of voltage,
current, and power of VDD and all 4 VDDO supplies.
• Status LEDs for power supplies and control/status
signals of Si5396.
• SMA connectors for input clocks and output clocks
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Si5396J-A-EVB and is the answer not in the manual?

Questions and answers

Related Manuals for Silicon Laboratories Si5396J-A-EVB

Summary of Contents for Silicon Laboratories Si5396J-A-EVB

  • Page 1 UG336: Si5396 Evaluation Board User's Guide The Si5396J-A-EVB is used for evaluating the Si5396 Any-Frequency, Any- Ouput, Jitter-Attenuating Clock Multiplier. There is only one EVB for the KEY FEATURES OR KEY POINTS Si5396, which is an embedded reference device. There is no EVB for the external reference grade version for the Si5396-EVB.

  • Page 2: Table Of Contents

    Table of Contents 1. Si5396J-A-EVB Functional Block Diagram ....3 2. Si5396J-A-EVB Support Documentation and ClockBuilder Pro Software ..4 3.

  • Page 3: Si5396J-A-Evb Functional Block Diagram

    Si5396J-A-EVB Functional Block Diagram 1. Si5396J-A-EVB Functional Block Diagram Below is a functional block diagram of the Si5396J-A-EVB. This evaluation board can be connected to a PC via the main USB connec- tor for programming, control, and monitoring. See section 3.

  • Page 4: Si5396J-A-Evb Support Documentation And Clockbuilder Pro Software

    UG336: Si5396 Evaluation Board User's Guide Si5396J-A-EVB Support Documentation and ClockBuilder Pro Software 2. Si5396J-A-EVB Support Documentation and ClockBuilder Pro Software All Si5396J-A-EVB schematics, BOMs, User’s Guides, and software can be found online: www.silabs.com/documents/public/schematic-files/si539x-design-files.zip silabs.com | Building a more connected world.

  • Page 5: Quick Start

    2. Connect a USB cable from Si5396J-A-EB to the PC where the software was installed. 3. Confirm jumpers are installed as shown in Table 4.1 Si5396J-A-EVB Jumper Defaults on page 4. Launch the ClockBuilder Pro Software. 5. You can use ClockBuilder Pro to create, download, and run a frequency plan on the Si5396-A-EB.

  • Page 6: Jumper Defaults

    2 pin 2 pin 3 pin 1 to 2 (USB) 5 x 2 Hdr All 5 installed Note: Refer to the Si5396J-A-EVB schematics for the functionality associated with each jumper. silabs.com | Building a more connected world. Rev. 1.0 | 6...

  • Page 7: Status Leds

    UG336: Si5396 Evaluation Board User's Guide Status LEDs 5. Status LEDs Table 5.1. Si5396J-A- EVB Status LEDs Location Silkscreen Color Status Function Indication LOS_XAXBB Blue XA/XB Loss of Signal indicator INTRB Blue MCU INTR (Interrupt) active LOL_BB Blue DSPLL A Loss of Lock indicator LOL_AB Blue DSPLL B Loss of Lock indicator...

  • Page 8: Clock Input Circuits (Inx/Inxb)

    UG336: Si5396 Evaluation Board User's Guide Clock Input Circuits (INx/INxB) 6. Clock Input Circuits (INx/INxB) The Si5396J-A-EVB has eight SMA connectors (IN0/IN0B–IN3/IN3B) for receiving external clock signals. All input clocks are terminated as shown in Figure 6.1 Input Clock Termination Circuit on page 8 below.

  • Page 9: Clock Output Circuits (Outx/Outxb)

    The output signal will have no dc bias. If dc coupling is required, the ac coupling capacitors can be replaced with a resistor of appropriate value. The Si5396J-A-EVB provides an L-network at OUT0/OUT0B output pins for optional output termination resistors. Note that components with schematic “NI” designation are not nor- mally populated.

  • Page 10: External Reference Clock (Xa/Xb) Not Supported

    8. External Reference Clock (XA/XB) Not Supported The Si5396J-A-EVB does not support an external reference clock on XA/XB. The layout for the external XTAL is on the board, but the EVB for this part is an embedded XTAL version only and therefore this circuit should remain disconnected and unused.

  • Page 11: Installing Clockbuilder Pro Desktop Software

    UG336: Si5396 Evaluation Board User's Guide Installing ClockBuilder Pro Desktop Software 9. Installing ClockBuilder Pro Desktop Software To install the CBOPro software on any Windows 7 (or above) PC: Go to http://www.silabs.com/CBPro and download ClockBuilder Pro software. Installation instructions and User’s Guide for ClockBuilder Pro can be found at the download link shown above. Please follow the in- structions as indicated.

  • Page 12: Using The Si5396J-A-Evb

    UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB 10. Using the Si5396J-A-EVB 10.1 Connecting the EVB to Your Host PC Once ClockBuilder Pro software is installed, connect to the EVB with a USB cable as shown below. Figure 10.1. EVB Connection Diagram silabs.com | Building a more connected world.

  • Page 13: Overview Of Clockbuilder Pro Applications

    UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB 10.2 Overview of ClockBuilder Pro Applications The following instructions and screen captures may vary slightly depending on the version of ClockBuilder Pro. (The screen captures below were taken for a board labeled "SI5396J-A-EB".) The ClockBuilder Pro installer will install two main applications: Figure 10.2.

  • Page 14: Common Clockbuilder Pro Work Flow Scenarios

    • Monitor voltage, current, power on the EVB 10.3 Common ClockBuilder Pro Work Flow Scenarios There are three common workflow scenarios when using CBPro and the Si5396J-A-EVB. These workflow scenarios are: • Workflow Scenario #1: Testing a Silicon Labs-Created Default Configuration •...

  • Page 15: Workflow Scenario #1: Testing A Silicon Labs-Created Default Configuration

    UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB 10.4 Workflow Scenario #1: Testing a Silicon Labs-Created Default Configuration The flow for using the EVB GUI to initialize and control a device on the EVB is as follows. Once the PC and EVB are connected, launch ClockBuilder Pro by clicking on this icon on your PC’s desktop.
  • Page 16 UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB Once you open the default plan (based on your EVB model number), a popup will appear. Figure 10.6. Write Design to EVB Dialog Select “Yes” to write the default plan to the Si5396 device mounted on your EVB. This ensures the device is completely reconfigured per the Silicon Labs default plan for the DUT type mounted on the EVB.
  • Page 17 UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB Figure 10.8. Open EVB GUI The EVB GUI will appear. Note all power supplies will be set to the values defined in the device default CBPro project file created by Silicon Labs, as shown below.

  • Page 18: Verify Free-Run Mode Operation

    UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB 10.4.1 Verify Free-Run Mode Operation Assuming no external clocks have been connected to the INPUT CLOCK differential SMA connectors (labeled “INx/INxB”) located around the perimeter of the EVB, the DUT should now be operating in free-run mode, as the DUT will be locked to the crystal in this case.
  • Page 19 UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB Figure 10.11. View Design Report silabs.com | Building a more connected world. Rev. 1.0 | 19...

  • Page 20: Verify Locked Mode Operation

    UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB Your configuration’s design report will appear in a new window, as shown below. Compare the observed output clocks to the frequen- cies and formats noted in your default project’s Design Report.

  • Page 21: Workflow Scenario #2: Modifying The Default Silicon Labs-Created Device Configuration

    UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB 10.5 Workflow Scenario #2: Modifying the Default Silicon Labs-Created Device Configuration To modify the “default” configuration using the CBPro Wizard, click on Edit Configuration with Wizard: Figure 10.13. Edit Configuration with Wizard You will now be taken to the Wizard’s step-by-step menus to allow you to change any of the default plan’s operating configurations.
  • Page 22 UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB Figure 10.14. Design Wizard Note you can click on the icon on the lower left hand corner of the menu to confirm if your frequency plan is valid. After making your desired changes, you can click on Write to EVB to update the DUT to reconfigure your device real-time.

  • Page 23: Workflow Scenario #3: Testing A User-Created Device Configuration

    UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB 10.6 Workflow Scenario #3: Testing a User-Created Device Configuration To test a previously created user configuration, open the CBPro Wizard by clicking on the icon on your desktop and then selecting Open Design Project File.
  • Page 24 UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB Figure 10.17. Browse to Project File Select Yes when the WRITE DESIGN to EVB popup appears: silabs.com | Building a more connected world. Rev. 1.0 | 24...
  • Page 25 UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB Figure 10.18. Write Design to EVB Dialog The progress bar will be launched. Once the new design project file has been written to the device, verify the presence and frequencies of your output clocks and other operating configurations using external instrumentation.

  • Page 26: Exporting The Register Map File For Device Programming By A Host Processor

    UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB 10.7 Exporting the Register Map File for Device Programming by a Host Processor You can also export your configuration to a file format suitable for in-system programming by selecting Export as shown below: Figure 10.19.
  • Page 27 UG336: Si5396 Evaluation Board User's Guide Using the Si5396J-A-EVB Figure 10.20. Export Settings silabs.com | Building a more connected world. Rev. 1.0 | 27...

  • Page 28: Writing A New Frequency Plan Or Device Configuration To Non-Volatile Memory (Otp)

    Note: Writing to the device non-volatile memory (OTP) is NOT the same as writing a configuration into the Si5396 using ClockBuilder Pro on the Si5396J-A-EVB. Writing a configuration into the EVB from ClockBuilder Pro is done using Si5396 RAM space and can be done virtually unlimited numbers of times.

  • Page 29: Serial Device Communications

    UG336: Si5396 Evaluation Board User's Guide Serial Device Communications 12. Serial Device Communications 12.1 Onboard SPI Support The MCU onboard the Si5396J-A- EVB communicates with the Si5396 device through a 4-wire SPI (Serial Peripheral Interface) link. The MCU is the SPI master and the Si5396 device is the SPI slave. The Si5396 device can also support a 2-wire I C serial interface, although the Si5396 EVB does NOT support the I C mode of operation.

  • Page 30: Si5396J-A-Evb Schematic And Bill Of Materials (Bom)

    Note: Please be aware that the Si5396J-A-EVB schematic is in OrCad Capture hierarchical format and not in a typical “flat” schematic format. This document supports the evaluation board silkscreened Si5396J-A-EB for the following configurations as described in the table be- low.
  • Page 31 Trademark Information Silicon Laboratories Inc.® , Silicon Laboratories®, Silicon Labs®, SiLabs® and the Silicon Labs logo®, Bluegiga®, Bluegiga Logo®, Clockbuilder®, CMEMS®, DSPLL®, EFM®, EFM32®, EFR, Ember®, Energy Micro, Energy Micro logo and combinations thereof, "the world’s most energy friendly microcontrollers", Ember®, EZLink®, EZRadio®, EZRadioPRO®, Gecko®, Gecko OS, Gecko OS Studio, ISOmodem®, Precision32®, ProSLIC®, Simplicity Studio®, SiPHY®, Telegesis, the Telegesis Logo®, USBXpress®...
