Si4827 D

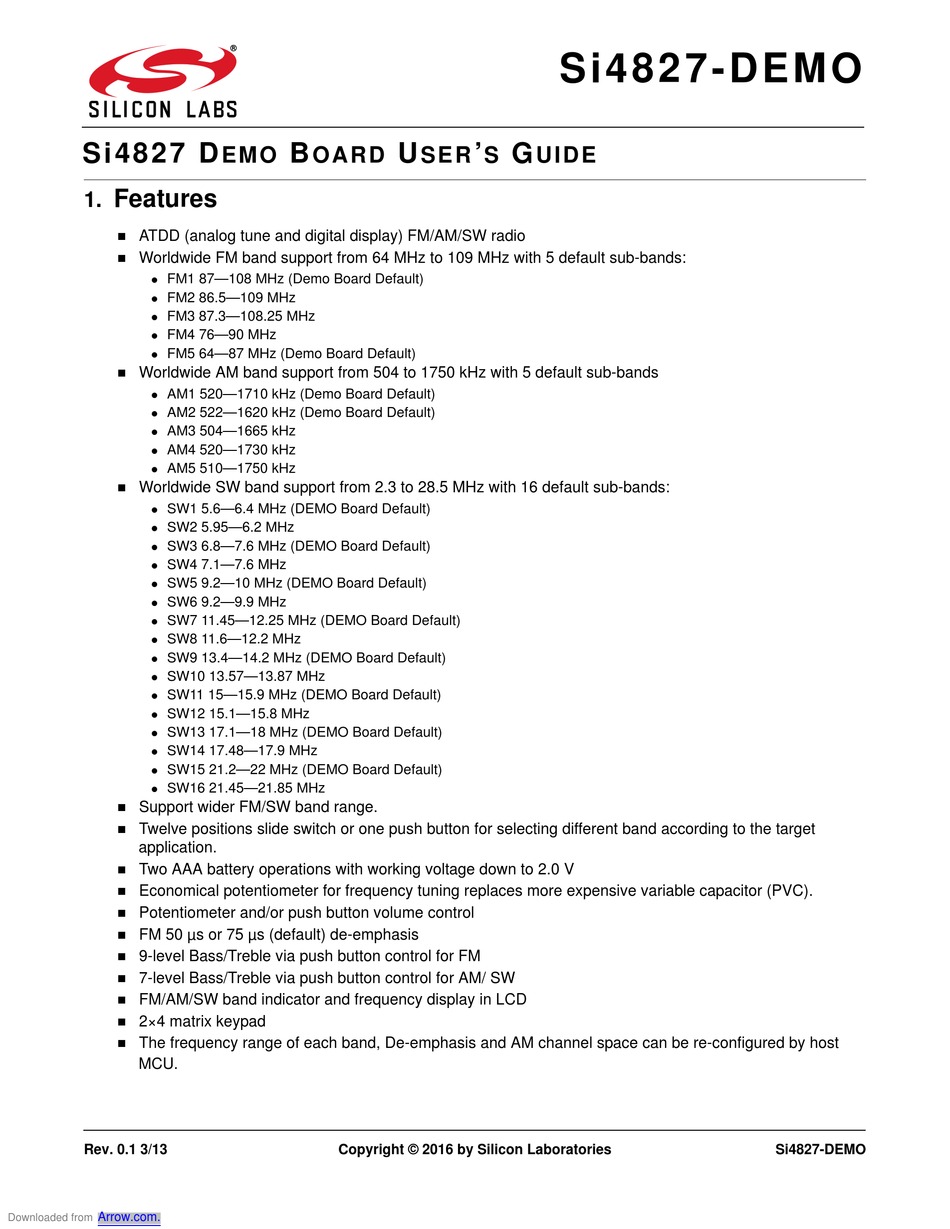

Features
1.

ATDD (analog tune and digital display) FM/AM/SW radio

Worldwide FM band support from 64 MHz to 109 MHz with 5 default sub-bands:
FM1 87—108 MHz (Demo Board Default)

FM2 86.5—109 MHz

FM3 87.3—108.25 MHz

FM4 76—90 MHz

FM5 64—87 MHz (Demo Board Default)


Worldwide AM band support from 504 to 1750 kHz with 5 default sub-bands
AM1 520—1710 kHz (Demo Board Default)

AM2 522—1620 kHz (Demo Board Default)

AM3 504—1665 kHz

AM4 520—1730 kHz

AM5 510—1750 kHz


Worldwide SW band support from 2.3 to 28.5 MHz with 16 default sub-bands:
SW1 5.6—6.4 MHz (DEMO Board Default)

SW2 5.95—6.2 MHz

SW3 6.8—7.6 MHz (DEMO Board Default)

SW4 7.1—7.6 MHz

SW5 9.2—10 MHz (DEMO Board Default)

SW6 9.2—9.9 MHz

SW7 11.45—12.25 MHz (DEMO Board Default)

SW8 11.6—12.2 MHz

SW9 13.4—14.2 MHz (DEMO Board Default)

SW10 13.57—13.87 MHz

SW11 15—15.9 MHz (DEMO Board Default)

SW12 15.1—15.8 MHz

SW13 17.1—18 MHz (DEMO Board Default)

SW14 17.48—17.9 MHz

SW15 21.2—22 MHz (DEMO Board Default)

SW16 21.45—21.85 MHz


Support wider FM/SW band range.

Twelve positions slide switch or one push button for selecting different band according to the target
application.

Two AAA battery operations with working voltage down to 2.0 V

Economical potentiometer for frequency tuning replaces more expensive variable capacitor (PVC).

Potentiometer and/or push button volume control

FM 50 µs or 75 µs (default) de-emphasis

9-level Bass/Treble via push button control for FM

7-level Bass/Treble via push button control for AM/ SW

FM/AM/SW band indicator and frequency display in LCD

2×4 matrix keypad

The frequency range of each band, De-emphasis and AM channel space can be re-configured by host
MCU.
Rev. 0.1 3/13
Arrow.com.
Downloaded from
B
U
E M O
OARD
Copyright © 2016 by Silicon Laboratories
S i 4 8 2 7 - D E M O
'
G
SER
S
UIDE
Si4827-DEMO

Advertisement

loading
Need help?

Need help?

Do you have a question about the Si4827-DEMO and is the answer not in the manual?

Questions and answers

Summary of Contents for Silicon Laboratories Si4827-DEMO

  • Page 1 FM/AM/SW band indicator and frequency display in LCD  2×4 matrix keypad  The frequency range of each band, De-emphasis and AM channel space can be re-configured by host MCU. Rev. 0.1 3/13 Copyright © 2016 by Silicon Laboratories Si4827-DEMO Arrow.com. Downloaded from...
  • Page 2 Si4827-DEMO 2. Overview This manual describes the operation of the Silicon Labs Si4827-DEMO board Rev1.1, January 22, 2013. The Silicon Laboratories Si4827-DEMO board is designed with the 16-pin SOIC packaged Si4827 chip, the revolutionary single chip AM/FM/SW receiver that integrates everything from antenna input to audio output and allows use of common and economical potentiometers to do the frequency tuning.
  • Page 3 Si4827-DEMO Power: BAT1: 2 cells AAA battery compartment Audio Connectors: J5: Mono audio headphone output Antenna Selections: AM antenna: Ferrite stick antenna for AM J6: SMA connector for AM conductive test S11: AM antenna selector 1-2: SMA for AM Conductive Test (J6)
  • Page 4 Si4827-DEMO Main Components: U1: Silicon Laboratories Si4827 AM/FM/SW ATDD receiver U2: Audio amplifier U3: MCU LCD: The digital display for tuning information Control Interface: VR1: Frequency tuning wheel. VR2: Volume control wheel S3~S10: The keypad for human interface S2: Band switch for FM, AM, and SW Band definition for the slide switch is as below: 1: FM1 (W 64–108 MHz) (N 87–108 MHz), De-emphasis = 75 µs, ST indication = 6 dB separation@20 dBµV...
  • Page 5 Si4827-DEMO Human Interface: There are 8 keys for controlling the DEMO board as shown below. TREBLE/AL BASS/TMR DE/SPC POWER/BAND DOWN/VOL- UP/VOL+ SETTING W/N BAND Each key can have a different function under each operating condition:  Time mode: Radio function is disabled. LCD displays time. Buttons can be used to set time, alarm, etc.
  • Page 6 Si4827-DEMO Table 1. Key Function Description Button/Mode Time Mode FM/AM/SW Radio Mode Tuner Off Tuner On DOWN/VOL- Hold Time: In setting menu, change the current In radio setting menu, change the current time/alarm parameter by one unit per parameter by one unit per each press.
  • Page 7 Si4827-DEMO Table 2. Radio Configuration Parameters FM Parameter AM Parameter SW Parameter Bass/Treble: 0-8 Bass/Treble: 1-7 Bass/Treble: 1-7 Default: 4 Default: 3 Default: 3 Digital volume: 0-63 Digital volume: 0-63 Digital volume: 0-63 Default: 63 Default: 63 Default: 63 Band top: max 109 MHz Band top: max 1750 kHz Band top: max 28.5 MHz...
  • Page 8: Operation

    Si4827-DEMO 4. Operation The S4827-DEMO Board, a complete analog tune and digital display radio, provides two major modes of operation: Time mode and FM/AM/SW Radio mode. 4.1. Time Mode Put two AAA batteries into the battery compartment; the board will automatically enter Time Mode and display the time.
  • Page 9 Si4827-DEMO 4.2. FM/AM/SW Radio Mode In Time Mode, when a long press (hold time > 1s) on the POWER/BAND button or when the alarm time is reached, the device will enter FM/AM/SW Mode. The LCD displays the following information: band indicator, band frequency indicator, and sleep indicator in case radio is automatically turned on by the alarm.
  • Page 10 Si4827-DEMO 4.2.1. MCU Setting Band Property The DEMO board enables the band property to be set by the MCU. The band property includes:  Band top  Band bottom  De-emphasis (only for FM)  Channel Space (only for AM) The setting menu is illustrated in Figure 4.
  • Page 11: Bill Of Materials

    ATDD AM/FM/SW receiver IC Si4827 with external 32.768 kHz crystal oscillator support  LM4910 Audio amplifier IC  TM8723 MCU  See Table 3 for details Table 3. Si4827-DEMO Board Bill of Materials Rev 1.1 Item Reference Description Value C1-2 C6 C19 C24 C37-42 C44 CAP,SM,0603,X7R 0.1 µ...
  • Page 12 Si4827-DEMO Table 3. Si4827-DEMO Board Bill of Materials Rev 1.1 Item Reference Description Value RES,SM,0603,Tolerance ±1% 10 k 1% RES,SM,0603,Tolerance ±1% 160 k 1% R9-12 R14-15 R28 R33 R35 RES,SM,0603,Tolerance ±1% 20 k 1% RES,SM,0603,Tolerance ±1% 30 k 1% RES,SM,0603,Tolerance ±1% 33 k 1% RES,SM,0603,Tolerance ±1%...
