AN232
4. EVB Configuration Matrix
Table 1 lists the configuration options the EVB provides, the hardware changes necessary to implement a certain
option, and any associated constraints. Figure 2 shows the locations of the various components required to
configure the EVB.

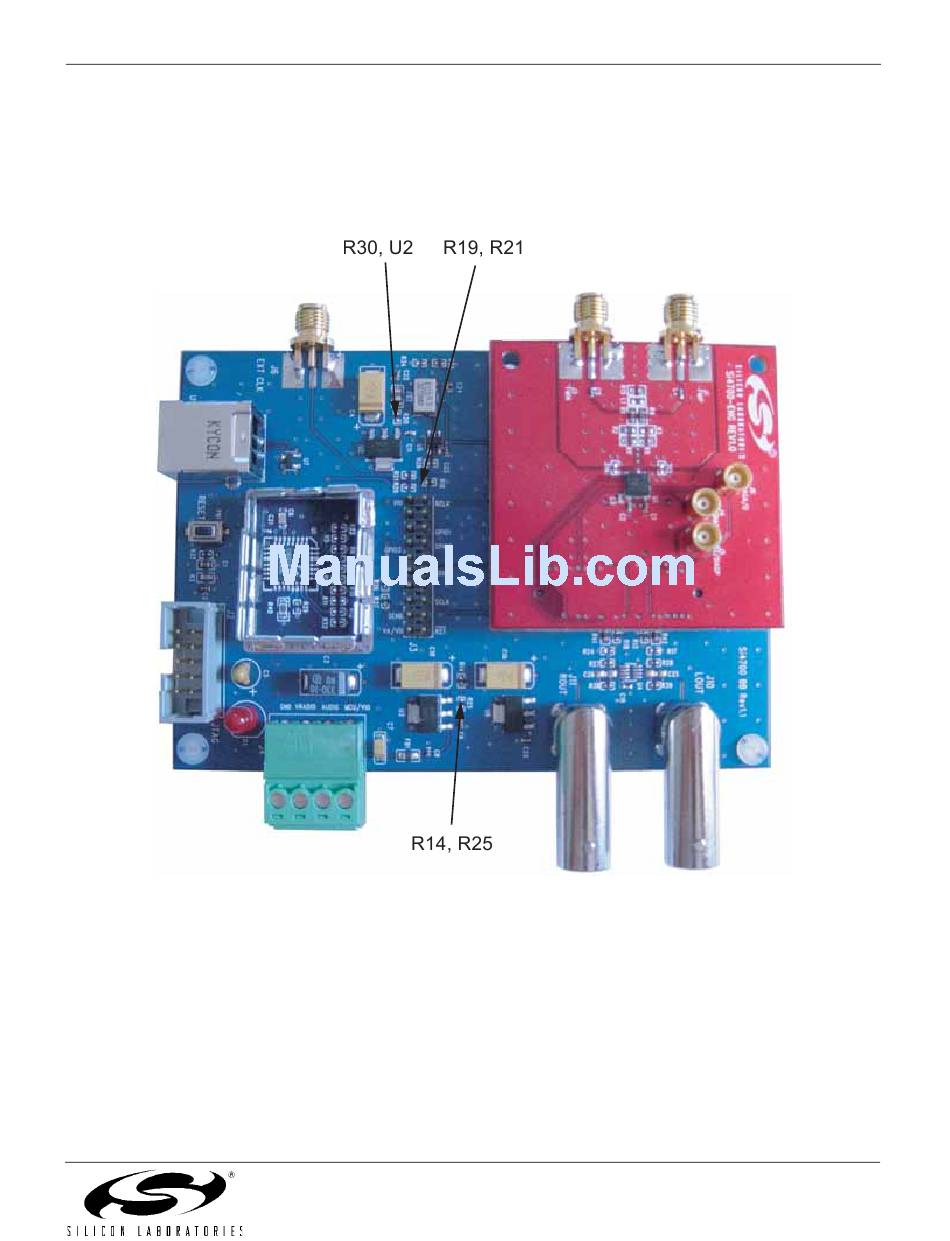

Figure 2. Locations of Components Used to Configure the EVB
Rev. 0.2 5
