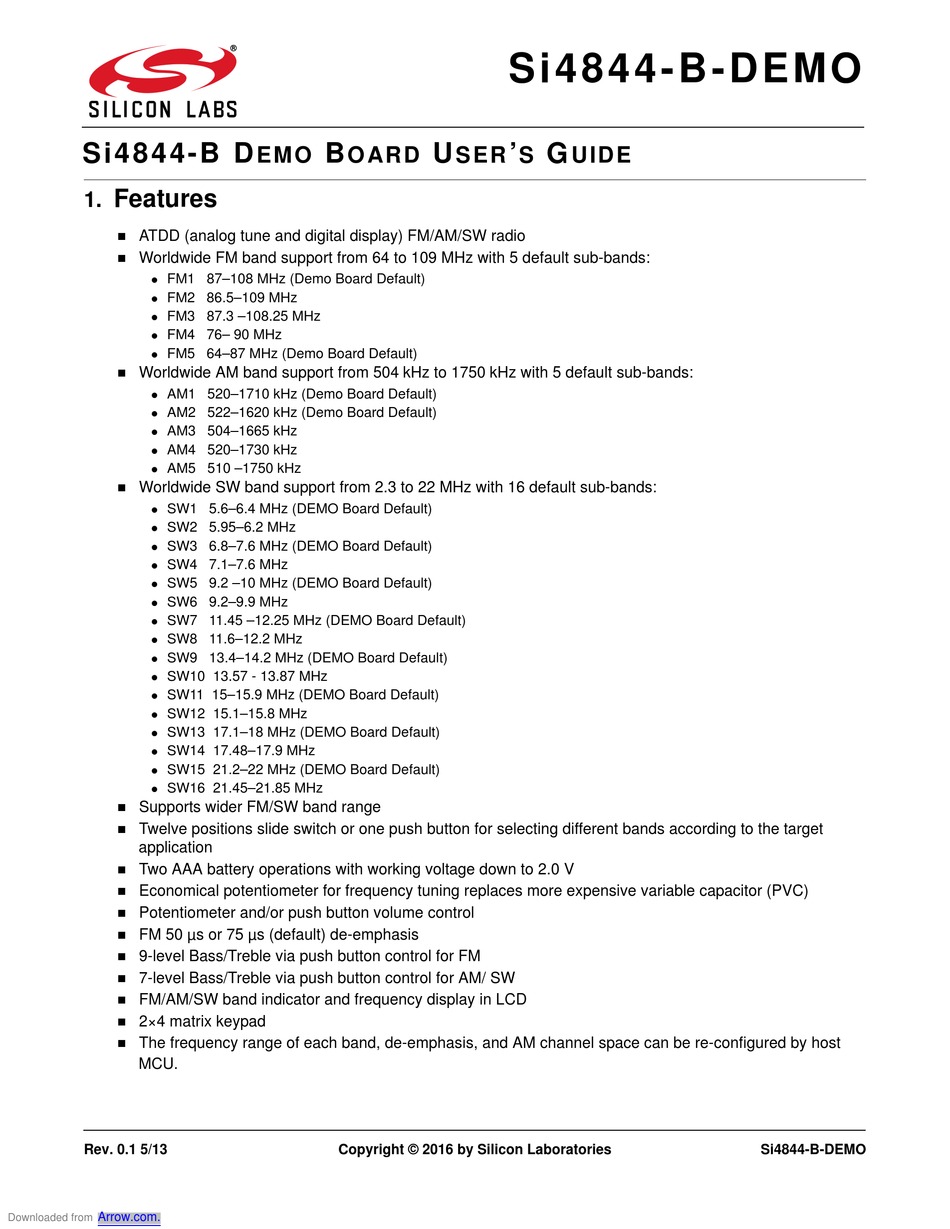

Si4844-B D
Features
1.

ATDD (analog tune and digital display) FM/AM/SW radio

Worldwide FM band support from 64 to 109 MHz with 5 default sub-bands:
FM1 87–108 MHz (Demo Board Default)

FM2 86.5–109 MHz

FM3 87.3 –108.25 MHz

FM4 76– 90 MHz

FM5 64–87 MHz (Demo Board Default)


Worldwide AM band support from 504 kHz to 1750 kHz with 5 default sub-bands:
AM1 520–1710 kHz (Demo Board Default)

AM2 522–1620 kHz (Demo Board Default)

AM3 504–1665 kHz

AM4 520–1730 kHz

AM5 510 –1750 kHz


Worldwide SW band support from 2.3 to 22 MHz with 16 default sub-bands:
SW1 5.6–6.4 MHz (DEMO Board Default)

SW2 5.95–6.2 MHz

SW3 6.8–7.6 MHz (DEMO Board Default)

SW4 7.1–7.6 MHz

SW5 9.2 –10 MHz (DEMO Board Default)

SW6 9.2–9.9 MHz

SW7 11.45 –12.25 MHz (DEMO Board Default)

SW8 11.6–12.2 MHz

SW9 13.4–14.2 MHz (DEMO Board Default)

SW10 13.57 - 13.87 MHz

SW11 15–15.9 MHz (DEMO Board Default)

SW12 15.1–15.8 MHz

SW13 17.1–18 MHz (DEMO Board Default)

SW14 17.48–17.9 MHz

SW15 21.2–22 MHz (DEMO Board Default)

SW16 21.45–21.85 MHz


Supports wider FM/SW band range

Twelve positions slide switch or one push button for selecting different bands according to the target
application

Two AAA battery operations with working voltage down to 2.0 V

Economical potentiometer for frequency tuning replaces more expensive variable capacitor (PVC)

Potentiometer and/or push button volume control

FM 50 µs or 75 µs (default) de-emphasis

9-level Bass/Treble via push button control for FM

7-level Bass/Treble via push button control for AM/ SW

FM/AM/SW band indicator and frequency display in LCD

2×4 matrix keypad

The frequency range of each band, de-emphasis, and AM channel space can be re-configured by host
MCU.
Rev. 0.1 5/13
Arrow.com.
Downloaded from
B
U
EM O
OARD
Copyright © 2016 by Silicon Laboratories
S i 4 8 4 4 - B - D E M O
'
G
SER
S
U I D E
Si4844-B-DEMO

Advertisement

loading
Need help?

Need help?

Do you have a question about the Si4844-B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Silicon Laboratories Si4844-B Series

  • Page 1 FM/AM/SW band indicator and frequency display in LCD  2×4 matrix keypad  The frequency range of each band, de-emphasis, and AM channel space can be re-configured by host MCU. Rev. 0.1 5/13 Copyright © 2016 by Silicon Laboratories Si4844-B-DEMO Arrow.com. Downloaded from...
  • Page 2 Si4844-B-DEMO 2. Overview This manual describes the operation of the Silicon Labs Si4844 DEMO board Rev1.4, Mar 12, 2013. The Silicon Laboratories Si4844-DEMO board is designed with the 24-pin SSOP packaged Si4844-B chip, the revolutionary single chip AM/FM/SW receiver that integrates everything from antenna input to audio output and allows use of common and economical potentiometers to do the frequency tuning.
  • Page 3 Si4844-B-DEMO Figure 2. Si4844-DEMO Board Bottom Side Rev. 0.1 Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from...
  • Page 4 Si4844-B-DEMO Power: BAT1: 2 cells AAA battery holder Audio Connectors: J5: Stereo audio headphone output Antenna Selections: AM antenna: Ferrite stick antenna for AM J6: SMA connector for AM conductive test S11: AM antenna selector 1-2: SMA for AM Conductive Test (J6) 2-3: AM Ferrite Antenna J1: BNC connector for FM/ SW conductive test or FM whip antenna S12: FM antenna selector...
  • Page 5 For the tuner specification test, TP1 is the recommended tuner output test point. The audio test instrument should be connected to TP1 to get accurate test results. TP1: Main Components: U1: Silicon Laboratories Si4844-B FM/AM/SW ATDD receiver U2: Audio amplifier U3: MCU LCD: The digital display for tuning information Rev.
  • Page 6 Si4844-B-DEMO Control Interface: VR1: Frequency tuning wheel VR2: Volume control wheel S3~S10: The keypad for human interface S2: Band switch for FM, AM, and SW Band definition for the slide switch is as follows: 1: FM1 (W 64–108 MHz) (N 87–108 MHz), ST indication = 6 dB separation@20 dBµV 2: FM5 (W 76–108 MHz) (N 64–87 MHz), ST indication = 6 dB separation@20 dBµV 3: AM1 (520–1710 kHz), 10 kHz spacing 4: AM2 (522–1620 kHz), 9 kHz spacing...
  • Page 7 Si4844-B-DEMO Table 1. Key Function Description Button/Mode Time Mode FM/AM/SW Radio Mode Tuner Off Tuner On POWER/BAND Hold Time None Change between FM, AM, and SW (there < 1s are 2 FM bands, 2 AM bands, and 8 SW bands) Hold Time Enable radio Disable radio function and enter Time mode.
  • Page 8 Si4844-B-DEMO Table 2. Radio Configuration Parameters FM Parameter AM Parameter SW Parameter Bass/Treble: 0-8 Bass/Treble: 1-7 Bass/Treble: 1-7 Default: 4 Default: 3 Default: 3 Digital volume: 0-63 Digital volume: 0-63 Digital volume: 0-63 Default: 63 Default: 63 Default: 63 Band top: max 109 MHz Band top: max 1750 kHz Band top: max 28.5 MHz Default: 108/108 MHz for...
  • Page 9: Operation

    Si4844-B-DEMO 4. Operation The S4844-DEMO Board, a complete analog tune and digital display radio, provides two major modes of operation: Time mode and FM/AM/SW Radio mode. 4.1. Time Mode Put two AAA batteries into the battery compartment. The board will automatically enter Time Mode and display the time.
  • Page 10 Si4844-B-DEMO 4.2. FM/AM/SW Radio Mode In Time mode, after a long press (hold time > 1s) of the POWER/BAND button or when the alarm time is reached, the device will enter FM/AM/SW Mode. The LCD displays the following information: band indicator, band frequency indicator, and sleep indicator in case the radio is automatically turned on by the alarm.
  • Page 11 Si4844-B-DEMO 4.2.1. MCU Setting Band Property The demo board provides the function that the band property can be set by MCU. The band property includes:  Band top  Band bottom  De-emphasis (only for FM)  Channel space (only for AM) The setting menu is illustrated in Figure 4.
  • Page 12 Si4844-B-DEMO 4.2.2. MCU Setting Radio Working Mode The host MCU can set the radio working mode. The working modes include:  Tone/volume mode (only for FM), item 3 in setting menu  Tuning preference (only for FM and SW), item 4 in setting menu ...
  • Page 13: Bill Of Materials

    Si4844-B-DEMO 5. Bill of Materials  ATDD AM/FM/SW receiver IC Si4844-B with external 32.768 kHz crystal oscillator support  LM4910MA audio amplifier IC  TM8723 MCU  See Table 3 for details Table 3. Si4844-DEMO Board Bill of Materials REV 1.4 Item Qty Reference Description...
  • Page 14 Si4844-B-DEMO Table 3. Si4844-DEMO Board Bill of Materials REV 1.4 (Continued) Item Qty Reference Description Value RES,SM,0603,Tolerance ±1% 160k 1% R9-12 R14-15 R28 R33 R35 RES,SM,0603,Tolerance ±1% 20k 1% RES,SM,0603,Tolerance ±1% 30k 1% RES,SM,0603,Tolerance ±1% 33k 1% RES,SM,0603,Tolerance ±1% 40k 1% RES,SM,0603,Tolerance ±1% 47k 1% SI4844-B SOIC16...
  • Page 15 Si4844-B-DEMO 6. Schematics Rev. 0.1 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 16 Si4844-B-DEMO Rev. 0.1 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 17 Si4844-B-DEMO Rev. 0.1 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 18 The products must not be used within any Life Support System without the specific written consent of Silicon Laboratories. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal injury or death.
