Si4312 D
EM O
1. Overview
The Silicon Laboratories Si4312-DEMO board provides a complete OOK radio design with numerous selectable
features that demonstrate the capabilities of the Silicon Laboratories Si4312 OOK receiver. The Si4312-DEMO
board can be configured to receive OOK data from an SMA connector or wirelessly with an on-board printed circuit
board (PCB) antenna. The demodulated output data from the Si4312-DEMO board can be measured via an SMA
connector and/or observed with an LED and/or heard with an audio buzzer. The system is powered by a 9 V
battery or an external 3.3 V power supply.
2. Features
Single chip OOK receiver
Selectable 315/433.92 MHz carrier frequency
Selectable data rate, threshold hold time
3. Description
Figures 1 and 2 show the physical layout of the board with key components indicated.
Rev. 0.3 9/09
B
U
OARD
SER

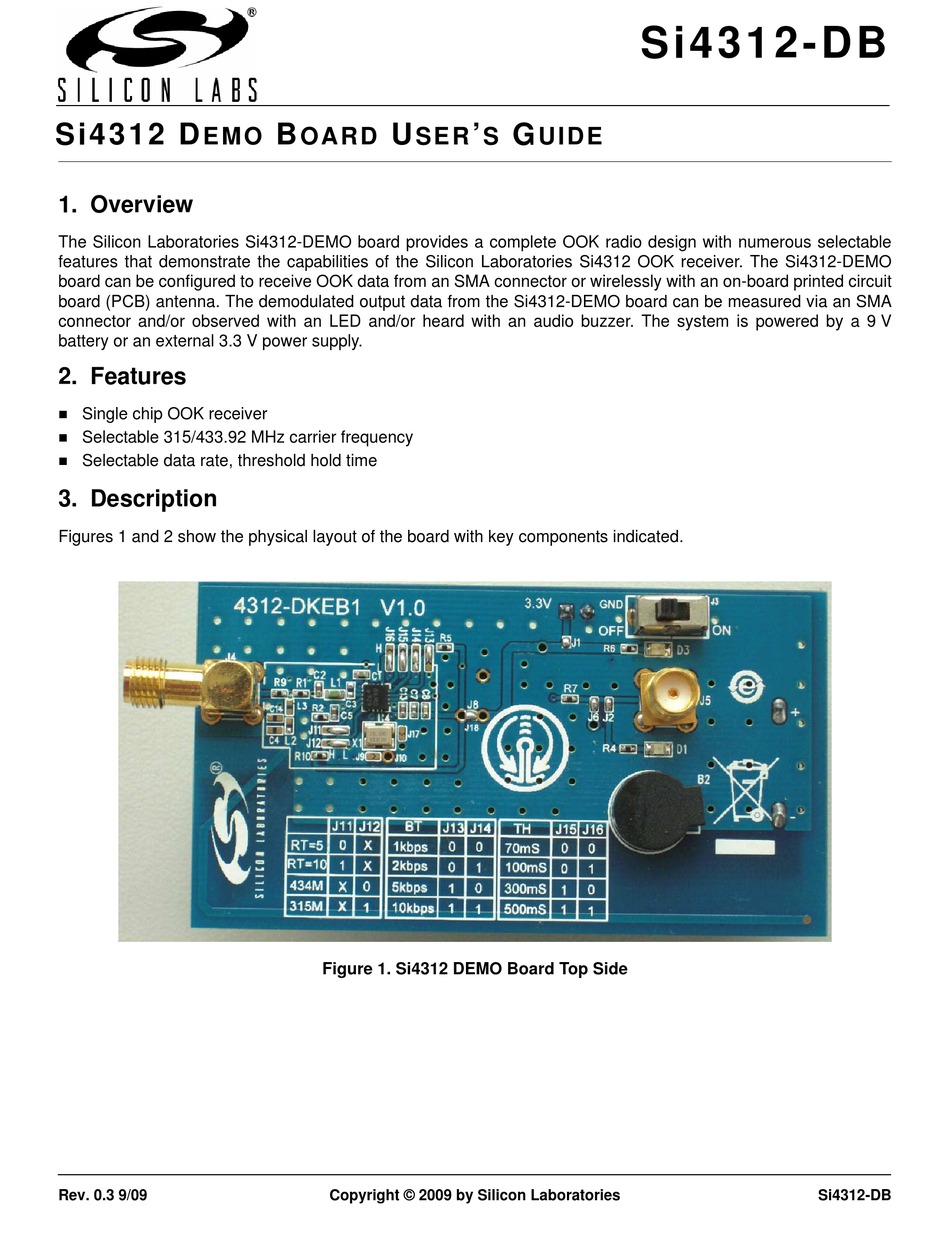

Figure 1. Si4312 DEMO Board Top Side
Copyright © 2009 by Silicon Laboratories
S i 4 3 1 2 - D B
'
G
S
U ID E
Si4312-DB
Advertisement
Table of Contents
Related Manuals for Silicon Laboratories Si4312
Summary of Contents for Silicon Laboratories Si4312
- Page 1 OOK data from an SMA connector or wirelessly with an on-board printed circuit board (PCB) antenna. The demodulated output data from the Si4312-DEMO board can be measured via an SMA connector and/or observed with an LED and/or heard with an audio buzzer. The system is powered by a 9 V battery or an external 3.3 V power supply.
- Page 2 Si4312-DB Figure 2. Si4312 DEMO Board Bottom Side with 9 V Battery Power Supply Connector J1: Jumper to select external 3.3 V supply. This is a solderable jumper and should be shorted when used. J7: External 3.3 V supply connector: +3.3 V with the jumper on the right side and GND on the left side.
- Page 3 Table 2. Frequency Deviation Selection Threshold Hold Time [ms] Key Components U4: Si4312 single chip OOK receiver. X1: 16 MHz crystal. D1: LED lights up when data output present. B2: Audio buzzer sounds when data output is present. Rev. 0.3...
- Page 4 Si4312-DB 4. Schematic Figure 3. Si4312-DEMO Schematic Rev. 0.3...
-
Page 5: Pcb Layout
Si4312-DB 5. PCB Layout Figure 4. Si4312 PCB Top Layer Figure 5. Si4312 PCB Bottom Layer Rev. 0.3... - Page 6 Si4312-DB Figure 6. Si4312 PCB Top Silkscreen Figure 7. Si4312 PCB Bottom Silkscreen Rev. 0.3...
-
Page 7: Bill Of Materials
Si4312-DB 6. Bill of Materials Reference Package Value AA_BATTERY 9.0 V BUZZER2 C1,C7 CMS0402 22 nF CMS0603 15 pF C3,C4 CMS0603 C5,C9 CMS0402 1 µF CMS0402 CMS0402 0.1 µF CMS0402 10 nF CMS0603 2.2 µF CMS0402 220 pF CMS0603 D1,D3... - Page 8 Si4312-DB 7. Receiving Data Status 8. References Si4312 Data Sheet Rev. 0.3...
- Page 9 Si4312-DB OTES Rev. 0.3...
-
Page 10: Contact Information
