Page 1: Introduction

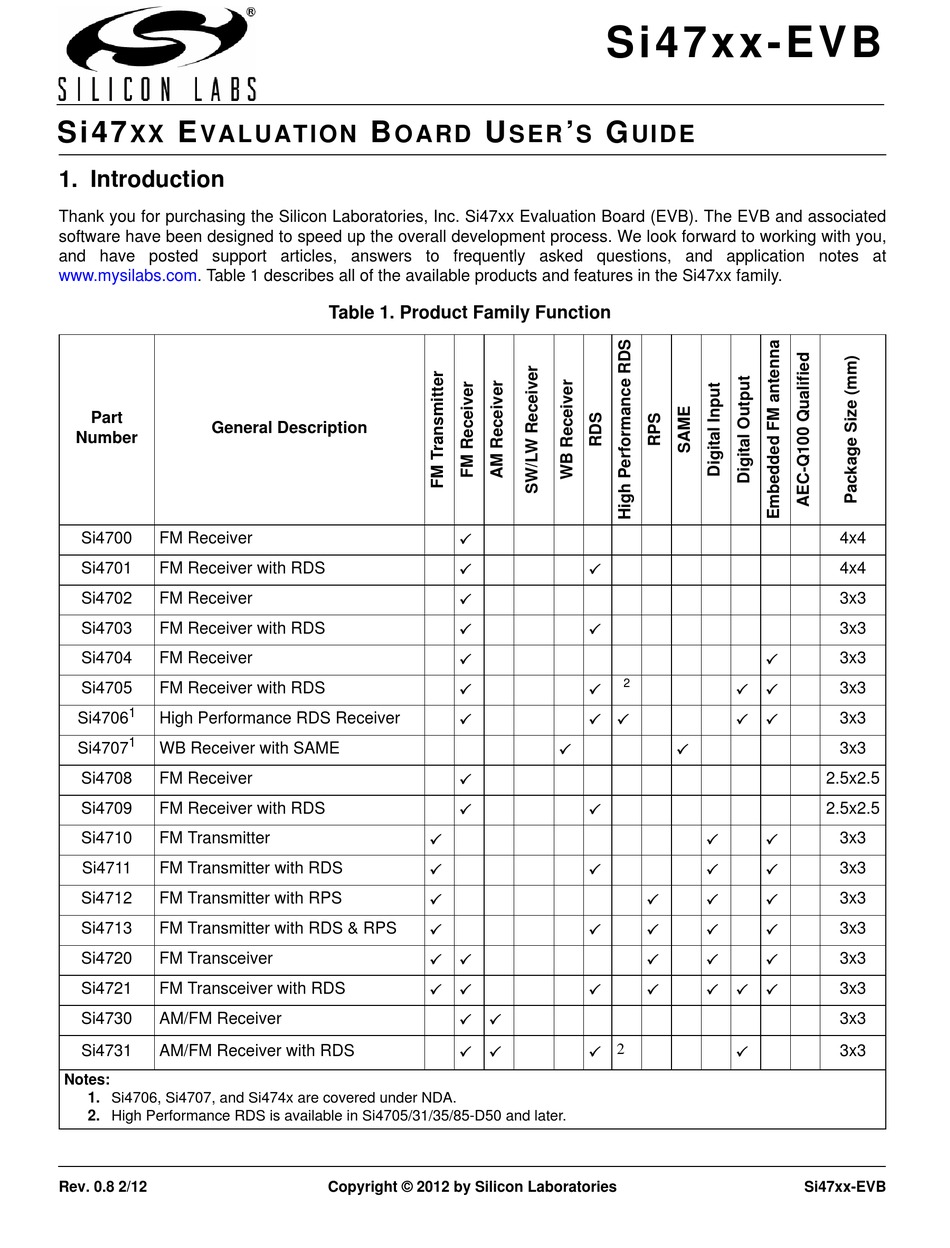

UIDE 1. Introduction Thank you for purchasing the Silicon Laboratories, Inc. Si47xx Evaluation Board (EVB). The EVB and associated software have been designed to speed up the overall development process. We look forward to working with you, and have posted support articles, answers to frequently asked questions, and application notes at www.mysilabs.com.
Page 2 Si47xx-EVB Table 1. Product Family Function (Continued) Part General Description Number Si4734 AM/SW/LW/FM Receiver    Si4735 AM/SW/LW/FM Receiver with RDS  2     Si4736 AM/FM/WB Receiver    Si4737 AM/FM/WB Receiver with RDS ...
Page 3: Table Of Contents
Si47xx-EVB ABLE O F ONTENTS 1. Introduction .............1 2.
Page 4 12.1. Si47xx-EVB Baseboard Rev 1.6 ........
Page 5 Si47xx-EVB This user's guide contains information related to only the Si47xx EVBs itemized in Table 2. Table 2 serves as a quick reference guide for the sections of interest for your EVB. Sections 1, 4, 9, and 10 of the document apply to all EVBs.
Page 6 Development application GUI rev 2.5.4 or later  User's guide  Quick start guide. The unique set of components for each EVB kit is defined in Table 3.  Table 3. Si47xx-EVB Kit Unique Contents Adapters EVB Kit Base Daughtercard Antenna...
Page 7 Si47xx-EVB Table 3. Si47xx-EVB Kit Unique Contents (Continued) Adapters EVB Kit Base Daughtercard Antenna Antennas Board Cards Male to Male to Female to Male to BNC Male Female Female Male Si47xx Si473x SW antenna Whip Si4735-EVB Base board Daughter antenna Rev1.3 or...
Page 8: Description

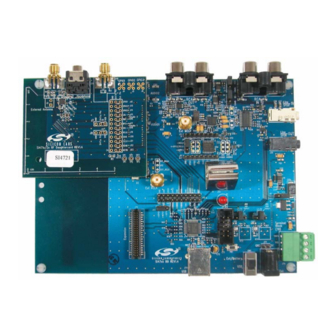

Si47xx-EVB 2. Description Si47xx EVB consists of a baseboard, a daughtercard with the Si47xx part pre-mounted, and, if applicable, an antenna card. The baseboard is common and shared among all Si47xx EVBs. The following sections refer to both the images in the figures and the silkscreen on the Si47xx EVB. Please refer to both when using this guide.
Page 9 Si47xx-EVB Baseboard audio I/O connectors: RCA output Line output Note: Line output will not be supported on new EVBs as of February 14, 2011. Baseboard clock connectors/devices: 32.768 kHz crystal oscillator Solder bump: select internal RCLK from oscillator Ext RCLK SMA connector input...
Page 10 Si47xx-EVB The Si47xx EVB can be powered using one of the following power supply options: 1. USB power supply via J79 2. External dc (Ext DC) power supply via power jack J78 or battery via J77 3. Three separate power supplies (Vdd, Vio, Vmcu) via terminal block J76 The EVB has three supply rails: Vdd, Vio, and Vmcu.
Page 11 Figure 5. MCU Block Diagram The Si47xx EVB uses a Silicon Laboratories' C8051F342 microcontroller to control the Si47xx and to provide USB connectivity from the host PC (via connector J79). The LED D1 illuminates to confirm that power is being properly supplied to the C8051F342 and firmware has loaded.
Page 12 Si47xx-EVB 2.1.3. Reference Clock Daughterboard Jumper Si47xx 32.768 kHz DIS_INT_RCLK INT RClk Jumper RCLK INT_RCLK EXT_RCLK RClk Figure 6. Reference Clock Block Diagram The Si47xx accepts a 32.768 kHz reference clock at the RCLK pin. On the EVB, this clock is provided by a precision crystal oscillator.
Page 13 Si47xx-EVB The EVB supports three different kinds of configurations for the FM transmitter:  Analog In to Analog In  Analog In to Digital In  Digital In to Digital In Analog In to Analog In: This configuration provides a way for the user to evaluate the analog audio input for FM transmission.
Page 14 Si47xx-EVB IMPORTANT: Jumper Settings Because of the many possibilities available to configure the EVB, ensure that these four jumpers are set accordingly: 1. J41: GPO3/DCLK setting 2. J44: TX/RX setting for Audio1 I/O (automatically set by the GUI for baseboard 1.3 and later) 3.
Page 15: Si47Xx Daughtercards
Si47xx-EVB 2.2. Si47xx Daughtercards 2.2.1. Si471x/2x Daughtercard Figure 8. Si471x/2x Daughtercard Connectors and Devices Daughtercard Connectors and Components: Si472x FM Transceiver or Si470x FM Receiver or Si471x FM Transmitter Tuning Inductor 0  resistor to connect FM TX output to 10 cm trace built-in antenna 2 pF capacitor to connect FM TX output to J1 SMA connector 50 ...
Page 16 Si47xx-EVB Figure 9. Fully Assembled Si471x/2x EVB Si470x/1x/2x EVBs use Si471x/2x daughtercard with different population options depending on the individual Si470x/1x/2x part. Please refer to individual Bill of Materials for each board. Rev. 0.8...
Page 17 Si47xx-EVB 2.2.2. Si473x Daughtercard Figure 10. Si473x Daughtercard Connectors and Devices Daughtercard connectors and components: SMA connector for AM test circuit (does not apply to Si4707-EVB) Header for antenna interface connection Headphone jack SMA connector for FM test circuit 270 nH inductor for FM input...
Page 18 Si47xx-EVB Figure 11. Fully Assembled Si473x-EVB with Ferrite Antenna Card The Si473x/07 EVBs use Si473x daughtercard with different population options depending on the individual Si473x/07 part. Please refer to individual Bill of Materials for each card. Table 4 shows the antenna and audio connections for the Si47xx EVBs.
Page 19 Si47xx-EVB 2.2.3. Si474x Daughtercard Figure 12. Si474x Daughtercard Connectors and Devices Daughtercard connectors and components: BNC connector for antenna connection C6, C1, C18 Vdd bypass capacitor FM matching component L1, L5 FM matching component Q1–2 Cascode amplifier for AM front-end boost circuit.
Page 20 Si47xx-EVB Figure 13. Fully Assembled Si474x-EVB Rev. 0.8...
Page 21 Si47xx-EVB 2.2.4. Si4749 Daughtercard Figure 14. Si4749 Daughtercard Connectors and Devices Daughtercard connectors and components: SMA connector for pass-thru FM connection SMA connector for FM antenna connection Vdd bypass capacitor FM matching component Si4749 RDS Receiver The daughtercard implements the Si4749 RDS receive solution. The SMA connector, J2, allows the user to attach a whip antenna for FM reception or a signal generator for FM test circuit.
Page 22 Si47xx-EVB Figure 15. Fully Assembled Si4749-EVB Rev. 0.8...
Page 23 Si47xx-EVB 2.2.5. Antenna Interfaces 2.2.5.1. AM Antenna Interface Figure 16. Antenna Board Options—SL4X30MW100T (Medium Ferrite), SL5X7X100MW70T (Large Ferrite), and SL9X5X4MWTF Airloop The user has the flexibility of choosing one of the two available antenna options. The user can either decide to use the airloop antenna or the ferrite loop stick antenna.
Page 24 Si47xx-EVB 2.2.5.2. SW and Weather Band Antenna Interfaces Figure 17. SW/WB Antenna Card (SW Population) and (WB Population) The BNC connector, J2, will be used to connect a whip antenna for shortwave, FM, and weather band reception. For SW reception, switch S1 must be in the SW position. The ferrite bar is used for AM reception, and the switch S1 must be in the AM position for AM reception.
Page 25 Si47xx-EVB Table 4. Si47xx Antenna Connections EVB Kit Receiver AM Antenna SW Antenna WB Antenna Name Options Connections Antenna Connections Options Connections Options Connections Options Si4705-X- Si4705 None None Head- None None phone Trace Si4706-X- Si4706 None None Head- None...
Page 26 Si47xx-EVB Table 4. Si47xx Antenna Connections (Continued) EVB Kit Receiver AM Antenna SW Antenna WB Antenna Name Options Connections Antenna Connections Options Connections Options Connections Options Whip/WB Whip/WB Antenna Antenna Card. Card For WB recep- tion, set the S1 switch to WB...
Page 27 Si47xx-EVB 2.2.6. Test Circuit Interfaces Table 6 shows the test circuit interface connections for Si47xx EVBs. Table 6. Si47xx Test Circuit Connections EVB Kit Name Receiver AM/SW/LW AM/SW/LW FM Test FM Connections Audio Out Audio Out Audio In Audio In...
Page 28: Recommended Hardware Setup
Si47xx-EVB 3. Recommended Hardware Setup The Si47xx-EVB can be configured for FM transmit, FM receive, WB receive, or AM/SW/LW receive. The following is a description of how to correctly configure the device for either mode of operation. 3.1. Hardware Setup for FM Transmitter Test...
Page 29: Hardware Setup For Fm Or Weather Band Receiver Test
Si47xx-EVB 3.2. Hardware Setup for FM or Weather Band Receiver Test Audio Generator Analyzer SMA Cable RCA Cable J28 or J26 Optical FM IN RCA OUT RCA IN Cable Si47xx Jumpers Daughterboard Setting S/PDIF DCLK GPIO3 J44 J45 Note: J44 and J45 are automatically configured in EVB Rev1.3 and later...
Page 30: Hardware Setup For Am Receiver Test
Si47xx-EVB 3.3. Hardware Setup for AM Receiver Test Audio Analyzer RCA Cable J28 or J26 Optical FM IN RCA OUT RCA IN Cable Si473x Jumpers Daughterboard Generator Setting S/PDIF DCLK SMA Cable GPIO3 J44 J45 Note: J44 and J45 are automatically configured in EVB Rev1.3 and later...
Page 31 Si47xx-EVB Audio Analyzer/ Amplifier RCA Cable RCA OUT Optical Cable Si474x Antenna Daughterboard Generator Dummy S/PDIF AM Test Setup Si47xx Baseboard Terminal Block (TB) EXT pwr USB pwr EXT Jack USB Cable w/ USB port Figure 22. Hardware Setup for AM Receiver Test (Si474x) Instructions for Si474x daughtercards: 1.
Page 32: Getting Started
Windows XP, Windows 2000, and Windows 7. To install, insert the Silicon Laboratories Si47xx CD into the host machine CD drive and launch Windows Explorer. Open the CD to explore the contents in a window like the one shown in Figure 23.
Page 33: Board Initialization
Si47xx-EVB 4.2. Board Initialization After launching the GUI, you will be shown the initialization window as shown in Figure 25. Note: This window can be accessed at any time by choosing Initialize from the File menu from the main GUI screen.
Page 34 Si47xx-EVB 4.2.2. Board Discovery Bus Mode The initialize process can be configured to use either 2-wire or 3-wire bus mode. This can be configured by  selecting File Board Discovery Bus Mode. This feature is useful when using the Silabs EVB and GUI to control a prototype that is designed to use one bus mode only.
Page 35 Si47xx-EVB 4.2.3.3. Default Mode There are two or more default modes possible for each function.  Use Last UI State: When selected, the GUI will restore all settings on the device to the previous settings configured in the GUI the last time it was closed.
Page 36: Switching Functions
Si47xx-EVB 4.2.3.6. Bus Mode This setting affects all functions that are configured. It allows the device to be booted either in 2-wire or 3-wire mode. 4.2.3.7. Internal Oscillator When the "Use XOSCEN" is enabled and the board is configured to use the crystal oscillator, the GUI will boot the device using the crystal oscillator.
Page 37: State Management
Si47xx-EVB 4.4. State Management Once the part has been initialized, a State Management option becomes available in the File Menu. This GUI feature allows the user to save, retrieve, load, and delete the configuration state which contains the property values.
Page 38 Si47xx-EVB 4.4.3. Load Configuration State When a configuration state for a part has been saved, it will also appear in the Load State list as shown in Figure 32. Select the state you wish to load, and all properties and the tuning frequency of the saved configuration will be restored without doing initialization to the chip.
Page 39: Disconnecting The Evb
Si47xx-EVB 4.4.5. Export Saved State In addition to saving, retrieving, and deleting the configuration state, the GUI also gives the end user the ability to export the configuration state to a file. The file can then be imported to installations of the GUI on different machines to allow multiple users to easily implement the same configuration state.
Page 40: Fm Transmitter Gui
Si47xx-EVB 5. FM Transmitter GUI The first Si47xx window is the Initialization window as shown in Figure 35. Select the FM transmitter function. As an FM transmitter, there are three audio input settings available:  Analog Input  Analog to Digital Input ...
Page 41: Configuring The Si47Xx As An Fm Transmitter Using Digital Audio With Analog Audio Source
Si47xx-EVB 5.2. Configuring the Si47xx as an FM Transmitter Using Digital Audio with Analog Audio Source This mode configures the Si47xx to receive digital audio input at pins 13 and 14 (DIN and DFS), but the user still provides an analog audio source to the EVB. It is useful for a user who wants to test digital input on the Si47xx but does not have a digital audio source.
Page 42: Configuring The Si47Xx As An Fm Transmitter Using Digital Audio With Spdif Digital Source
Si47xx-EVB 5.3. Configuring the Si47xx as an FM Transmitter Using Digital Audio with SPDIF Digital Source This mode configures the Si47xx to receive digital audio input at pin 13 and 14 (DIN and DFS) when the user has an SPDIF digital audio source. The SPDIF source is converted to PCM digital audio by the SPDIF translator. Refer to Figure 42, “SPDIF Settings Property Window,”...
Page 43: Fm Transmitter Main Window
Si47xx-EVB 5.4. FM Transmitter Main Window The FM transmitter main window will appear after initialization. Figure 38. FM Transmitter Main Window Table 8. FM Transmitter Main Window Descriptions Description Range 1 Transmit frequency display. Enter the desired FM transmit frequency in this window.
Page 44 Si47xx-EVB Table 8. FM Transmitter Main Window Descriptions (Continued) Description Range 11 RDS Deviation. Enter the desired RDS deviation in this window (Si4711/13/21 only). 0–7.5 kHz 12 Total Deviation. This is an indicator only displaying the sum of the audio, pilot and RDS 0–187.5 kHz...
Page 45: Fm Transmitter Settings (Analog Mode) Property Window
Si47xx-EVB 5.5. FM Transmitter Settings (Analog Mode) Property Window  FM transmitter settings can be configured through the properties window by selecting Window Properties. Properties are grouped into categories which can be selected from the drop-down box in the upper right of the ...
Page 46 Si47xx-EVB Table 9. FM Transmitter Settings in Analog Mode Property Window Descriptions (Continued) Item Description Range Devices Reference Clock 1–4095 This field is used to specify the prescaler value. The Prescaler input to the RCLK pin divided by the prescaler is the reference clock.
Page 47: Fm Transmitter Settings (Digital Mode) Property Window
Si47xx-EVB 5.6. FM Transmitter Settings (Digital Mode) Property Window  FM transmitter settings can be configured through the properties window by selecting Window Properties. Properties are grouped into categories which can be selected from the drop-down box in the upper right of the ...
Page 48 Si47xx-EVB Table 10. FM Transmitter Settings in Digital Mode Property Window Descriptions (Continued) Item Description Range Applicable Devices Digital Mono On/Off Select between Digital Stereo or Mono. Mode Enable Digital DCLK On/Off Select between using rising edge or falling edge of Falling Edge DCLK when sampling Digital Input (DIN) data.
Page 49: Codec Settings
Si47xx-EVB 5.7. CODEC Settings In addition to other digital mode properties, a category of CODEC settings may configured by selecting   Window Properties CODEC Settings if CODEC mode was selected in the initialization window. Figure 41. CODEC Settings Property Window Table 11.
Page 50: Spdif Settings
Si47xx-EVB 5.8. SPDIF Settings In addition to other digital mode properties, a category of SPDIF settings may be configured by selecting   Window Properties SPDIF Settings if SPDIF mode was selected in the initialization window. Note: SPDIF will not be supported on new EVBs as of February 14, 2011. These properties will not be available through the GUI in conjunction with those boards.
Page 51: Fm Transmitter Receive Power Scan Window
Si47xx-EVB 5.9. FM Transmitter Receive Power Scan Window The Receive Power Scan window enables the user to scan the entire FM band to find one or more candidate channels on which to transmit, where candidate channels are defined as those with the lowest received power.
Page 52: Fm Transmitter Radio Data Service (Rds)
Si47xx-EVB 5.10. FM Transmitter Radio Data Service (RDS) The RDS/RBDS feature is available with the Si4711/13/21. This user guide assumes that the user is already familiar with the RDS/RBDS standard. If necessary, the user may refer to the following documents to become familiar with the RDS/RBDS standard.
Page 53 Si47xx-EVB Figure 45. RDS Transmit Window Table 13. RDS Transmit Window Descriptions Item Description General RDS/RBDS Selection Select either RDS format (Europe) or RBDS format (US). Program Type (PTY) Select the available Program Type (PTY) from the pulldown menu. PTY Dynamic Select whether the PTY will be dynamic or static.
Page 54 Si47xx-EVB Table 13. RDS Transmit Window Descriptions Item Description Stereo Part of RDS Group Type 0 (PS): Enter whether the transmitted audio is Stereo or Mono. Audio Compression Part of RDS Group Type 0 (PS): Enter whether the Audio Compression is On or Off.
Page 55 Si47xx-EVB There are 16 different group types in the RDS/RBDS standard, and for every group the following information is always transmitted: 1. Program Identification (PI) 2. Program Type (PTY) The GUI makes it easy to send data in three of the following group types: 1.
Page 56 Si47xx-EVB 5.10.1. Basic The RDS Transmit Window is divided into three categories: 1. General 2. Program Service 3. Buffers In the basic section, we will cover two out of the three categories: the General and Program Service. In the General category, the user can set the PI and PTY data.
Page 57 Si47xx-EVB 5.10.2. Intermediate In the intermediate section, we will cover the buffers category of sending the RDS data with the device, in particular we will send Group Type 2 (Radio Text) and Group Type 4 (Clock Time). The following diagram shows a step-by-step procedure to send the buffers data in addition to the General and Program Service data covered in the basic section.
Page 58 Si47xx-EVB value is set to anything other than 100%. 5. Clicking the "Add Time" button here will add the current time as a RDS Group Type 4 message to the GUI FIFO Buffer queue. 6. Clicking the "Clear Buff & Send" button will upload the message from the FIFO Buffer Indicator Window into the FIFO Buffer inside the device.
Page 59 Si47xx-EVB uploaded means that the RT is uploaded with the flag set. Un-checking this box when an RT is uploaded means that the flag is not set. This flag tells the receiver that when the flag toggles from set to reset or vice versa, the receiver will clear the display before showing the next RT.
Page 60: Fm Transmitter Register Map Window
Si47xx-EVB 5.11. FM Transmitter Register Map Window The register map window allows the user to manually program the device by sending commands to the chip. Refer  to “AN332: Si47xx Programming Guide” to manually program the device. Clicking on Window Register Map will launch the Register Map Window as shown in Figure 49.
Page 61: Fm Receiver Gui
41/42/43/44/45) and Si4749-EVB. You can use the EVB Audio Settings drop down box to select the audio mode used by the Si47xx part. See Section 2.1.4 of the Si47xx-EVB User’s Guide for more information on this setting. The Si4749 can also be programmed as an RDS only tuner. This selection is available through the EVB Audio Setting drop down box as well.
Page 62: Fm Receiver Main Window
Si47xx-EVB 6.2. FM Receiver Main Window The FM receiver main window will appear after initialization. Figure 51. FM Receiver Main Window Figure 52. FM Receiver Main Window for Si474x Rev. 0.8...
Page 63 Si47xx-EVB Table 14. FM Receiver Main Window Descriptions Name Descriptions Tune/Seek Tune Down (<), Tune Up (>) buttons execute a single channel step according to the channel spacing setting. The channel spacing setting can be set in the property window.
Page 64: Fm Receiver Settings Property Window
Si47xx-EVB 6.3. FM Receiver Settings Property Window  FM receiver settings can be configured through the properties window by selecting Window Properties. Properties are grouped into categories which can be selected from the drop-down box in the upper right of the ...
Page 65 Si47xx-EVB Figure 54. FM Receiver Setting Property Window for Si474x (1 of 2) Rev. 0.8...
Page 66 Si47xx-EVB Figure 55. FM Receiver Setting Property Window for Si474x continued (2 of 2) Rev. 0.8...
Page 67 Si47xx-EVB Table 15. FM Receiver Settings Property Window Descriptions Items Description Range Applicable Devices AGC Attack Rate Larger values provide slower attack 4–248 Si474x and smaller values provide faster attack. AGC Index If AGC override is set to “ON,” this property 0–26...
Page 68 Si47xx-EVB Table 15. FM Receiver Settings Property Window Descriptions (Continued) Items Description Range Applicable Devices Digital Sample 8-bit, 16-bit, 20- Digital audio output bit precision. Si4705/06, bit, 24-bit Precision Si4721/31/35/37/39, Si4730/34/36/38-D60 and later, Si4741/43/45, Si4784/85 Digital Sample Rate 0, 32000–...
Page 69 Si47xx-EVB Table 15. FM Receiver Settings Property Window Descriptions (Continued) Items Description Range Applicable Devices Hi-Cut SNR High Sets the SNR level at which hi-cut begins to 0 – 127 dB Si4740/41/42/43/44/45, Threshold band limit. Si4704/05-D50 and later, Si4706-C30 and later,...
Page 70 Si47xx-EVB Table 15. FM Receiver Settings Property Window Descriptions (Continued) Items Description Range Applicable Devices Seek Band Top The upper frequency limit for the seek US: 107.9 MHz (MHz) function. This is set automatically by the (200 kHz GUI based on band and spacing selection.
Page 71 Si47xx-EVB Table 15. FM Receiver Settings Property Window Descriptions (Continued) Items Description Range Applicable Devices Blend Multipath Attack rate associated with multipath when 0–32767 Si4740/41/42/43/44/45, Attack Rate adjusting blend. If set to 0, attack would be Si4704/05-D50 and later, disabled.
Page 72 Si47xx-EVB Table 15. FM Receiver Settings Property Window Descriptions (Continued) Items Description Range Applicable Devices Blend SNR Release Release rate associated with SNR when 0–32767 Si4740/41/42/43/44/45, Rate adjusting blend. If set to 0, release would be Si4704/05-D50 and later, disabled.
Page 73: Codec And Spdif Settings
6.4. CODEC and SPDIF Settings Si47xx-EVB baseboard has a Codec and an SPDIF translator for digital audio output. For tuners with digital audio option, you can set properties for the Codec and SPDIF through the GUI. These settings can be used with AM or FM tuners that have digital audio enabled.
Page 74: Fm Receiver Rds Window
Si47xx-EVB 6.5. FM Receiver RDS Window The FM receive RDS window allows the user to view program service, program type, PI code, radio text, enhanced radio text, radio text plus, clock, group error rate, sync time and display times, an alternate frequency list, and ...
Page 75 Si47xx-EVB Table 17. FM Receiver Settings RDS Window Descriptions Items Description Radio Data Service PS: Program Service Indicator (8 characters). RT: Radio Text Indicator (64 characters). eRT: Enhanced Radio Text Indicator CT: Clock Indicator showing time, day, and date. Group Error Rate indicates the percentage of uncorrectable groups received.
Page 76 Si47xx-EVB Figure 58. RDS Group Counters Window Rev. 0.8...
Page 77: Fm Receiver Rds Settings
Si47xx-EVB 6.6. FM Receiver RDS Settings   RDS settings are configured by selecting Window Properties FM Receiver RDS Settings. Figure 59. FM Receiver RDS Settings Window Rev. 0.8...
Page 78 Si47xx-EVB Table 18. FM Receiver RDS Settings Window Descriptions Item Description Range Misc. RDS State Enables and disables RDS. On, Off RDS Error Checking (RT and PS) Selects GUI error checking level. Minimum, Mid-Range, Maximum Minimum displays text as received.
Page 79: Fm Ui Settings
Si47xx-EVB 6.7. FM UI Settings Figure 60. FM UI Settings Property Window Table 19. FM UI Settings Property Window Descriptions Hems Description Range Misc. 0.2–4.0 seconds Update Rate (sec) The time span when the UI gets status information from the part.
Page 80: Fm Receiver Rssi/Snr Graph Window
Si47xx-EVB 6.8. FM Receiver RSSI/SNR Graph Window The RSSI/SNR Graph Window allows the user to plot RSSI and SNR across the FM band. Bitmap data can be   saved to file by selecting File Save as Bitmap and tabulated data can be saved to file by selecting File Save to .csv.
Page 81: Fm Receiver Register Map Window
Si47xx-EVB 6.9. FM Receiver Register Map Window The register map window allows the user to manually program the device by sending commands to the device. Refer to "AN332: Si47xx Programming Guide" to manually program the device. Figure 62. FM Receiver Register Map Window...
Page 82: Fm Receiver Logging Tools
Si47xx-EVB 6.10. FM Receiver Logging Tools The GUI provides several useful logging tools. In the tools menu, user can choose to log raw RDS data, band scan data, device commands and channel info. Figure 63. Logging Tools 6.10.1. Log Band Scan ...
Page 83: Fm Receiver Configuration Helper
Si47xx-EVB 6.11. FM Receiver Configuration Helper The configuration helper is a useful tool for configuring the thresholds related to RSSI based Blend, SNR based Blend, Multipath based blend, SNR based hi-cut, Multipath based hi-cut, and Soft Mute. Figure 64. FM Configuration Helper Figure 65.
Page 84 Si47xx-EVB Table 21. Configuration Helper Window Descriptions Item Description Select Parameter Selects between Hi-cut Multipath (Si4706/4x only), Hi-cut SNR(Si4706/ 4x only), SoftMute, Stereo blend Multipath (Si4706/4x only), Stereo Blend RSSI and Stereo Blend SNR (Si4706/4x only). Hi-cut/ Blend/Soft Mute Graph The plot displays the device threshold and rate settings, current signal conditions, and the calculated audio conditioning.
Page 85 Si47xx-EVB Figure 66. FM Configuration Helper Window (SNR Based Hi-cut) In the example shown in Figure 66, the current level marker shows that hi-cut filter is set at 6 kHz. This is determined by both SNR and multipath conditions. Current SNR is 5 dB. Hi-cut SNR Low Threshold is set at 15 dB and hi-cut minimum frequency is set at 6 kHz.
Page 86 Si47xx-EVB Figure 67. FM Configuration Helper Window (Softmute) In the example shown in Figure 67, the current level marker shows that Soft Mute level is 0 dB. SNR threshold is programmed as 4 dB and max attenuation is 16 dB. Since the SNR reported by the part is 5 dB, which is above the threshold, the softmute level is 0 dB.
Page 87 Si47xx-EVB Figure 68. FM Configuration Helper Window (SNR Based Blend) In the example shown in Figure 68, the Current Level marker shows that Stereo % is 56%. SNR threshold is programmed as 14 dB (and below) for full mono and 30 dB (and above) for full stereo. Since the SNR reported by the part is in between the thresholds, the stereo level is 56%.
Page 88 Si47xx-EVB Figure 69. FM Configuration Helper Window (RSSI Based Blend) In the example shown in Figure 69, the Current Level marker shows that Stereo % is 56%. RSSI threshold is programmed as 30 dBµV (and below) for full mono and 49 dBµV (and above) for full stereo. RSSI reported by the part is in between the thresholds however the final blend percentage is determined by SNR and the stereo level is 56%.
Page 89 Si47xx-EVB In the example shown in Figure 70, the Current Level marker shows that Stereo % is 50%. Multipath threshold is programmed as: 60% (and above) for full mono and 20% (and below) for full stereo. Multipath reported by the part is 11% which would put the part in full stereo.
Page 90: Weather Band Gui
Si47xx-EVB 7. Weather Band GUI 7.1. WB Receiver Initialization The first Si47xx window is the Initialization window as shown in Figure 71. On the function menu, select and highlight the function of the Si47xx as a WB Receiver. Select the Boot Mode, Audio Mode, Firmware, Bus Mode, and initial part settings and then click Initialize.
Page 91: Weather Band Main Window
Si47xx-EVB 7.2. Weather Band Main Window The weather band main window will appear after initialization. Figure 72. Weather Band Receiver Main Window Table 22. Weather Band Receiver Main Window Descriptions Name Description Tune Down (<), Tune Up (>) buttons execute a signal channel step (25 kHz step).
Page 92: Weather Band Settings Property Window
Si47xx-EVB 7.3. Weather Band Settings Property Window  WB receiver settings can be configured through the properties window by selecting Window Properties. Properties are grouped into categories which can be selected from the drop-down box in the upper right of the ...
Page 93 Si47xx-EVB Table 23. Weather Band Receiver Settings Property Window (Continued) Item Description Range Applicable Devices Digital Sample Rate Hz DFS sample rate for digital input signal. Recom- 0, 32000– mended values are: 32 kHz, 44.1 kHz, or 48 kHz. 48000 Hz Over-sampling rate must be set in order to satisfy a minimum DCLK of 1MHz.
Page 94: Weather Band Receiver Rssi/Snr Graph Window
Si47xx-EVB 7.4. Weather Band Receiver RSSI/SNR Graph Window The RSSI/SNR Graph Window allows the user to plot RSSI and SNR across the weather band. Bitmap data can be   saved to file by selecting File Save as Bitmap and tabulated data can be saved to file by selecting File Save to .csv.
Page 95: Weather Band Receiver Register Map Window
Si47xx-EVB 7.5. Weather Band Receiver Register Map Window The register map window allows the user to manually program the device by sending commands to the device. Refer to "AN332: Si47xx Programming Guide" to manually program the device. Figure 75. Weather Band Receiver Register Map Window...
Page 96: Weather Band Receiver Same Event Data (Si4707 Only)
Si47xx-EVB 7.6. Weather Band Receiver SAME Event Data (Si4707 only) The SAME Event Data window allows the user to view the SAME message description, originator ID, originator type, purge time, origination time, region along with the raw data and event confidence.
Page 97: Am Receiver Gui
Si47xx-EVB 8. AM Receiver GUI 8.1. AM Receiver Initialization The first Si474x window is the Initialization window as shown in Figure 77. On the function drop-down menu, select the function of the Si474x as an AM Receiver. Select the device, busmode, firmware revision, and initial part settings and then click Initialize.
Page 98: Am Receiver Main Window
Si47xx-EVB 8.2. AM Receiver Main Window The AM receiver main window will appear after initialization. Figure 78. AM Receiver Window Table 25. AM Receiver Window Descriptions Name Description Tune/Seek Tune Down (<), Tune Up (>) buttons execute a single channel step according to the channel spacing setting.
Page 99 Si47xx-EVB Table 25. AM Receiver Window Descriptions (Continued) Name Description Status The RSSI indicator displays the RSSI of the signal in dBuV. The SNR indicator displays the SNR of the received signal in dB. The varactor value specifies the capacitance of the tuning front-end.
Page 100: Am Receiver Property Settings Window
Si47xx-EVB 8.3. AM Receiver Property Settings Window  AM receiver settings can be configured through the properties window by selecting Window Properties. Properties are grouped into categories which can be selected from the drop-down box in the upper right of the ...
Page 101 Si47xx-EVB Figure 80. AM Receiver Settings Property Window for Si474x Rev. 0.8...
Page 102 Si47xx-EVB Table 26. AM Receiver Property Window Descriptions Name Description Range Applicable Devices AGC Attack Rate Sets the AGC attack rate. Larger values provide 4–248 Si4740/41/42/43/ 44/45 slower attack and smaller values provide faster attack. AGC Frontend 0–28 Si4740/41/42/43/ Sets gain index backup (ATTN_BACKUP) for exter- Attn.
Page 103 Si47xx-EVB Table 26. AM Receiver Property Window Descriptions (Continued) Name Description Range Applicable Devices Digital Format I2S, Left-Justified, Si4705/06, Format of digital audio output. Si4731/35/37/39, Si4730/34/36/38- D60 and later, Si4741/43/45, Si4784/85 Digital Mono ON, OFF Si4705/06, ON enables mono in digital audio output.
Page 104 Si47xx-EVB Table 26. AM Receiver Property Window Descriptions (Continued) Name Description Range Applicable Devices Seek Mode Stop at Limit or Seek mode specifies the behavior of seek when it Wrap at Limit reaches either end of the AM band. The default value makes the seek wrap around and start at the other end of the AM band.
Page 105: Am Receiver Rssi/Snr Graph Window
Si47xx-EVB 8.4. AM Receiver RSSI/SNR Graph Window The RSSI/SNR graph window allows the user to plot RSSI and SNR across the AM band. Bitmap data can be   saved to file by selecting File Save as Bitmap and tabulated data can be saved to file by selecting File Save to .csv.
Page 106: Am Receiver Register Map Window
Si47xx-EVB 8.5. AM Receiver Register Map Window The register map window allows the user to manually program the device by sending commands to the device. Refer to "AN332: Si47xx Programming Guide" to manually program the device. Figure 82. AM Receiver Register Map Window...
Page 107: Am Receiver Logging Tools Info
Si47xx-EVB 8.6. AM Receiver Logging Tools Info 8.6.1. Log Band Scan  Selecting Tools Log Band Scan allows you to specify a filename and begin a scan of the entire band. The scan feature starts with the first frequency in the band and then seeks to the first station that meets the seek criteria (Seek RSSI Threshold, Seek SNR Threshold).
Page 108: Am Receiver Configuration Helper
Si47xx-EVB 8.7. AM Receiver Configuration Helper  Selecting Window Configuration Helper opens up the Configuration Helper window. The Configuration Helper is a very useful tool to configure the thresholds and the rates associated with Soft-Mute. Figure 83. AM Configuration Helper Window In the example shown in Figure 83, the audio signal does not get attenuated because the SNR reported by the chip is greater than the programmed SNR threshold for Soft Mute.
Page 109: Using The Evb With A 9 V Battery
Si47xx-EVB 9. Using the EVB with a 9 V Battery The EVB can be used with a 9 V battery that allows the user to disconnect the board from the computer for evaluating the Si47xx. Follow the guidelines listed below to use your EVB with a 9 V battery.
Page 110: Debugging Guidelines For Si47Xx Evb
Si47xx-EVB 10. Debugging Guidelines for Si47xx EVB Table 28. Debugging Guidelines for Si47xx EVB Mode Symptom Solution Configuration EVB not recognized  If the EVB is not recognized by the PC, remove the USB connection and reconnect. Ensure the EVB is recognized by the PC by right-clicking on My Computer and selecting PropertiesHardwareDevice Manager.
Page 111 Si47xx-EVB Table 28. Debugging Guidelines for Si47xx EVB Mode Symptom Solution AM Receive Excess interference/ 1. Check the antenna board connection on J2. Poor reception 2. Make sure the ferrite bar is not loose and does not slide in the coil.
Page 112: Bill Of Materials
Si47xx-EVB 11. Bill of Materials Table 29. Si47xx-EVB Baseboard Rev 1.6 Bill of Materials Item RefDes Description Value Mfg/Vendor Mfg/Vendor_PN 2.1 mm power plug CONN_PJ-01 C1,C2,C4,C11,C13,C28, CAP,SM,0402,0.1UF,10% 0.1UF VENKEL C0402X7R160-104KNE C31,C33,C34,C35,C36, C39,C40,C42,C43,C46, C50,C52,C54,C55,C57, C61,C62,C68,C71,C73,C74 RADIAL CAP 4.7UF Kemet T350B475K016AS CAP,SM,0805 0.1UF...
Page 113 Si47xx-EVB Table 29. Si47xx-EVB Baseboard Rev 1.6 Bill of Materials (Continued) Item RefDes Description Value Mfg/Vendor Mfg/Vendor_PN R8,R9,R20,R48,R49,R50, RES,SM,0402 VENKEL CR0402-16W-000T R51,R52,R53,R54,R55, R56,R57,R58,R59,R60, R62,R63,R68,R69,R71, R72,R75,R77,R79,R81, R82,R91 RES,SM,0402 22.1 VENKEL CR0402-16W-22R1FT R5,R7,R10,R11,R29 RES,SM,0402 KOA SPEER RK73H1ELTP1002F R12,R13 RES,SM,0402 5.6K KOA SPEER...
Page 114 Si47xx-EVB Table 29. Si47xx-EVB Baseboard Rev 1.6 Bill of Materials (Continued) Item RefDes Description Value Mfg/Vendor Mfg/Vendor_PN IC,SM,CS8427- CIRRUS CS8427-CZ DS,SPDIF_TRANSLATOR, 28-TSSO 32_768 kHZ,OSCILLATOR,SM ECS_INC ECS-327SMO XTAL,12.288MHZ,18PF CITIZEN AMER- CS10-12.288MABJ-UT ICA CORP R30,R32,R35,R37,R39, Res,sm,0402 49.9 Venkel CR0402-16W-49R9FT R40,R41,R42,R92,R93, R94,R95 4P Plug 180Deg terminal block...
Page 115 Si47xx-EVB Table 30. Si472x-EVB Rev 1.4 Bill of Materials Item RefDes Description Value MFG/Vendor Mfg/Vendor_PN C4,C6 CAP,SM,0402,X7R 22PF MURATA GRM185R71E220KA61D CAP,SM,0402,X7R 22NF MURATA GRM185R71E223KA61D C7,C10 CAP,SM,0402,X7R 0.1UF MURATA GRM185R71C104KA88D C3,C5 CAP,SM,0603,X7R 0.47UF VENKEL C0603X7R160-474KNE C1,C9 CAP,SM,0603,X7R MURATA GRM185R71E102KA61D C11,C12,C13 CAP,SM,0402,X7R...
Page 116 Si47xx-EVB Table 30. Si472x-EVB Rev 1.4 Bill of Materials (Continued) Item RefDes Description Value MFG/Vendor Mfg/Vendor_PN Si471x-EVB Rev 1.4 Population Options CAP,SM,0402,X7R C1,C9 CAP,SM,0603,X7R C11,C12,C13 CAP,SM,0402,X7R C14,C15 CAP,SM,0603,X7R SMA,EDGE-MOUNT,GOLD PLATED CONN,AUDIO JACK,3.5MM,STEREO F1,F2,F3 Ferrite Bead,SM,0603 IN, SM, 0603 IN, SM, 0603...
Page 117 Si47xx-EVB Table 31. Si4731-35-EVB Rev 1.4 Bill of Materials Item RefDes Description Value MFG/Vendor MFG/Vendor_PN C1,C7 CAP,SM,0402,X7R 0.1UF MURATA GRM155R71C104KA88D CAP,SM,0402,X7R 22NF MURATA GRM155R71E223KA61D C9,C10,C11 CAP,SM,0402,X7R 100PF MURATA GRM1555C1H101JZ01D C3,C5,C12 CAP,SM,0603,X7R VENKEL C0603C0G500-103JNE C4,C6 CAP,SM,0402,X7R 22PF VENKEL C0402C0G500-220JNE C8,C13 CAP,SM,0603,X7R 0.47UF...
Page 118 Si47xx-EVB Table 31. Si4731-35-EVB Rev 1.4 Bill of Materials Item RefDes Description Value MFG/Vendor MFG/Vendor_PN U2,U6 IC,SM,ESD PROTECTION CALIFORNIA MICRO CM1213-01ST DIODE,SOT23-3 DEVICES OSC,SM,Crystal 32.768KHz,Chip 32.768KHz Epson FC-135 NP = Not Populated Si4707-EVB Rev 1.4 Population Options C1,C9,C10,C11 CAP,SM,0402,X7R C4,C6...
Page 119 Si47xx-EVB Table 32. Si474x Daughtercard (Rev 1.3) Bill of Materials Item RefDes Description Value Mfg/Vendor Mfg/Vendor_pn C11,C16 CAP,SM,0402,X7R C6,C13,C15 CAP,SM,0402,X7R 0.1 µF Venkel C0402X7R160-104JNE C1,C19 CAP,SM,0402,X7R 22 nF Venkel C0402X7R250-223JNE CAP,SM,0402,C0G 270 pF Venkel C0402C0G500-271JNE CAP,SM,0402,C0G 18 pF Venkel C0402C0G500-180JNE...
Page 120 Si47xx-EVB Table 32. Si474x Daughtercard (Rev 1.3) Bill of Materials (Continued) Item RefDes Description Value Mfg/Vendor Mfg/Vendor_pn 604  RES,SM,0402 Venkel CR0402-16W-6040FT R5,R18,R19 RES,SM,0402 4.7 k Venkel CR0402-16W-472JT 249  R4,R6,R7,R9,R10 RES,SM,0402 Venkel CR0402-16W-2490FT R12,R14,R15 RES,SM,0402 R17,R20 RES,SM,0402 22 k...
Page 121 Si47xx-EVB Table 33. Si4749 Daughtercard (Rev 1.1) Bill of Materials Item RefDes Description Value Mfg/Vendor Mfg/Vendor_pn C4,C6,C7 CAP,SM,0402,X7R 0.1 µF Venkel C0402X7R160-104JNE CAP,SM,0402,X7R 22 nF Venkel C0402X7R250-223JNE C4,C6 CAP,SM,0402,C0G 24 pF Venkel C0402C0G500-240JNE CAP,SM,0402,C0G 100 pF Venkel C0402C0G500-101JNE CAP,SM,0402,X7R C3,C5 CAP,SM,0402,COG 0.01 µF...
Page 122 Si47xx-EVB Table 34. Si4730 Ferrite Medium Antenna Rev 1.2 Bill of Materials Item RefDes Description Value Mfg/Vendor Mfg/Vendor_PN Socket Header, TH, Friction notch SAMTEC SSW-112-02-G-P-RA Medium Ferrite Core Silabs SL4X30MW110T PCB, Ferrite Antenna Board Zip Tie 6in Hellermann Tyton T30R9C2 NP = Not Populated Table 35.
Page 123 Si47xx-EVB Table 37. Si473x SW/WB Antenna Bill of Materials Item RefDes Description Value Mfg/Vendor CAP,SM,0402,C0G 18 pF VENKEL CAP,SM,0402,C0G 33 pF VENKEL Socket Header, TH, SAMTEC Friction notch BNC,EDGE-MOUNT, MOUSER GOLD PLATED Large Ferrite Core Silabs IND,SM,0603 470 nH MURATA IND,SM,1008 4.7 µH...
Page 124: Schematics
Si47xx-EVB 12. Schematics 12.1. Si47xx-EVB Baseboard Rev 1.6 Rev. 0.8...
Page 125 Si47xx-EVB Rev. 0.8...
Page 126 Si47xx-EVB Rev. 0.8...
Page 127 Si47xx-EVB Rev. 0.8...
Page 128 Si47xx-EVB Note: For EN55020 compliance, please add the following components to L-OUT and R-OUT @ J6: 1 µF from C5 x C7 to GND (one for each output), 22.6 in series with C5 x C7 (one for each output). Rev. 0.8...
Page 129 Si47xx-EVB Rev. 0.8...
Page 130 Si47xx-EVB Rev. 0.8...
Page 131: Si471X/2X-Evb Daughtercard Rev 1.4
Si47xx-EVB 12.2. Si471x/2x-EVB Daughtercard Rev 1.4 Rev. 0.8...
Page 132 Si47xx-EVB Figure 92. Si471x/2x-EVB Daughtercard (Rev 1.4) Headphone Schematic (applies only to Si4704/05/06/2x/8x) Si471x/2x-EVB Daughtercard (Rev 1.4) ships configured for external RCLK, supplied by the Si47xx-EVB Baseboard. To configure for crystal oscillator operation: 1. Remove R5. 2. Remove short at J24.
Page 133: Si473X-Evb Daughtercard Rev. 1.4
Si47xx-EVB 12.3. Si473x-EVB Daughtercard Rev. 1.4 Rev. 0.8...
Page 134 Si47xx-EVB Figure 94. Si473x-EVB Daughtercard Rev 1.4 (2 of 2) Si473x-EVB Daughtercard (Rev 1.4) ships configured for external RCLK, supplied by the Si47xx-EVB Baseboard. To configure for crystal oscillator operation: 1. Remove R9. 2. Remove R10. 3. Short J27. 4. Short J28.
Page 135: Si474X-Evb Daughtercard Rev 1.3
Si47xx-EVB 12.4. Si474x–EVB Daughtercard Rev 1.3 Rev. 0.8...
Page 136 Si47xx-EVB Rev. 0.8...
Page 137: Si4749-Evb Daughtercard Rev 1.1
Si47xx-EVB 12.5. Si4749-EVB Daughtercard Rev 1.1 Rev. 0.8...
Page 138 Si47xx-EVB Figure 98. Si4749-EVB Daughtercard Rev 1.1 (2 of 2) Note: C4, C6, R9, and R11 manually added to Si4749EVB Rev 1.0 to create Si4749EVB Rev 1.1. Rev. 0.8...
Page 139: Antenna Card Schematics
Si47xx-EVB 12.6. Antenna Card Schematics 12.6.1. Si473x Ferrite Antenna Card Rev 1.2 Figure 99. Ferrite Antenna Card Rev 1.2 12.6.2. Si473x Air Loop Antenna Card Rev 1.2 Figure 100. Airloop Antenna Card Rev 1.2 Rev. 0.8...
Page 140 Si47xx-EVB 12.6.3. Si473x SW/WB Antenna Card Rev 1.3 Note: If an SW band is selected using the SW/WB Antenna Card, set the varactor to 1 for best performance. LW not supported with SW/WB Antenna Card. Figure 101. Si473x SW/WB Antenna Card Rev 1.3 12.6.4.
Page 141: Layout
Si47xx-EVB 13. Layout 13.1. Si47xx-EVB Baseboard Rev 1.6 Figure 103. Si47xx-EVB Baseboard Rev 1.6—Primary Assembly Silkscreen Figure 104. Si47xx-EVB Baseboard Rev 1.6—Secondary Assembly Silkscreen Rev. 0.8...
Page 142 Si47xx-EVB Figure 105. Si47xx-EVB Baseboard Rev 1.6—Primary Side Figure 106. Si47xx-EVB Baseboard Rev 1.6—Ground Plane Rev. 0.8...
Page 143 Si47xx-EVB Figure 107. Si47xx-EVB Baseboard Rev 1.6—Power Plane Figure 108. Si47xx-EVB Baseboard Rev 1.6—Secondary Side Rev. 0.8...
Page 144: Si471X/2X-Evb Daughtercard Rev 1.4
Si47xx-EVB 13.2. Si471x/2x-EVB Daughtercard Rev 1.4 Figure 109. Si471x/2x-EVB Daughtercard (Rev 1.4)—Primary Assembly Silkscreen Figure 110. Si471x/2xEVB Daughtercard (Rev 1.4)—Secondary Assembly Silkscreen Rev. 0.8...
Page 145 Si47xx-EVB Figure 111. Si471x/2x-EVB Daughtercard (Rev 1.4)—Primary Side Figure 112. Si471x/2x-EVB Daughtercard (Rev 1.4)—Ground Plane Rev. 0.8...
Page 146 Si47xx-EVB Figure 113. Si471x/2x-EVB Daughtercard (Rev 1.4)—Power Plane Figure 114. Si471x/2x-EVB Daughtercard (Rev 1.4)—Secondary Side Rev. 0.8...
Page 147: Si473X-Evb Daughtercard Rev 1.4
Si47xx-EVB 13.3. Si473x-EVB Daughtercard Rev 1.4 Figure 115. Si473x-EVB Daughtercard Rev 1.4 - Primary Assembly Silkscreen Figure 116. Si473x-EVB Daughtercard Rev 1.4 - Secondary Assembly Silkscreen Rev. 0.8...
Page 148 Si47xx-EVB Figure 117. Si473x-EVB Daughtercard Rev 1.4—Primary Side Figure 118. Si473x-EVB Daughtercard Rev 1.4—Ground Plane Rev. 0.8...
Page 149 Si47xx-EVB Figure 119. Si473x-EVB Daughtercard Rev 1.4—Power Plane Figure 120. Si473x-EVB Daughtercard Rev 1.4—Secondary Side Rev. 0.8...
Page 150: Si474X-Evb Daughtercard Rev 1.3
Si47xx-EVB 13.4. Si474x-EVB Daughtercard Rev 1.3 Figure 121. Si474x-EVB Daughtercard Rev 1.3—Primary Assembly Silkscreen Rev. 0.8...
Page 151 Si47xx-EVB Figure 122. Si474x-EVB Daughtercard Rev 1.3—Primary Side Figure 123. Si474x-EVB Daughtercard Rev 1.3—Ground Plane Rev. 0.8...
Page 152: Si4749-Evb Daughtercard Rev 1.1
Si47xx-EVB 13.5. Si4749-EVB Daughtercard Rev 1.1 Note: For Figures 124 through 129: C4, C6, R9, and R11 manually added to Si4749EVB Rev 1.0 to create Si4749 EVB Rev 1.1. Figure 124. Si4749-EVB Daughtercard Rev 1.1—Primary Side Silkscreen Rev. 0.8...
Page 153 Si47xx-EVB Figure 125. Si4749-EVB Daughtercard Rev 1.1—Secondary Side Silkscreen Figure 126. Si4749-EVB Daughtercard Rev 1.1—Primary Side Figure 127. Si4749-EVB Daughtercard Rev 1.1—Ground Plane Rev. 0.8...
Page 154 Si47xx-EVB Figure 128. Si4749-EVB Daughtercard Rev 1.1—Power Plane Figure 129. Si4749-EVB Daughtercard Rev 1.1—Secondary Side Rev. 0.8...
Page 155: Antenna Cards
Si47xx-EVB 13.6. Antenna Cards 13.6.1. Si473x Ferrite Antenna Card Rev 1.2 Figure 130. Si473x Ferrite Antenna Card Rev 1.2—Primary Side Silkscreen Figure 131. Si473x Ferrite Antenna Card Rev 1.2—Secondary Side Silkscreen Rev. 0.8...
Page 156 Si47xx-EVB Figure 132. Si473x Ferrite Antenna Card Rev 1.2—Primary Side Figure 133. Si473x Ferrite Antenna Card Rev 1.2—Secondary Side Rev. 0.8...
Page 157 Si47xx-EVB 13.6.2. Si473x Air Loop Antenna Card Rev 1.2 Figure 134. Si473x Air Loop Antenna Card Rev 1.2—Primary Side Silkscreen Figure 135. Air Loop Antenna Card Rev 1.2—Secondary Side Silkscreen Rev. 0.8...
Page 158 Si47xx-EVB Figure 136. Si473x Air Loop Antenna Card Rev 1.2—Primary Side Figure 137. Si473x Air Loop Antenna Card Rev 1.2—Secondary Side Rev. 0.8...
Page 159 Si47xx-EVB 13.6.3. Si473x SW/WB Antenna Card Rev 1.3 Figure 138. Si473x SW/WB Antenna Card Rev 1.3—Primary Side Silkscreen Figure 139. Si473x SW/WB Antenna Card Rev 1.3—Secondary Side Silkscreen Rev. 0.8...
Page 160 Si47xx-EVB Figure 140. Si473x SW/WB Antenna Card Rev 1.3—Primary Side Figure 141. Si473x SW/WB Antenna Card Rev 1.3—Secondary Side Rev. 0.8...
Page 161 Si47xx-EVB 13.6.4. Si474x Antenna Dummy Card Rev 1.0 Figure 142. Si474x Antenna Dummy Card Rev 1.1—Primary Side Silkscreen Figure 143. Si474x Antenna Dummy Card Rev 1.0—Secondary Side Silkscreen Rev. 0.8...
Page 162 Si47xx-EVB Figure 144. Si474x Antenna Dummy Card Rev 1.0—Primary Side Figure 145. Si474x Antenna Dummy Card Rev 1.0—Secondary Side Rev. 0.8...
Page 163: Documentation Change List
Si47xx-EVB OCUMENTATION HANGE Revision 0.1 to Revision 0.2  Updated Product Family in Table 1 on page 1.  Updated Si4740/41 Property List in Figure on page 67 and Table 15 on page 67.  Clarified varactor recommendation with SW operation using SW/WB Antenna Card.
Page 164: Contact Information
Silicon Laboratories products are not designed, intended, or authorized for use in applications intended to support or sustain life, or for any other application in which the failure of the Silicon Laboratories product could create a situation where per- sonal injury or death may occur.

This manual is also suitable for:

Si47 series Si4702 Si4703 Si4704 Si4705 Si4706 ... Show all

Silicon Laboratories Si47xx-EVB User Manual

1 Introduction

2 Description

3 Recommended Hardware Setup

4 Getting Started

5 FM Transmitter GUI

6 FM Receiver GUI

7 Weather Band GUI

8 AM Receiver GUI

9 Using the EVB with a 9 V Battery

10 Debugging Guidelines for Si47Xx EVB

11 Bill of Materials

12 Schematics

13 Layout

Documentation Change List

Contact Information

Quick Links

1. Introduction

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silicon Laboratories Si47xx-EVB

Summary of Contents for Silicon Laboratories Si47xx-EVB

This manual is also suitable for:

Table of Contents
