Scope of Manual

This instruction manual includes specifications,
installation, operating, and maintenance information
for the FIELDVUE DVC6200 digital valve controller,
device revision 2, firmware revision 9 and 10,
instrument level AC, HC, AD, PD, and ODV.
Note
Firmware 9 or 10 is required for the
DVC6200 digital valve controller. A
printed wiring board with earlier
versions of firmware must be updated
before using with the DVC6200.
This instruction manual describes using the 475 Field
Communicator with device description revisions 1 and
2 to setup and calibrate the instrument. You can also
use Fisher ValveLink software version 10.2 or higher
to setup, calibrate, and diagnose the valve and
instrument. For information on using ValveLink
software with the instrument refer to ValveLink
software help or documentation.
Do not install, operate, or maintain a DVC6200 digital
valve controller without being fully trained and qualified
in valve, actuator, and accessory installation,
operation, and maintenance. To avoid personal injury
or property damage, it is important to carefully read,
understand, and follow all of the contents of this
manual, including all safety cautions and warnings. If
you have any questions about these instructions,
contact your Emerson Process Management sales
office before proceeding.
2
Table 1-1. Instrument Level Capabilities
AC HC
X X
X X
X
X

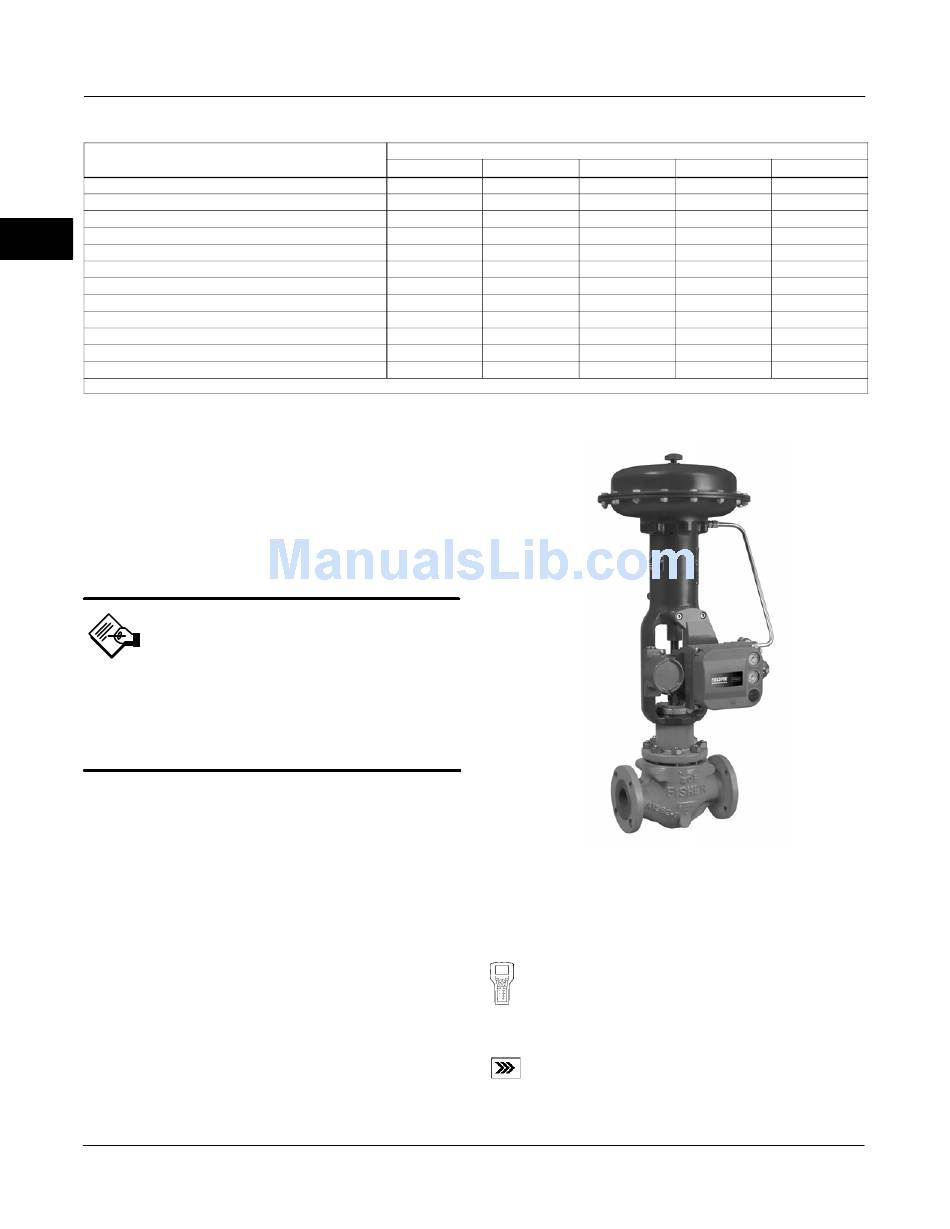

Figure 1-1. FIELDVUE DVC6200 Digital Valve Controller
Mounted on a Fisher Sliding−Stem Valve Actuator

Conventions Used in this Manual

Procedures that require the use of the 475 Field
Communicator have the Field Communicator symbol
in the heading.
Procedures that are accessible with the Hot Key
on the Field Communicator will also have the Hot Key
symbol in the heading.
DIAGNOSTIC LEVEL
AD PD
X X
X X
X X
X X
X X
X X
X X
X X
X X
X
W9643
ODV
X
X
X
X
X
X
X
X
X
X
X
X
