DVC6200 Digital Valve Controller
I/P CONVERTER
(KEY 41)
BOOTS
(KEY 210)
W9328

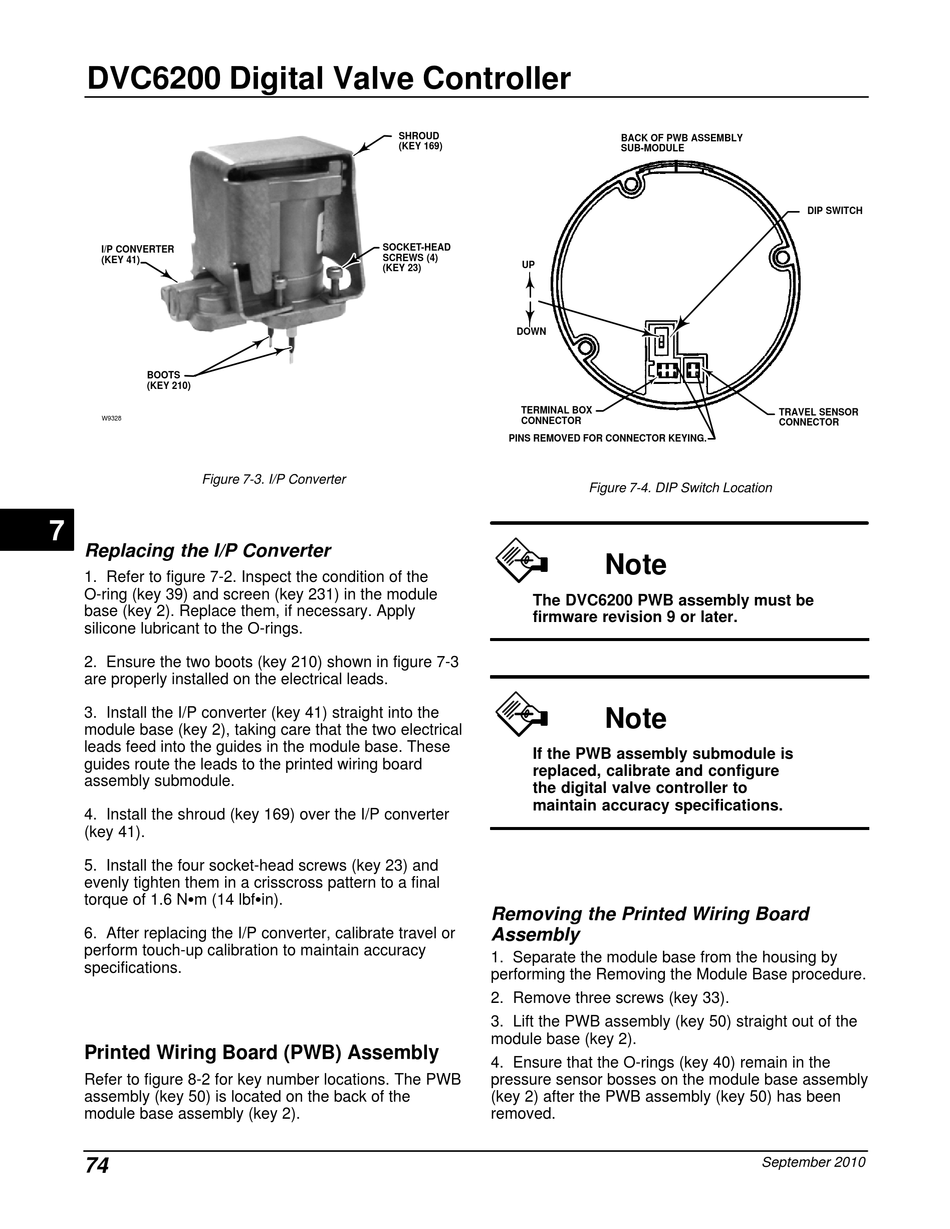

Figure 7-3. I/P Converter
7

Replacing the I/P Converter

1. Refer to figure 7-2. Inspect the condition of the
O-ring (key 39) and screen (key 231) in the module
base (key 2). Replace them, if necessary. Apply
silicone lubricant to the O-rings.
2. Ensure the two boots (key 210) shown in figure 7-3
are properly installed on the electrical leads.
3. Install the I/P converter (key 41) straight into the
module base (key 2), taking care that the two electrical
leads feed into the guides in the module base. These
guides route the leads to the printed wiring board
assembly submodule.
4. Install the shroud (key 169) over the I/P converter
(key 41).
5. Install the four socket-head screws (key 23) and
evenly tighten them in a crisscross pattern to a final
torque of 1.6 NSm (14 lbfSin).
6. After replacing the I/P converter, calibrate travel or
perform touch-up calibration to maintain accuracy
specifications.

Printed Wiring Board (PWB) Assembly

Refer to figure 8-2 for key number locations. The PWB
assembly (key 50) is located on the back of the
module base assembly (key 2).
74
SHROUD
(KEY 169)
SOCKET-HEAD
SCREWS (4)
UP
(KEY 23)
DOWN
TERMINAL BOX
CONNECTOR
PINS REMOVED FOR CONNECTOR KEYING.
The DVC6200 PWB assembly must be
firmware revision 9 or later.
If the PWB assembly submodule is
replaced, calibrate and configure
the digital valve controller to
maintain accuracy specifications.
Removing the Printed Wiring Board
Assembly
1. Separate the module base from the housing by
performing the Removing the Module Base procedure.
2. Remove three screws (key 33).
3. Lift the PWB assembly (key 50) straight out of the
module base (key 2).
4. Ensure that the O-rings (key 40) remain in the
pressure sensor bosses on the module base assembly
(key 2) after the PWB assembly (key 50) has been
removed.
BACK OF PWB ASSEMBLY
SUB-MODULE
Figure 7-4. DIP Switch Location
Note
Note
September 2010
DIP SWITCH
TRAVEL SENSOR
CONNECTOR
