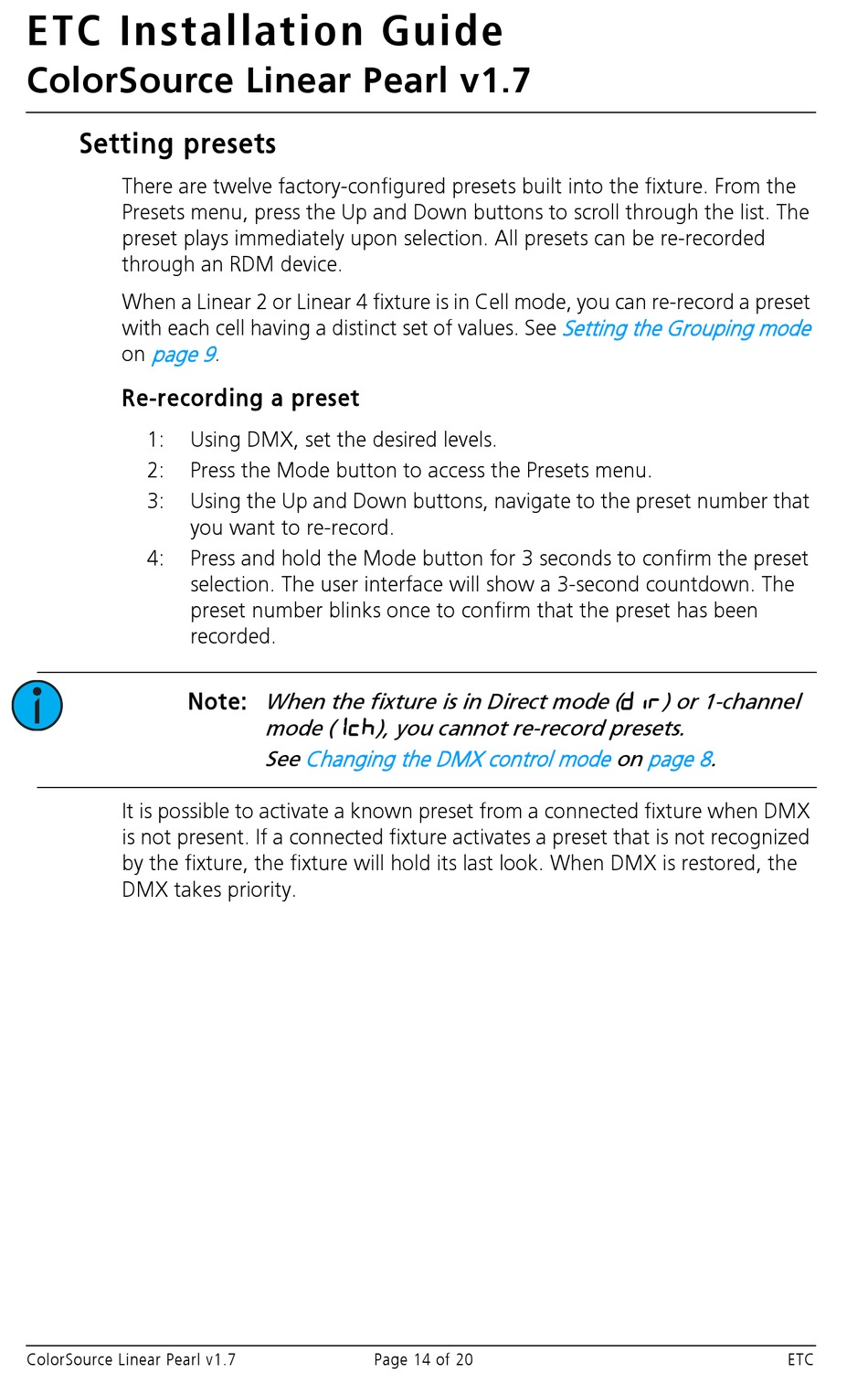

Setting presets

There are twelve factory-configured presets built into the fixture. From the
Presets menu, press the Up and Down buttons to scroll through the list. The
preset plays immediately upon selection. All presets can be re-recorded
through an RDM device.
When a Linear 2 or Linear 4 fixture is in Cell mode, you can re-record a preset
with each cell having a distinct set of values. See
page 9
on

Re-recording a preset

1:
2:
3:
4:
Note: When the fixture is in Direct mode (
It is possible to activate a known preset from a connected fixture when DMX
is not present. If a connected fixture activates a preset that is not recognized
by the fixture, the fixture will hold its last look. When DMX is restored, the
DMX takes priority.
ColorSource Linear Pearl v1.7
.
Using DMX, set the desired levels.
Press the Mode button to access the Presets menu.
Using the Up and Down buttons, navigate to the preset number that
you want to re-record.
Press and hold the Mode button for 3 seconds to confirm the preset
selection. The user interface will show a 3-second countdown. The
preset number blinks once to confirm that the preset has been
recorded.

mode (
See
Changing the DMX control mode
), you cannot re-record presets.
Page 14 of 20
Setting the Grouping mode

) or 1-channel
on
page 8.
