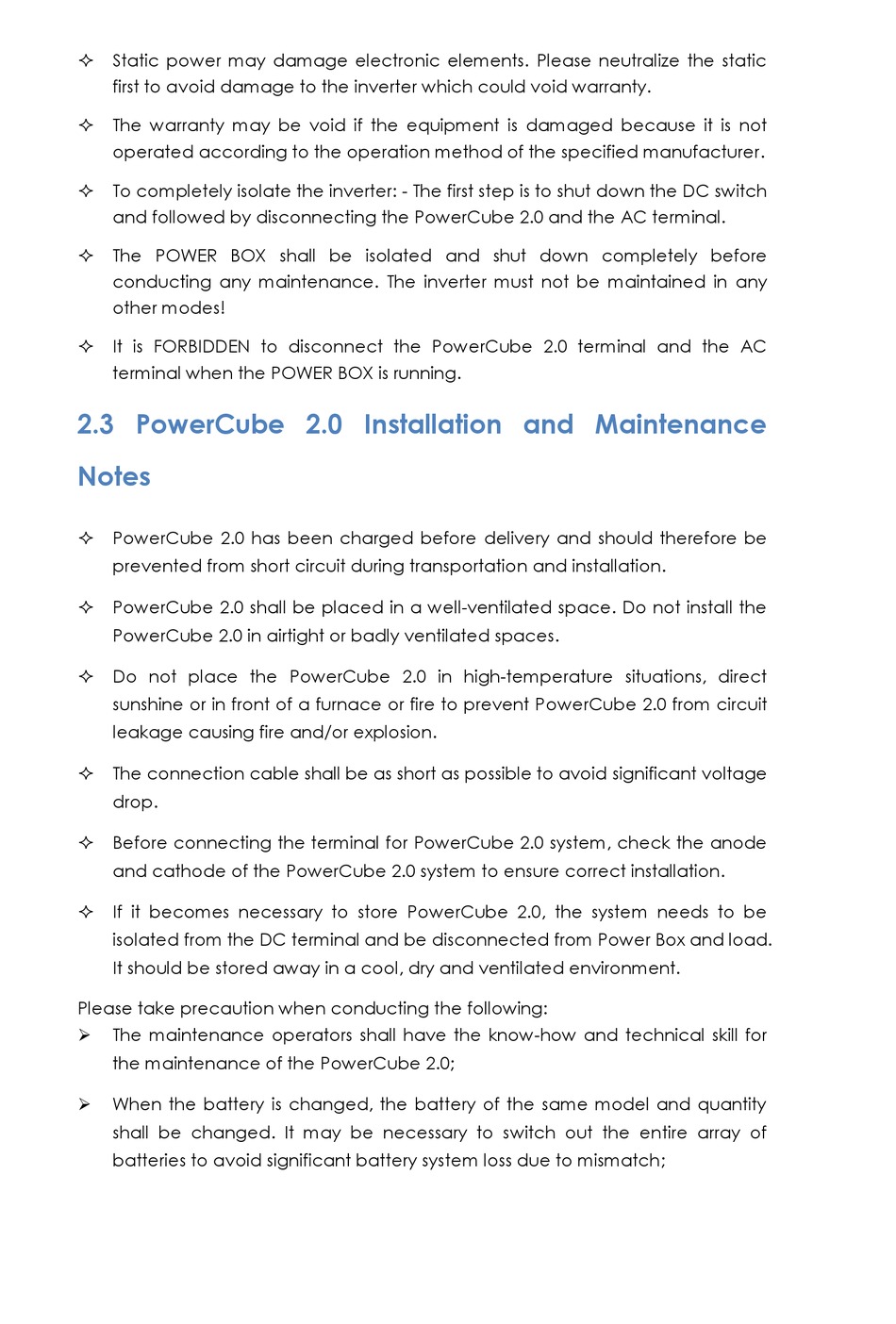

Static power may damage electronic elements. Please neutralize the static

first to avoid damage to the inverter which could void warranty.
The warranty may be void if the equipment is damaged because it is not

operated according to the operation method of the specified manufacturer.
To completely isolate the inverter: - The first step is to shut down the DC switch

and followed by disconnecting the PowerCube 2.0 and the AC terminal.
The POWER BOX shall be isolated and shut down completely before

conducting any maintenance. The inverter must not be maintained in any
other modes!
It is FORBIDDEN to disconnect the PowerCube 2.0 terminal and the AC

terminal when the POWER BOX is running.
2.3 PowerCube 2.0 Installation and Maintenance
Notes
PowerCube 2.0 has been charged before delivery and should therefore be

prevented from short circuit during transportation and installation.
PowerCube 2.0 shall be placed in a well-ventilated space. Do not install the

PowerCube 2.0 in airtight or badly ventilated spaces.
Do not place the PowerCube 2.0 in high-temperature situations, direct

sunshine or in front of a furnace or fire to prevent PowerCube 2.0 from circuit
leakage causing fire and/or explosion.
The connection cable shall be as short as possible to avoid significant voltage

drop.
Before connecting the terminal for PowerCube 2.0 system, check the anode

and cathode of the PowerCube 2.0 system to ensure correct installation.
If it becomes necessary to store PowerCube 2.0, the system needs to be

isolated from the DC terminal and be disconnected from Power Box and load.
It should be stored away in a cool, dry and ventilated environment.
Please take precaution when conducting the following:
The maintenance operators shall have the know-how and technical skill for

the maintenance of the PowerCube 2.0;
When the battery is changed, the battery of the same model and quantity

shall be changed. It may be necessary to switch out the entire array of
batteries to avoid significant battery system loss due to mismatch;
