3.5 Installation Position

The POWER BOX should be vertically mounted (to ensure proper heat dissipation),
please choose a position without direct sunlight / snow accumulation to install the
POWER BOX.

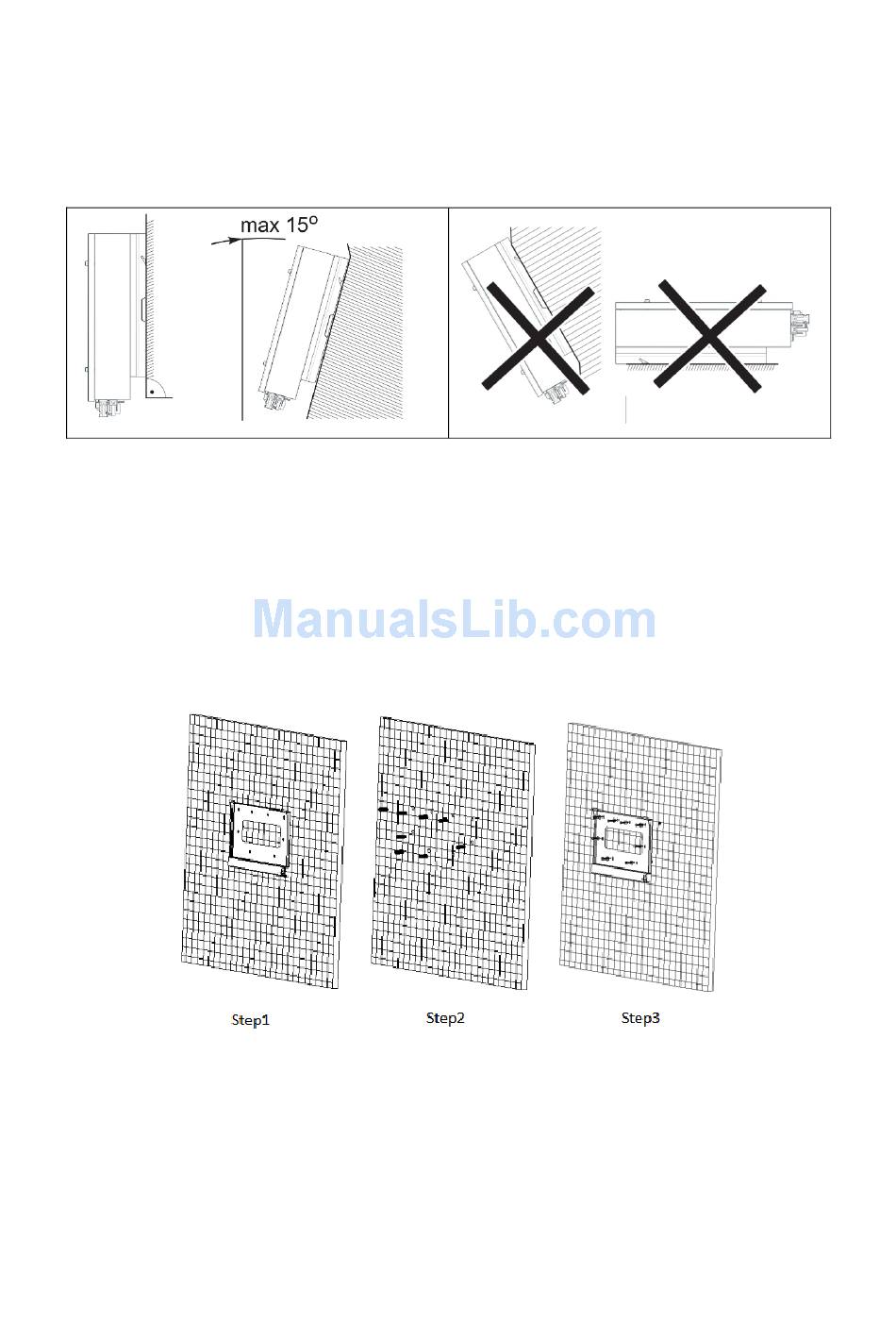

Fig. 4 Installation Position of POWER BOX

3.6 Mounting

Step 1: Put the mounting bracket on the wall and mark the 8 drill holes by using a
marker pen. Drill 8 holes (drill bit 6mm) on the wall.
Step 2: Insert the wall plug vertically into the hole, note the insertion depth. (Not
too shallow or too deep)
Step 3: Fix the mounting bracket on the wall by using screws & flat washers.
Step 4: Put the POWER BOX on the mounting bracket.
Step 5: Ground the POWER BOX by using the grounding hole on the heat sink.
Step 6: OPTIONAL: you can lock the POWER BOX
