Trinabess Power Box Installation Manual page 32

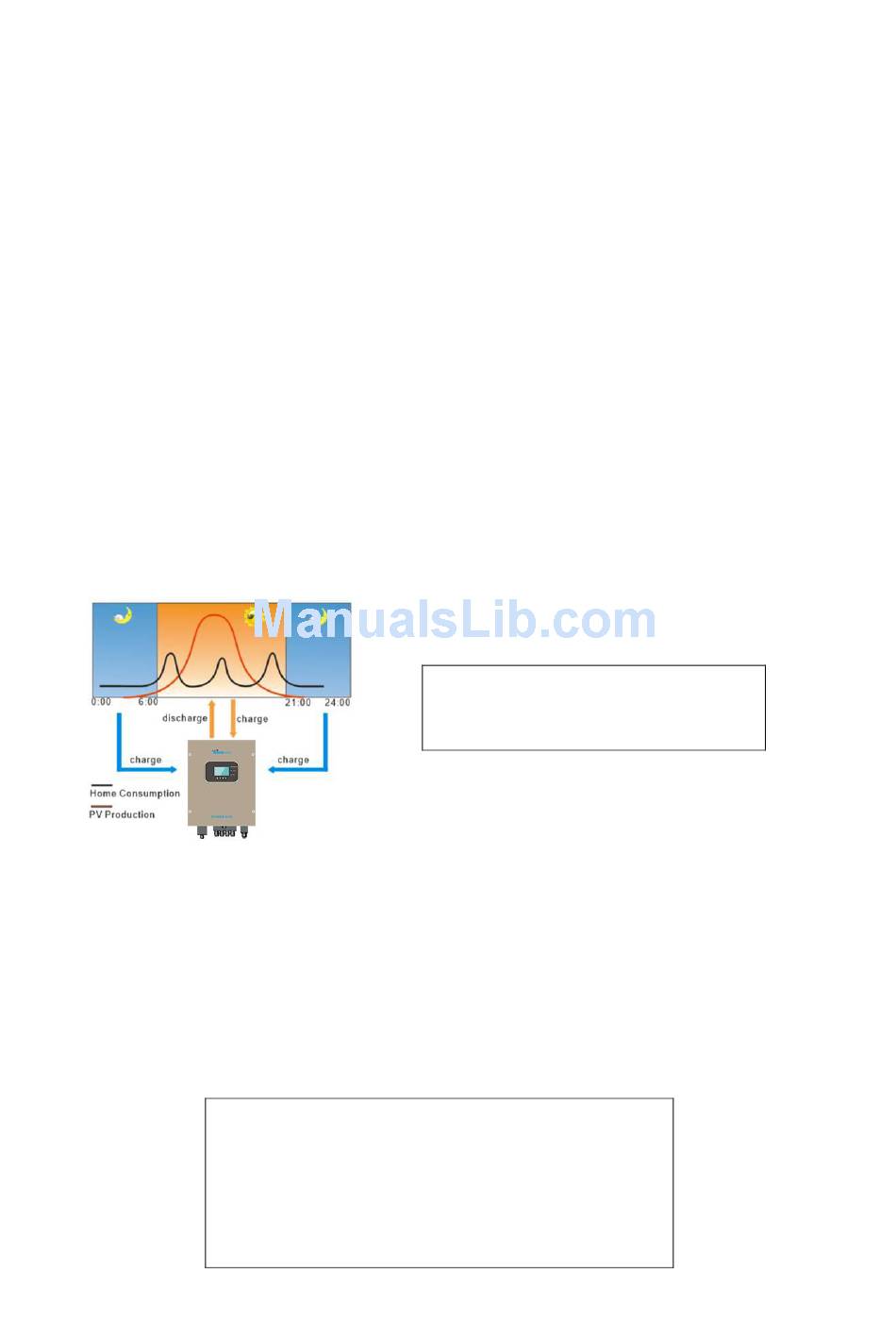

interface of Time-of-use Mode is shown as below. This mode is for customers
who have TOU (Time-of-use) pricing electricity (cheaper rate in off peak time
& more expensive rate in peak time) and owning a PV on-grid system.
For example:
a) From 9:00PM to 6:00AM, when the electricity is cheap, the POWER
BOX will import power from grid & charge the PowerCube 2.0 to target
SOC.
b) From 6:00AM to 8:00AM, when the electricity is expensive and the
PV generation capacity is quite low, the POWER BOX will discharge the
PowerCube 2.0 to supply the morning peak consumption;
c) From 8:00AM to 7:00PM, PV generation > LOAD consumption,
the surplus PV power will be stored in the PowerCube 2.0;
a) From 7:00PM to 9:00PM, when the electricity is expensive and the POWER
BOX will discharge the PowerCube 2.0 to supply the night peak
consumption.
b)
3) Set Timing Mode
Select "3.Set Timing Mode", and then press "OK" to enter Set Timing mode
interface. End user can set an off-peak time period (evening charging time
period) & a peak time period (daylight discharging time period) &
corresponding powers. The interface of Set Timing Mode is shown as below.
This mode is for customers who have TOU (Time-of-use) pricing electricity
(cheaper rate in off peak time & more expensive rate in peak time).
Charge Start
Charge End
Charge Power
DisCharge Start
DisCharge End
DisCharge Power
Charge Start:
Charge End:
Set Aimed SOC
22 h 00 m
05 h 00 m
2000 W
14 h 00m
16 h 00m
25000 W
21 h 00 m
06 h 00 m
080 %
