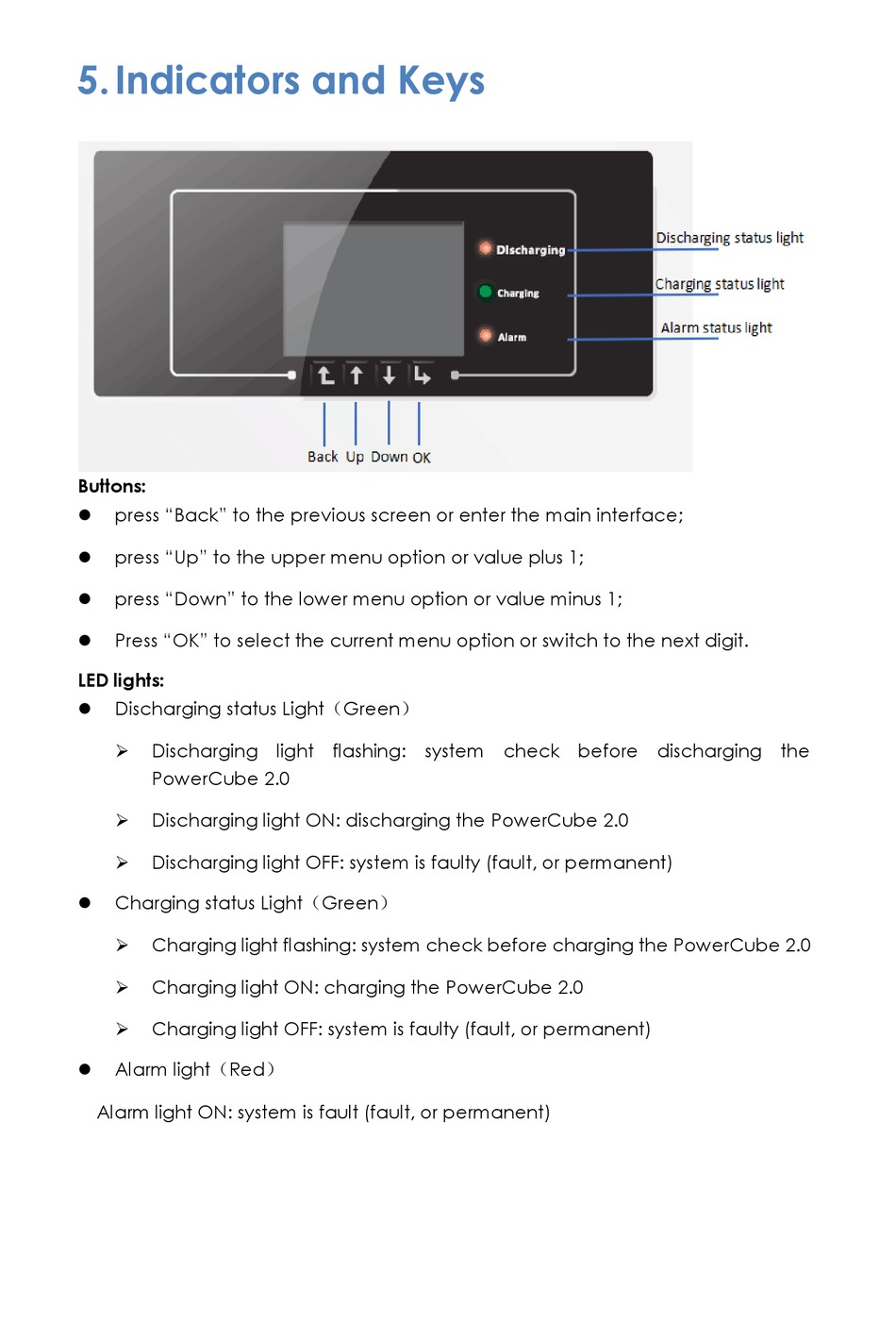

5. Indicators and Keys

Buttons:
press "Back" to the previous screen or enter the main interface;

press "Up" to the upper menu option or value plus 1;

press "Down" to the lower menu option or value minus 1;

Press "OK" to select the current menu option or switch to the next digit.

LED lights:
Discharging status Light（Green）

Discharging light flashing: system check before discharging the

PowerCube 2.0
Discharging light ON: discharging the PowerCube 2.0

Discharging light OFF: system is faulty (fault, or permanent)

Charging status Light（Green）

Charging light flashing: system check before charging the PowerCube 2.0

Charging light ON: charging the PowerCube 2.0

Charging light OFF: system is faulty (fault, or permanent)

Alarm light（Red）

Alarm light ON: system is fault (fault, or permanent)
