Current Transformer× 2
communication line× 1

3.3 Installation Environment

Please ensure a clean, tidy and dry environment during installation.

Ambient temperature scope:-25℃~60℃.

Relative humidity: 0~100 %(non-condensed).

The POWER BOX shall be installed in the place with an independent air

inlet and outlet channels.
There is neither inflammable nor explosive around.

The POWER BOX shall be connected to the power grid with an

over-voltage of CAT III and CAT II.
The maximum working condition altitude is 2000m.

Please consult our engineers about detailed requirements for installation

when in doubt.

3.4 Installation Tools

The following tools shall be prepared before installation:
No.
1
User Manual× 1
AC contactor× 1

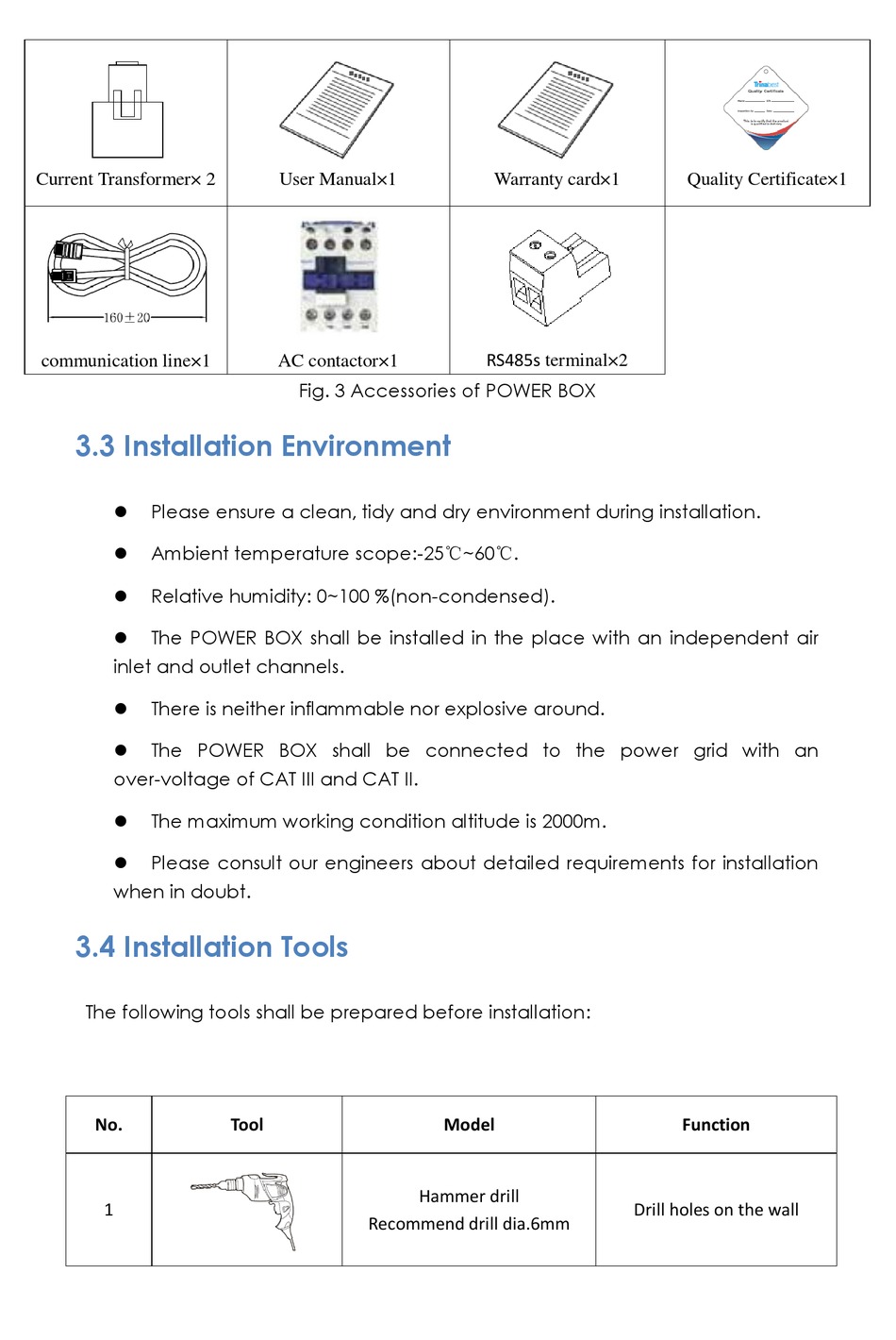

Fig. 3 Accessories of POWER BOX
Tool
Recommend drill dia.6mm
Warranty card× 1
RS485s terminal× 2
Model
Hammer drill
Quality Certificate× 1
Function
Drill holes on the wall
