PowerCube 2.0 Connection

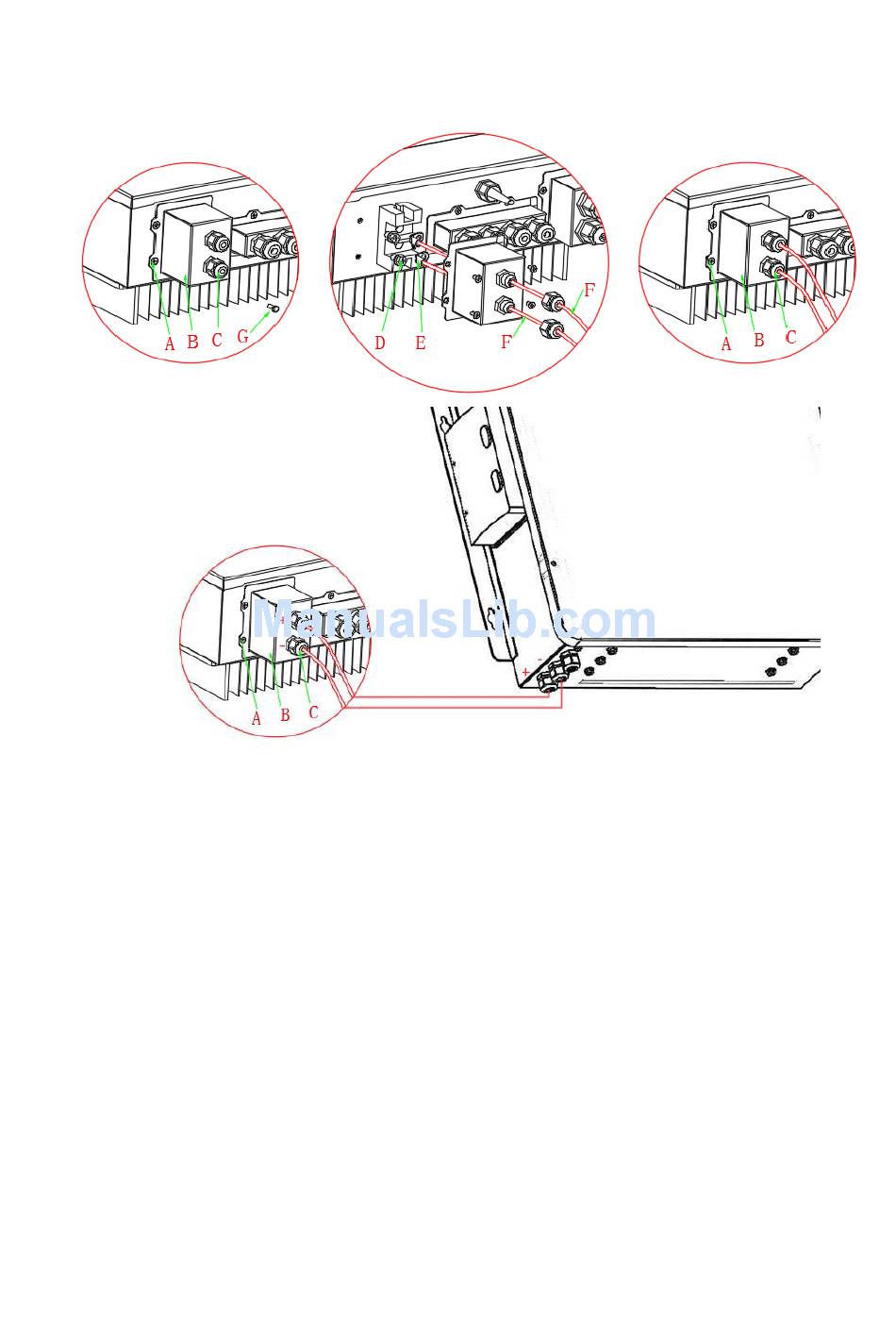

Fig. 6 PowerCube 2.0 connection (Test PowerCube 2.0 wires polarity before
connection)
Step 1: Loosen 4 screws (A) using a screwdriver (fig. 6);
Step 2: Remove the waterproof cover (B), loosen the cable gland (C), and then
remove the stopper (G);
Step 3: Route the PowerCube 2.0 wires (F) through the cable gland, then connect
PowerCube 2.0 wires using crimp ring terminal (E);
Step 4: Fasten the waterproof cover using 4 screws.
