4
SETTINGS

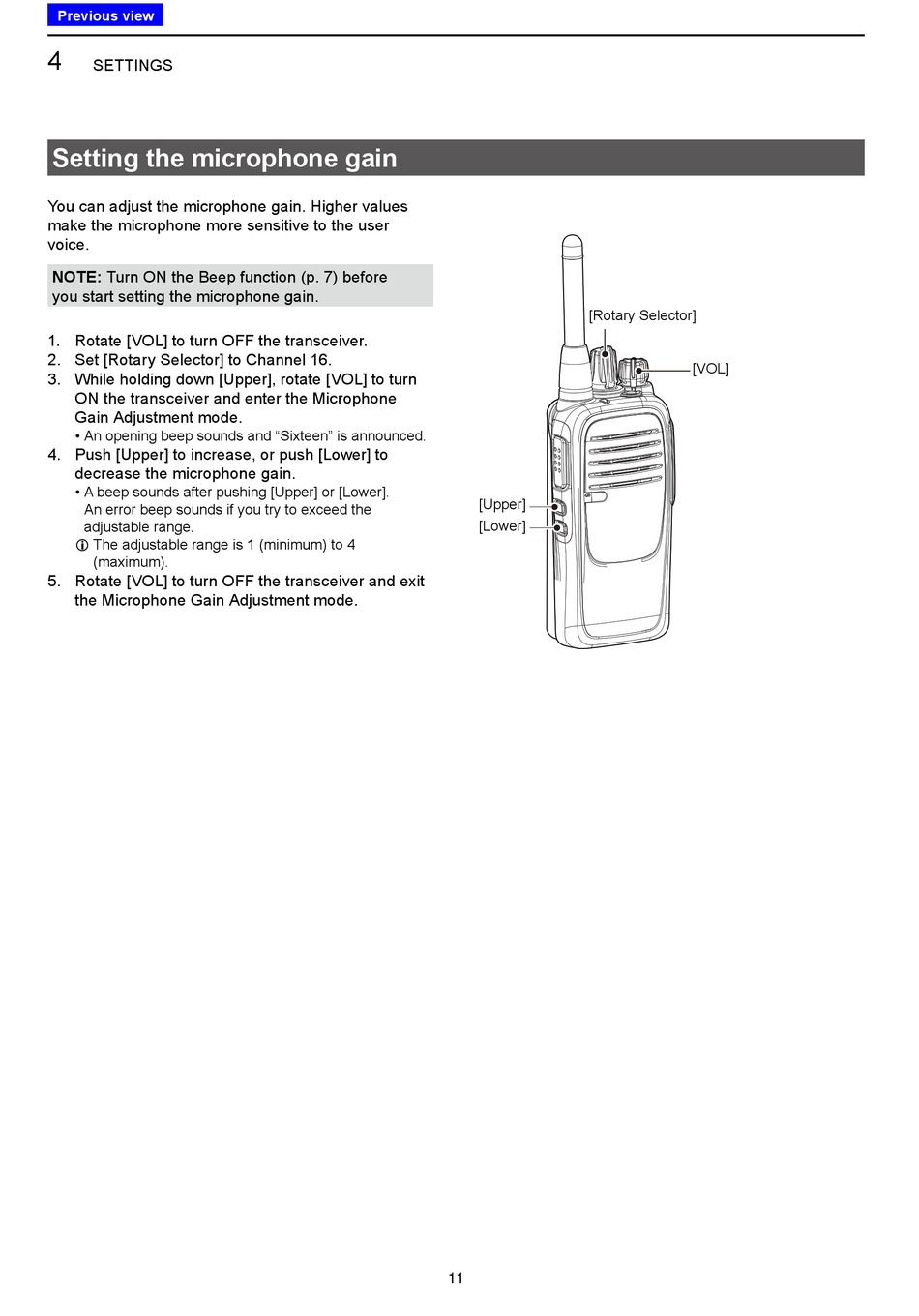

Setting the micoophone gain
You can adjust the microphone gain. Higher values
make the microphone more sensitive to the user
voice.
NOTE: Turn ON the Beep function (p. 7) before
you start setting the microphone gain.
1. Rotate [VOL] to turn OFF the transceiver.
2. Set [Rotary Selector] to Channel 16.
3. While holding down [Upper], rotate [VOL] to turn
ON the transceiver and enter the Microphone
Gain Adjustment mode.
• An opening beep sounds and "Sixteen" is announced.
4. Push [Upper] to increase, or push [Lower] to
decrease the microphone gain.
• A beep sounds after pushing [Upper] or [Lower].
An error beep sounds if you try to exceed the
adjustable range.
L The adjustable range is 1 (minimum) to 4
(maximum).
5. Rotate [VOL] to turn OFF the transceiver and exit
the Microphone Gain Adjustment mode.
[Rotary Selector]
[Upper]
[Lower]
11
[VOL]
