BASIC OPERATION

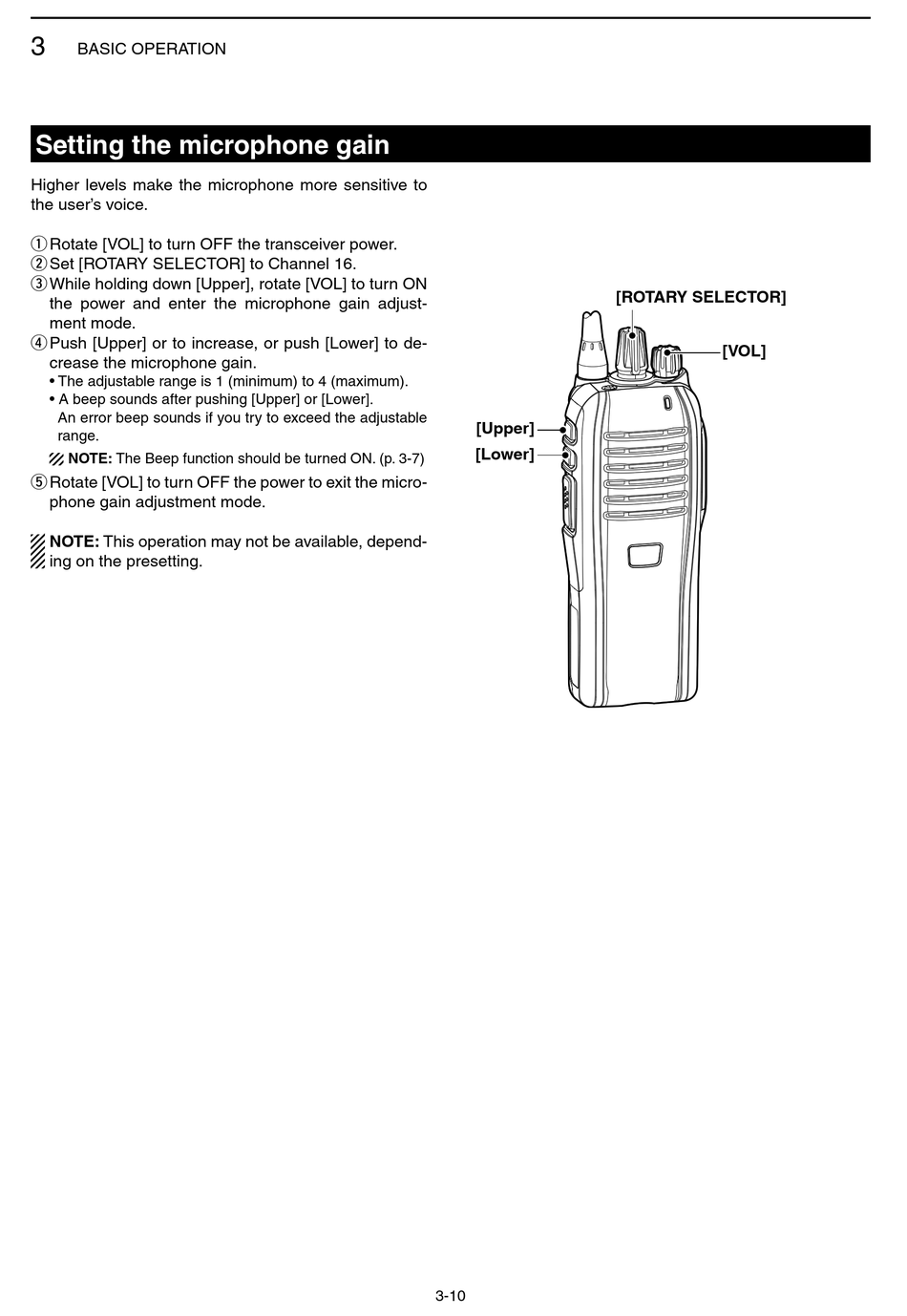

Setting the microphone gain

Higher levels make the microphone more sensitive to
the user's voice.
Rotate [VOL] to turn OFF the transceiver power.
q
Set [ROTARY SELECTOR] to Channel 16.
w
While holding down [Upper], rotate [VOL] to turn ON
e
the power and enter the microphone gain adjust-
ment mode.
Push [Upper] or to increase, or push [Lower] to de-
r
crease the microphone gain.
• The adjustable range is 1 (minimum) to 4 (maximum).
• A beep sounds after pushing [Upper] or [Lower].
An error beep sounds if you try to exceed the adjustable
range.
NOTE: The Beep function should be turned ON. (p. 3-7)
Rotate [VOL] to turn OFF the power to exit the micro-
t
phone gain adjustment mode.
NOTE: This operation may not be available, depend-
ing on the presetting.
[Upper]
[Lower]
3-10
[ROTARY SELECTOR]
[VOL]
