2. Identification
2.1.

Name plate

8
Each device component (actuator, motor) is equipped with a name plate.

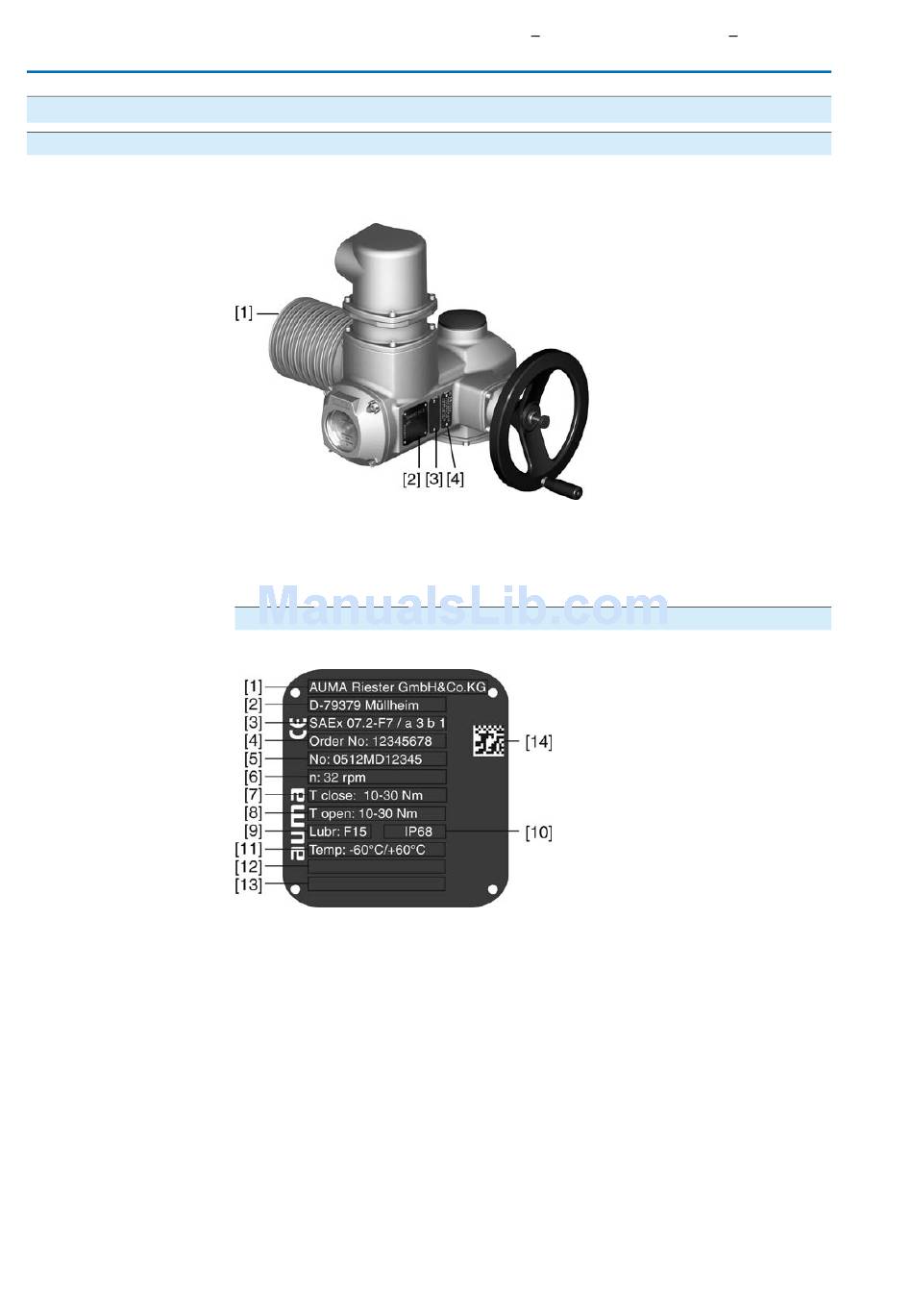

Figure 1: Arrangement of name plates
[1] Motor name plate
[2] Actuator name plate
[3] Additional plate, e.g. KKS plate (Power Plant Classification System)
[4] Explosion protection approval plate
Description of actuator name plate
Figure 2: Actuator name plate (example)
[1] Name of manufacturer
[2] Address of manufacturer
[3] Type designation
[4] Order number
[5] Actuator serial number
[6] Speed
[7] Torque range in direction CLOSE
[8] Torque range in direction OPEN
[9] Type of lubricant
[10] Enclosure protection
[11] Permissible ambient temperature
[12] Can be assigned as an option upon customer request
[13] Can be assigned as an option upon customer request
[14] Data Matrix code
SAEx 07.2 SAEx 16.2 / SAREx 07.2 SAREx 16.2
