Assembly

4. Assembly
4.1.

Mounting position

4.2.

Handwheel fitting

Information
4.3.

Multi-turn actuator: mount to valve/gearbox

4.3.1.

Output drive types B, B1

Application
Design
12
AUMA actuators can be operated without restriction in any mounting position.
For transport purposes, handwheels from a diameter of 400 mm are supplied separ-
ately.

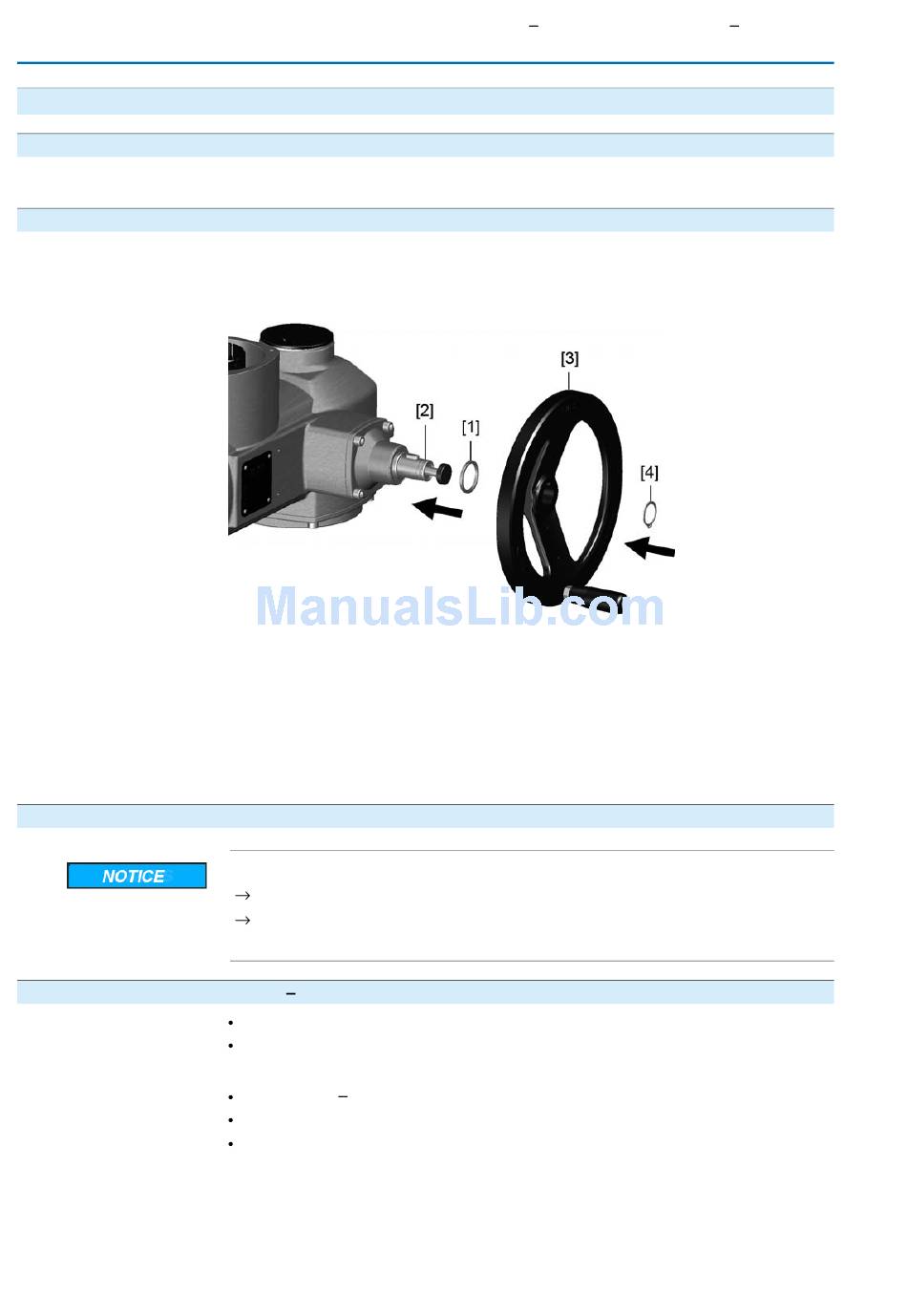

Figure 6: Handwheel
[1] Spacer
[2] Input shaft
[3] Handwheel
[4] Circlip
1. If required, fit spacer [1] onto input shaft [2].
2. Slip handwheel [3] onto input shaft.
3. Secure handwheel [3] using the circlip [4] supplied.
Danger of corrosion due to damage to paint finish and condensation!
Touch up damage to paint finish after work on the device.
After mounting, connect the device immediately to electrical mains to ensure
that heater minimises condensation.

B4 and E

For rotating, non-rising valve stem
Not capable of withstanding thrust
Output drive bore with keyway:
Types B1 B4 with bore according to EN ISO 5210
Types B and E with bore according to DIN 3210
Later change from B1 to B3, B4, or E is possible.
SAEx 07.2 SAEx 16.2 / SAREx 07.2 SAREx 16.2
